Stock Status: 1x unit in stock

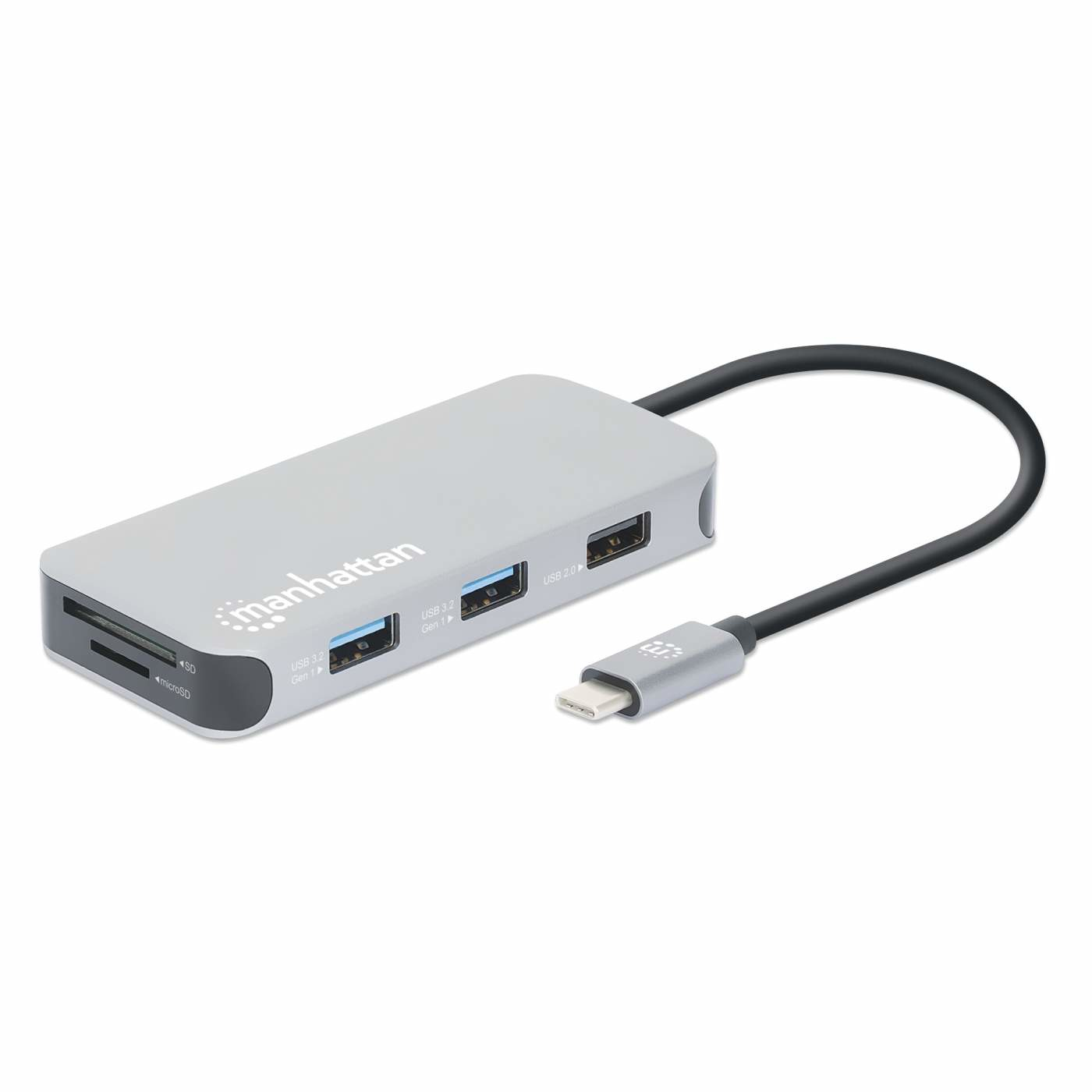

USB-C Docking Station with PD Charging - connect HDMI monitor, network, peripherals and (micro)SD cards to your device
Increase your productivity with this highly versatile docking station from Manhattan. It establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (laptops, PCs, MacBooks, Chromebooks, computers, tablets, etc.) and existing HDMI displays (monitors, TVs and projectors) for 4K at 30 Hz images in either mirror- or extended-display mode.
Connections to all your peripherals
With three USB-A ports (two with 5 Gbps and one with 480 Mbps transfer speeds) for mice, keyboards and flash drives, and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides the wired network connection that’s missing in most modern Ultrabooks™ and MacBooks®.
Up to 100 W charging power with USB-C Power Delivery (PD)
The included USB-C PD port lets you charge your notebook with power up to 100 W while simultaneously charging your other mobile devices, such as smartphones or tablets, through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers, since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.
Take your phone to the big screen
Connect any Android 9 and later smartphone that supports video output over USB-C DP Alt Mode to enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation - all from your phone.
A multiport adapter that's made to go where you go
Sturdy aluminum housing makes this multiport adapter the perfect travel companion. With its many connectivity options, it has a footprint of only 98 x 46 x 15 mm (3.86 x 1.81 x 0.59 in.), so it's small enough to fit in an outer notebook bag pocket.
Specs
| Weight & dimensions |
| Width |
46 mm |
| Depth |
98 mm |
| Height |
15 mm |
| Weight |
86 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| HDMI version |
1.4 |
| HDCP |
Yes |
| HDCP version |
1.4 |
| Power |
| Power cable length |
0.15 m |
| Packaging content |
| Manual |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 90 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Aluminium |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Data transfer rate |
5 Gbit/s |
| Housing material |
Aluminium |
| Certification |
CE
FCC
RoHS
REACH
UKCA |
| Software |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8.1 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
110 g |
Features
Manhattan USB-C Dock/Hub with Card Reader, Ports (x6): Ethernet, HDMI, USB-A (x3) and USB-C, With Power Delivery (10W) to USB-C Port (Note additional USB-C wall charger and USB-C cable needed), Cable 15cm, Aluminium, Silver, Three Year Warranty, Retail Box. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Aluminium, Compatible memory cards: MicroSD (TransFlash), Data transfer rate: 5 Gbit/s. Power cable length: 0.15 m. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8.1
Product Description
USB-C Docking Station with PD Charging - connect HDMI monitor, network, peripherals and (micro)SD cards to your device
Increase your productivity with this highly versatile docking station from Manhattan. It establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (laptops, PCs, MacBooks, Chromebooks, computers, tablets, etc.) and existing HDMI displays (monitors, TVs and projectors) for 4K at 30 Hz images in either mirror- or extended-display mode.
Connections to all your peripherals
With three USB-A ports (two with 5 Gbps and one with 480 Mbps transfer speeds) for mice, keyboards and flash drives, and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides the wired network connection that’s missing in most modern Ultrabooks™ and MacBooks®.
Up to 100 W charging power with USB-C Power Delivery (PD)
The included USB-C PD port lets you charge your notebook with power up to 100 W while simultaneously charging your other mobile devices, such as smartphones or tablets, through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers, since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.
Take your phone to the big screen
Connect any Android 9 and later smartphone that supports video output over USB-C DP Alt Mode to enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation - all from your phone.
A multiport adapter that's made to go where you go
Sturdy aluminum housing makes this multiport adapter the perfect travel companion. With its many connectivity options, it has a footprint of only 98 x 46 x 15 mm (3.86 x 1.81 x 0.59 in.), so it's small enough to fit in an outer notebook bag pocket.
