Stock Status: 1x unit in stock

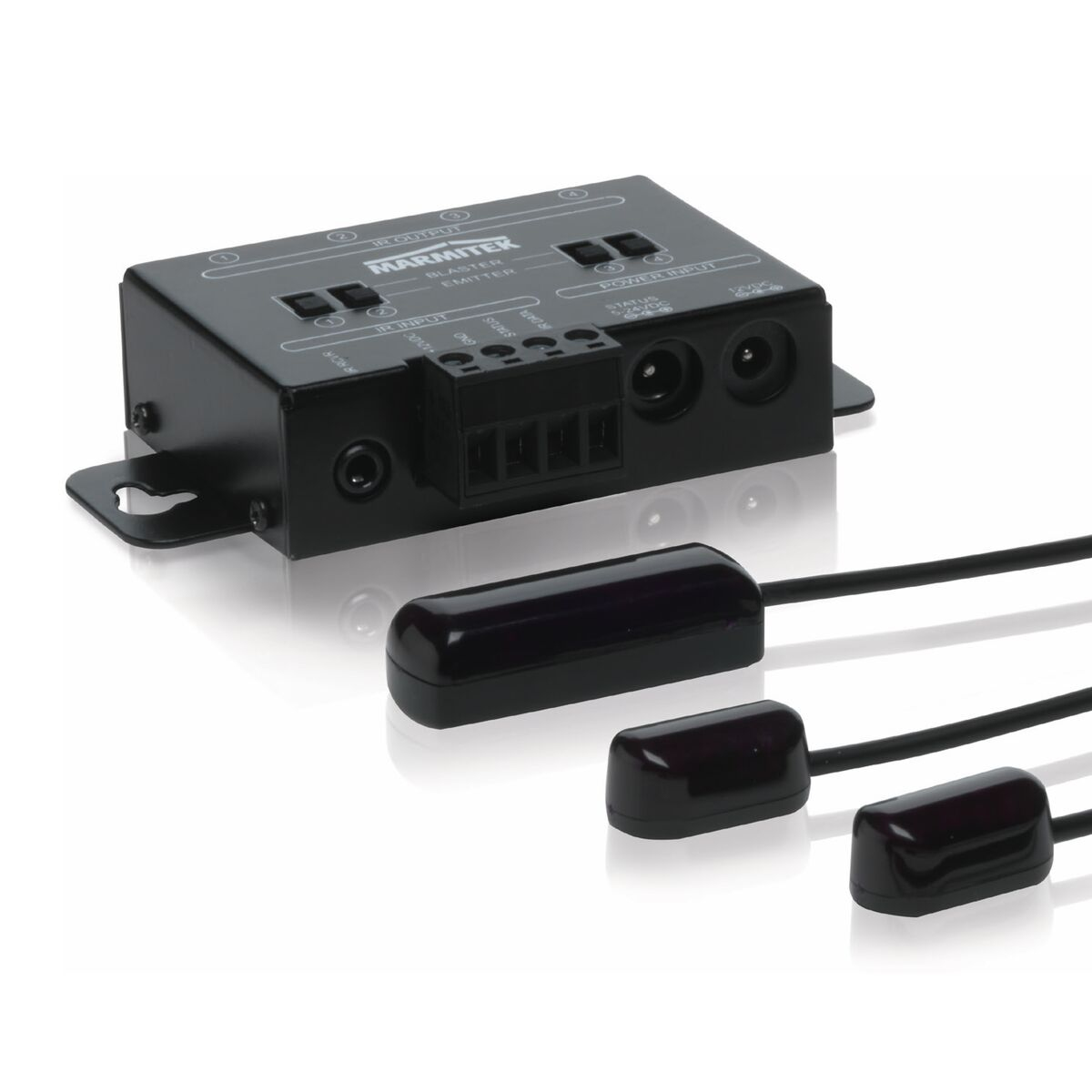

The IR Control 10 XTRA is one of our most advanced models. Extending infrared signals over long distances is not a problem. Using your existing remote control and a UTP cable, this infrared extender enables you to operate a decoder that is placed up to 300 metres away.
You place the receiver within your remote control's line of sight, having it connected to the module you placed inside the cabinet. You then connect the transmitter to the module. Your remote control's signal is transmitted via the receiver to the module, which returns the signal to the transmitter. The transmitter then 'operates' your audio visual equipment. This ensures that you can operate equipment over long distances.
Specs
| Weight & dimensions |
| Width |
95 mm |
| Depth |
46 mm |
| Height |
20 mm |
| Receiver dimensions (WxDxH) |
40 x 13 x 11 mm |
| Package width |
260 mm |
| Package depth |
65 mm |
| Package height |
190 mm |
| Packaging content |
| Number of receivers included |
1 |
| Manual |
Yes |
| Power supply included |
Yes |
| IR extender cable |
Yes |
| IR extender cable length |
3 |
| Power cable length |
1.8 m |
| Features |
| Proper use |
Universal |
| Product colour |
Black |
| LED indicators |
Yes |
| Power |
| Power source type |
AC, DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Output voltage |
12 V |
| Performance |
| Receiving range |
10 m |
| Receiving angle |
90° |
| Infrared (IR) frequency range |
30 - 60 kHz |
| IR input ports quantity |
1 |
| IR output ports quantity |
4 |
Features
Marmitek IR Control 10 XTRA - IR extender - max. 300 m. Proper use: Universal, Product colour: Black. Receiving range: 10 m, Receiving angle: 90°, Infrared (IR) frequency range: 30 - 60 kHz. Power source type: AC, DC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 95 mm, Depth: 46 mm, Height: 20 mm. Power cable length: 1.8 m
Product Description
The IR Control 10 XTRA is one of our most advanced models. Extending infrared signals over long distances is not a problem. Using your existing remote control and a UTP cable, this infrared extender enables you to operate a decoder that is placed up to 300 metres away.
You place the receiver within your remote control's line of sight, having it connected to the module you placed inside the cabinet. You then connect the transmitter to the module. Your remote control's signal is transmitted via the receiver to the module, which returns the signal to the transmitter. The transmitter then 'operates' your audio visual equipment. This ensures that you can operate equipment over long distances.
