Stock Status: 1x unit in stock

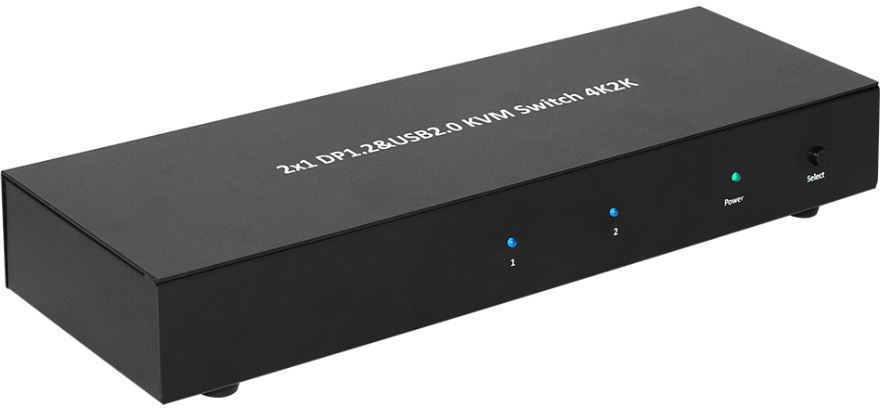

The 4K Displayport & USB 2 x 1 way KVM Switch allows you to share an HDTV or display, USB keyboard & mouse with audio and microphone between two USB and Dual head DP computers. It comes with two extra USB 2.0 ports with over-current detection and protection for additional device connections. It supports resolutions of up to 3840*2160@30Hz with video link rate up to 21.6Gbps, Dolby True HD and DTS HD Master Audio formats. Also, it features metal housing for better RF shielding and allows user to switch between devices via front push button or hotkey.
The 4K Displayport & USB 2 x 1 way KVM Switch is DP v1.2 compliant, CE, FCC regulatory approved and RoHS-compliant. It is fully compatible with a wide variety of Windows and Mac OS operating
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
DisplayPort,USB A |
| DisplayPorts quantity |
6 |
| USB 2.0 Type-B ports quantity |
2 |
| Console USB ports quantity |
4 |
| USB connector type |
USB Type-A, USB Type-B |
| Audio connections |
Y |
| Headphone outputs |
3 |
| Number of microphone inputs |
3 |
| DC-in jack |
Y |
| Weight & dimensions |
| Width |
288 mm |
| Depth |
171 mm |
| Height |
52 mm |
| Power |
| Power source |
AC |
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| DC input voltage |
5 V |
| Output voltage |
2 V |
| Packaging content |
| Manual |
Y |
| AC adapter included |
Y |
| Design |
| Rack mounting |
N |
| Product colour |
Black |
| Housing material |
Metal |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Video bandwidth |
30 Hz |
| Data transfer rate (max) |
21.6 Gbit/s |
Features
Microconnect MC-DP-KVM201K. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Metal. Power source: AC, AC input voltage: 100-240 V, AC input frequency: 50-60 Hz. Width: 288 mm, Depth: 171 mm, Height: 52 mm
Product Description
The 4K Displayport & USB 2 x 1 way KVM Switch allows you to share an HDTV or display, USB keyboard & mouse with audio and microphone between two USB and Dual head DP computers. It comes with two extra USB 2.0 ports with over-current detection and protection for additional device connections. It supports resolutions of up to 3840*2160@30Hz with video link rate up to 21.6Gbps, Dolby True HD and DTS HD Master Audio formats. Also, it features metal housing for better RF shielding and allows user to switch between devices via front push button or hotkey.
The 4K Displayport & USB 2 x 1 way KVM Switch is DP v1.2 compliant, CE, FCC regulatory approved and RoHS-compliant. It is fully compatible with a wide variety of Windows and Mac OS operating
