Stock Status: 1x unit in stock
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specs
| Weight & dimensions |
| Cable diameter |
2 mm |
| Features |
| Cable length |
1.5 m |
| Connector 1 |
LC |
| Connector 2 |
E-2000 (LSH) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Yellow |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fibre optic type |
OS2 |
| Connector polish type |
APC/UPC |
| Full duplex |
Yes |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Fiber mode structure |
Single-mode |
| Wavelengths supported |
1310,1550 nm |
| Ethernet interface type |
10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet |
| Insertion loss |
0.3 dB |
| Logistics data |
| Warranty period |
25 year(s) |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Certification |
| Compliance certificates |
RoHS |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Sustainability |
| Doesn't contain |
Halogen |
| Sustainability compliance |
Yes |
Features

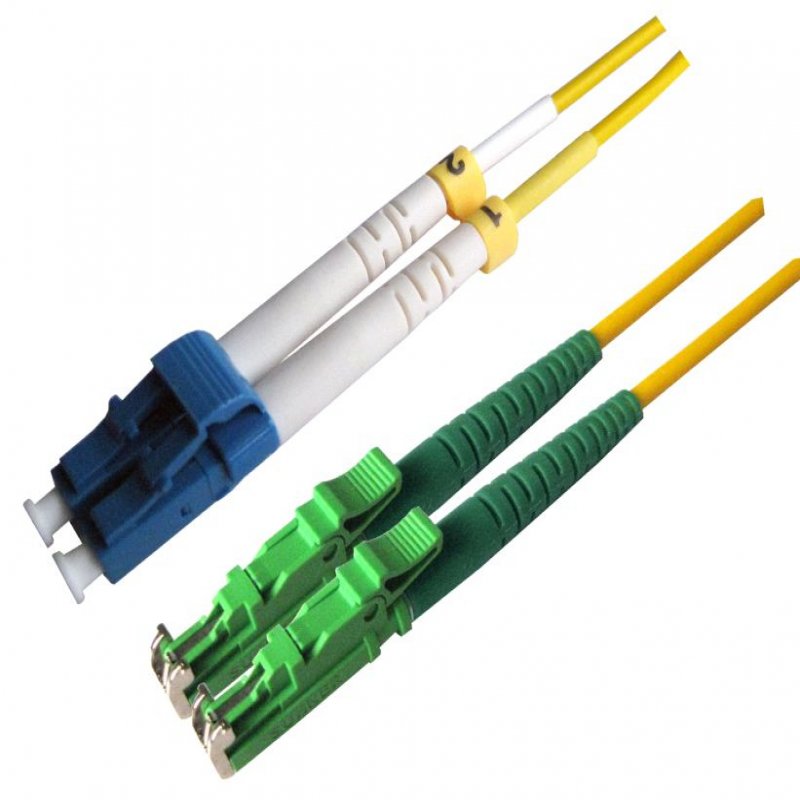

Microconnect FIB4720015. Cable length: 1.5 m, Fibre optic type: OS2, Connector 1: LC, Connector 2: E-2000 (LSH), Core diameter: 9 µm, Full duplex
Product Description
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
