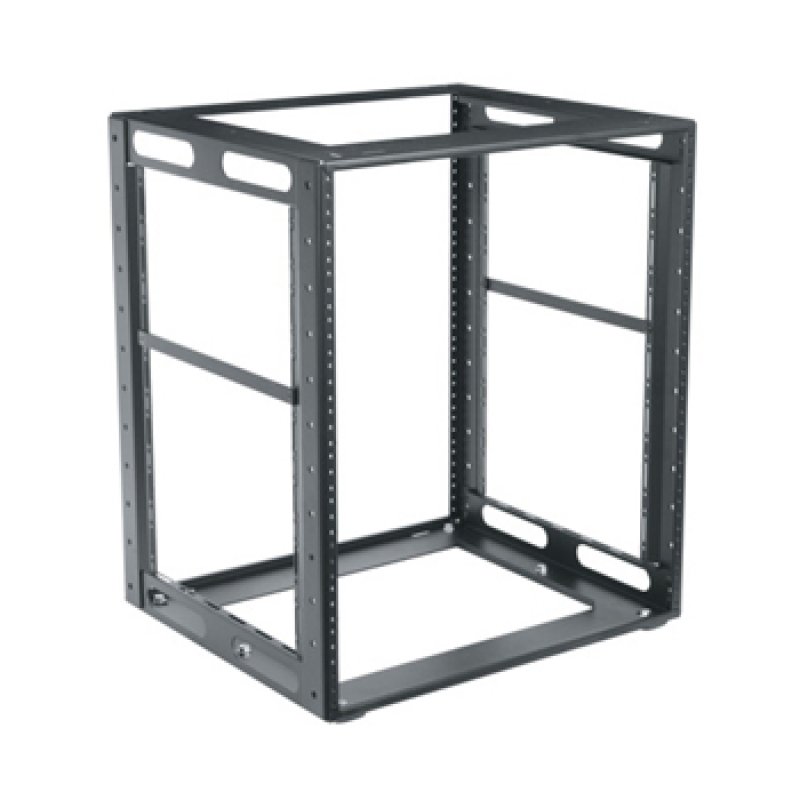

EIA compliant 19” cabinet frame rack shall be Middle Atlantic Products model #CFR-10-18. Overall dimensions shall be 19.25” W x 18.44” H with a useable depth of 18”. Rack shall have a weight capacity of 250 lbs. Rack shall have 10 rackspaces. Rack shall be constructed of the following materials: top and bottom shall be 16-gauge steel, rackrail shall be constructed of 11-gauge steel with tapped 10-32 mounting holes in universal EIA spacing. Rack shall be finished in a durable black powdercoat. Rack shall include two adjustable side mounted horizontal lacing bars for enhanced cable management. Cabinet frame rack shall be UL listed in the US and Canada. Cabinet frame rack shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Cabinet frame rack shall be RoHS EU Directive 2002/95/EC compliant. Cabinet frame rack shall be manufactured by an ISO 9001 and ISO 14001 registered company. Cabinet frame rack shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.
Specs
| Weight & dimensions |
| Size (imperial) |
45.7 cm (18") |
| Width |
489 mm |
| Depth |
457 mm |
| Height |
468 mm |
| Inner depth |
45.7 cm |
| Inner height |
44.5 cm |
| Other features |
| Package length |
55.9 cm |
| Features |
| Rack capacity |
10U |
| Type |
Rack frame |
| Maximum weight capacity |
113 kg |
| Product colour |
Black |
| Material |
Steel |
| Certification |
UL, Greenguard |
| Logistics data |
| Harmonized System (HS) code |
85381000 |
| Packaging data |
| Package width |
508 mm |
| Package height |
533.4 mm |
| Package weight |
11.1 kg |
| Technical details |
| Compliance certificates |
RoHS |
Features
Middle Atlantic Products CFR Series Rack, CFR-10-18. Type: Rack frame, Rack capacity: 10U, Maximum weight capacity: 113 kg, Product colour: Black
Product Description
EIA compliant 19” cabinet frame rack shall be Middle Atlantic Products model #CFR-10-18. Overall dimensions shall be 19.25” W x 18.44” H with a useable depth of 18”. Rack shall have a weight capacity of 250 lbs. Rack shall have 10 rackspaces. Rack shall be constructed of the following materials: top and bottom shall be 16-gauge steel, rackrail shall be constructed of 11-gauge steel with tapped 10-32 mounting holes in universal EIA spacing. Rack shall be finished in a durable black powdercoat. Rack shall include two adjustable side mounted horizontal lacing bars for enhanced cable management. Cabinet frame rack shall be UL listed in the US and Canada. Cabinet frame rack shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Cabinet frame rack shall be RoHS EU Directive 2002/95/EC compliant. Cabinet frame rack shall be manufactured by an ISO 9001 and ISO 14001 registered company. Cabinet frame rack shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.
