Stock Status: 1x unit in stock

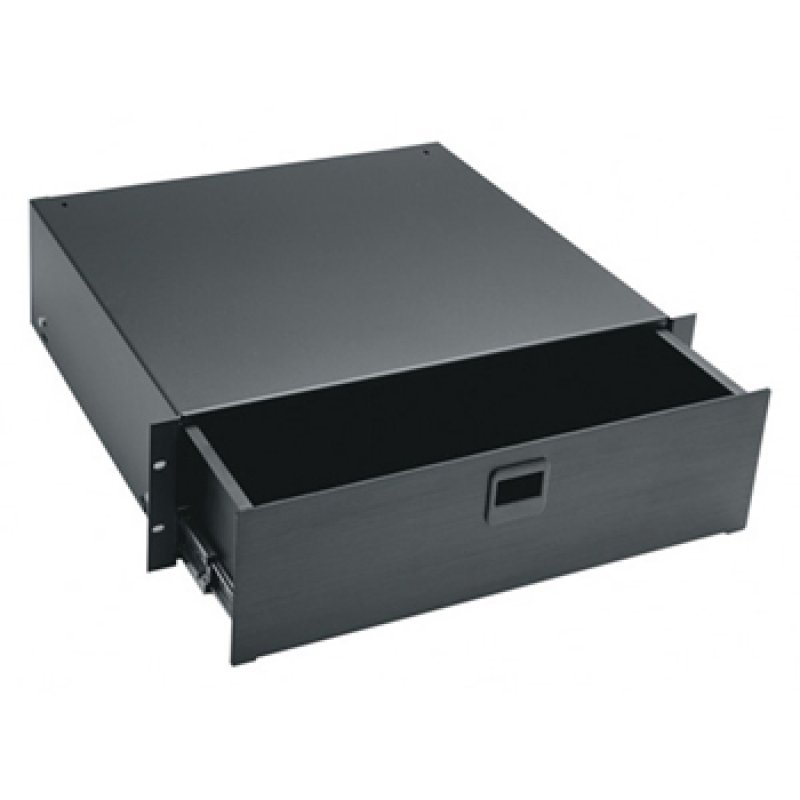

EIA compliant 19” rackmount drawer shall be Middle Atlantic Products model # D3. Drawer shall have an overall height of 5-1/4”, and useable depth of 14-1/2”. Drawer base shall be 20-gauge steel, top and sides shall be 16-gauge steel. Drawer faceplate shall be .090” thick aluminum with a black brushed & anodized finish. Drawer shall use full extension, ball bearing slides. Grommet shall be provided for safely passing cables through the cable entry point at the rear of the drawer on 2, 3 and 4 space models. 2, 3 and 4 space drawers shall include a no-slip drawer mat. Drawer shall have a 50 lb. weight capacity. Drawer shall be warrantied to be free from defects in materials or workmanship under normal use and conditions for a period of three years. Drawer shall be UL Listed in the US and Canada. Drawer shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Drawer shall be RoHS EU Directive 2002/95/EC compliant. Drawer shall be manufactured by an ISO 9001 and ISO 14001 registered company.
Specs
| Weight & dimensions |
| Width |
403 mm |
| Depth |
387 mm |
| Height |
133 mm |
| Features |
| Type |
Drawer unit |
| Product colour |
Black |
| Housing material |
Steel |
| Maximum weight capacity |
22680 kg |
| Rack capacity |
3U |
| Compatible rack width |
19" |
| Certification |
Greenguard |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
85389099 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
533.4 mm |
| Package depth |
508 mm |
| Package height |
152.4 mm |
| Package weight |
8.03 kg |
Features
Middle Atlantic Products D3. Type: Drawer unit, Product colour: Black, Housing material: Steel. Width: 403 mm, Depth: 387 mm, Height: 133 mm. Quantity per pack: 1 pc(s), Package width: 533.4 mm, Package depth: 508 mm
Product Description
EIA compliant 19” rackmount drawer shall be Middle Atlantic Products model # D3. Drawer shall have an overall height of 5-1/4”, and useable depth of 14-1/2”. Drawer base shall be 20-gauge steel, top and sides shall be 16-gauge steel. Drawer faceplate shall be .090” thick aluminum with a black brushed & anodized finish. Drawer shall use full extension, ball bearing slides. Grommet shall be provided for safely passing cables through the cable entry point at the rear of the drawer on 2, 3 and 4 space models. 2, 3 and 4 space drawers shall include a no-slip drawer mat. Drawer shall have a 50 lb. weight capacity. Drawer shall be warrantied to be free from defects in materials or workmanship under normal use and conditions for a period of three years. Drawer shall be UL Listed in the US and Canada. Drawer shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Drawer shall be RoHS EU Directive 2002/95/EC compliant. Drawer shall be manufactured by an ISO 9001 and ISO 14001 registered company.
