Stock Status: 1x unit in stock

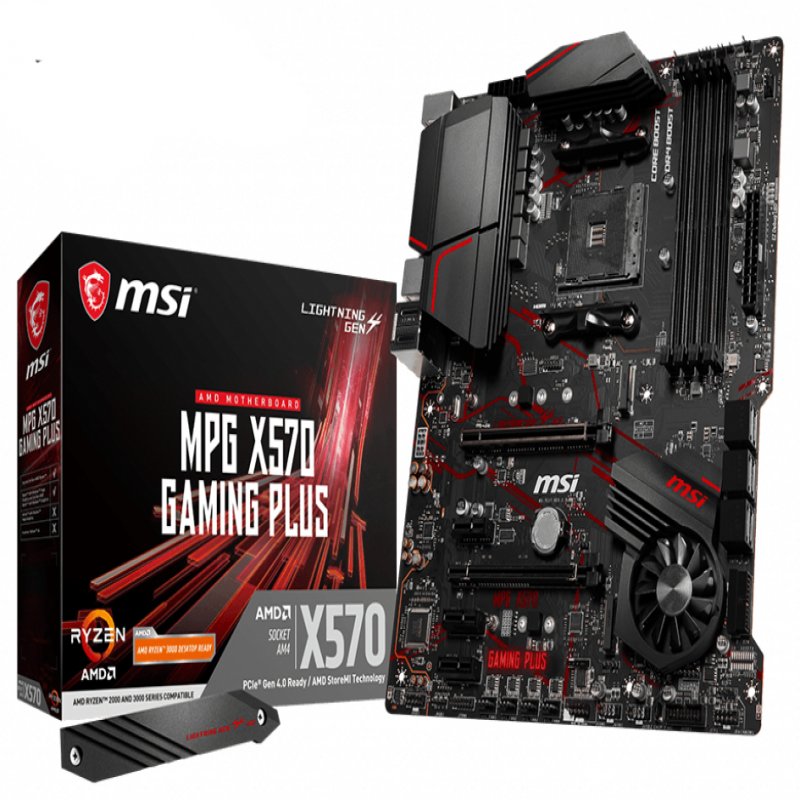

Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Extended Heatsink Design
MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Gen4 solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.
Audio Boost 4
Isolated audio with a high quality audio processor for the most immersive gaming experience.
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Specs
| Weight & dimensions |
| Width |
304 mm |
| Depth |
243 mm |
| Memory |
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
4 |
| Maximum internal memory |
128 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC |
Y |
| Non-ECC |
Y |
| Supported memory clock speeds |
1866,2133,2400,2666 MHz |
| Unbuffered memory |
Y |
| Processor |
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM4 |
| Compatible processor series |
2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
| Maximum number of SMP processors |
1 |
| Back panel I/O ports |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| PS/2 ports quantity |
1 |
| HDMI version |
1.4 |
| S/PDIF out port |
Y |
| Digital audio optical out |
1 |
| Internal I/O |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
6 |
| Front panel audio connector |
Y |
| Front panel connector |
Y |
| ATX Power connector (24-pin) |
Y |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
4 |
| Chassis intrusion connector |
Y |
| TPM connector |
Y |
| Serial port headers |
1 |
| 12V power connector |
Y |
| RGB LED pin header |
Y |
| Networking |
| Wi-Fi |
N |
| Ethernet LAN |
Y |
| Ethernet interface type |
Gigabit Ethernet |
| LAN controller |
Realtek RTL8111H |
| Expansion slots |
| PCI Express x1 (Gen 3.x) slots |
3 |
| Number of M.2 (M) slots |
2 |
| Packaging content |
| Cables included |
SATA |
| Drivers included |
Y |
| BIOS |
| Clear CMOS jumper |
Y |
| Other features |
| Quick installation guide |
Y |
| Graphics |
| Parallel processing technology support |
2-Way CrossFireX |
| Maximum resolution |
4096 x 2160 pixels |
| Features |
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X570 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC1220 |
| Number of mounting holes |
9 |
| Windows operating systems supported |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
| Harmonized System (HS) code |
84733020 |
| Storage controllers |
| Supported storage drive interfaces |
SATA III |
| RAID levels |
0, 1, 10 |
Features
MSI MPG X570 Gaming Plus. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Product Description
Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Extended Heatsink Design
MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Gen4 solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.
Audio Boost 4
Isolated audio with a high quality audio processor for the most immersive gaming experience.
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
