Stock Status: 1x unit in stock

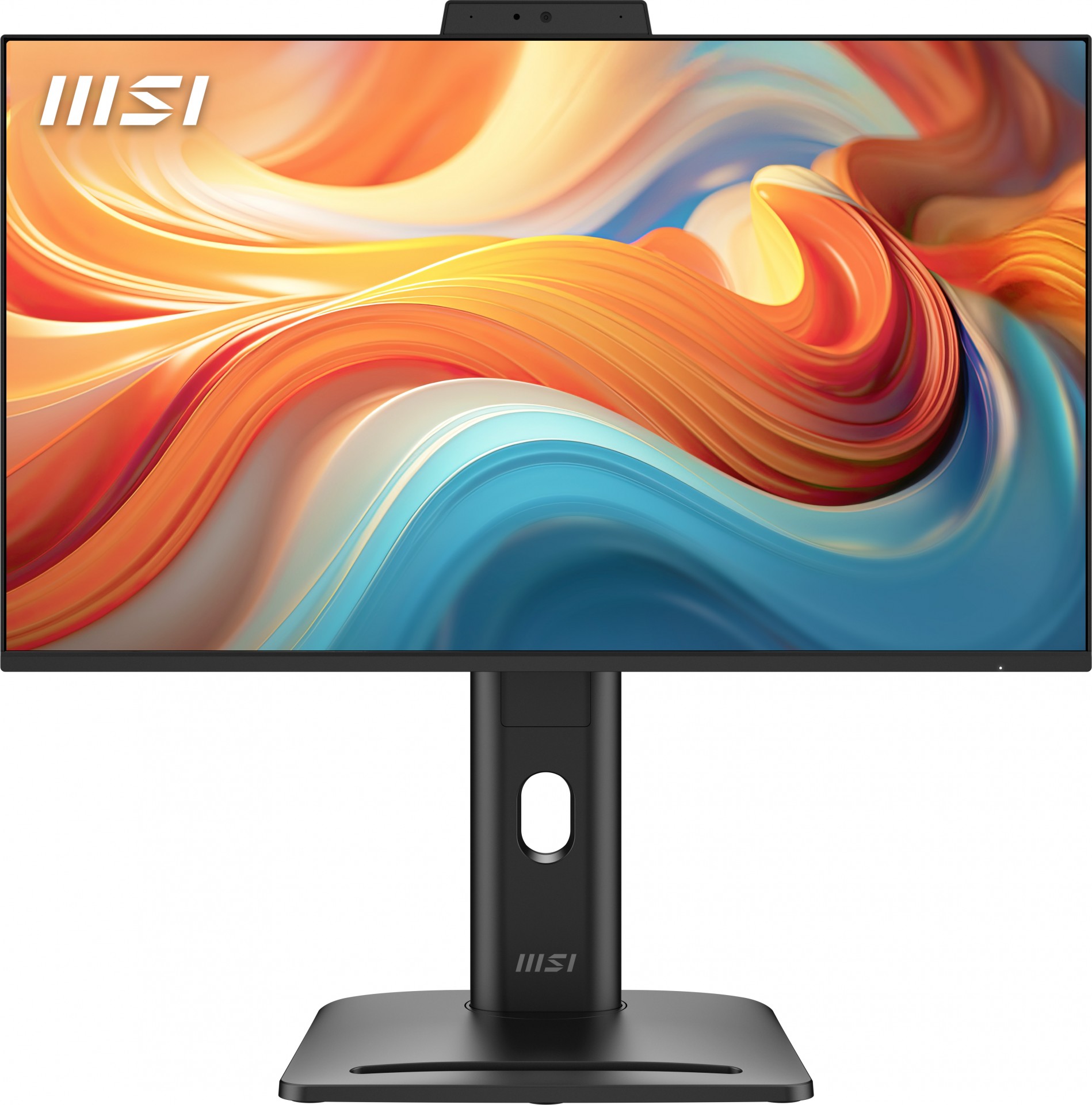

Embrace Sustainability with PRO MP245PDG E14
The PRO MP245PDG E14 docking monitor features a sharp 23.8" FHD (1920 x 1080) IPS panel with daisy chain support. It includes a USB Type-C dock with 98W power delivery, RJ45 Ethernet and display signal through a single cable.
The Eco-friendly monitor is meticulously designed to meet stringent environmental standards, ensuring a cleaner and greener world.
The daisy chain support enables dual monitors to connect in series with a single cable, minimizing the number of ports needed.
Daisy Chain
Simplify your setup with daisy chain support, enabling dual monitors to connect in series with a single cable, minimizing the number of ports needed. Reduce clutter and enhance your workspace for a smooth, multi-monitor experience.
*NOTE:The Daisy Chain function requires a USB Type-C cable as the video output source. A Display Port cable will be needed to connect the monitors completing the daisy chain.
Docking Monitor
One USB Type-C cable delivers 98W charging, display, data transfer, and Ethernet, simplifying your cables and saving space.
LAN Port
Provides a stable wired internet connection for laptops without a LAN port via the monitor’s built-in LAN port using USB-C.
KVM
The KVM function allows seamless device switching, offering an efficient solution for managing multiple devices from one monitor.
G Sensor
G-sensor technology automatically adjusts screen orientation with movement, enabling seamless switching between landscape and portrait modes for an intuitive, comfortable experience.
Built-in speakers & Webcam
Two built-in speakers (2W), built-in webcam and digital microphone enables a high-quality online conferences, or video editing without requiring external devices.
PIP/PBP Function (PI Software)
Elevate your multitasking capabilities with PRO MP245PDG E14 monitor, featuring advanced Picture-in-Picture (PIP) and Picture-by-Picture (PBP) functionalities. Designed to enhance your workflow and boost productivity, these features allow you to manage multiple tasks seamlessly.
144Hz Game Ready
Experience the full capabilities of a high refresh rate 144 Hz monitor. Enjoy seamless multitasking, ultra-smooth gameplay, and fluid AI-generated visuals. Ideal for creators, gamers, and innovators alike, this level of performance delivers a visual experience that’s both vivid and precise.
HDR Ready can be enabled to provide enhanced contrast.
Specs
| Weight & dimensions |
| Width (with stand) |
539 mm |
| Depth (with stand) |
49 mm |
| Height (with stand) |
314 mm |
| Weight (with stand) |
5.83 kg |
| Width (without stand) |
539 mm |
| Depth (without stand) |
49 mm |
| Height (without stand) |
314 mm |
| Power |
| Energy efficiency class (SDR) |
E |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Energy consumption (HDR) per 1000 hours |
28 kWh |
| Power consumption (standby) |
0.5 W |
| Power consumption (off) |
0.3 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power supply type |
Internal |
| Energy efficiency scale |
A to G |
| Display |
| Display diagonal |
60.5 cm (23.8") |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LCD |
| Touchscreen |
No |
| HD type |
Full HD |
| Panel type |
IPS |
| Response time |
4 ms |
| Screen shape |
Flat |
| Maximum refresh rate |
144 Hz |
| Display number of colours |
16.7 million colours |
| Display brightness (typical) |
250 cd/m² |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time (MPRT) |
1 ms |
| Anti-glare screen |
Yes |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Supported video modes |
1080p |
| Refresh rate optimizor |
Yes |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Horizontal scan range |
52.85 - 158.54 kHz |
| Vertical scan range |
48 - 144 Hz |
| Viewable size, horizontal |
52.7 cm |
| Viewable size, vertical |
29.6 cm |
| Display diagonal (metric) |
60 cm |
| High Dynamic Range (HDR) supported |
Yes |
| Colour depth |
8 bit |
| Colour gamut standard |
DCI-P3 |
| Colour gamut |
86% |
| sRGB coverage (typical) |
111% |
| Adobe RGB coverage |
86% |
| DCI-P3 coverage |
86% |
| Ports & interfaces |
| Built-in USB hub |
Yes |
| HDMI |
Yes |
| Headphone out |
Yes |
| Number of USB Type-B upstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
98 W |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0b |
| DisplayPorts quantity |
2 |
| DisplayPort out quantity |
1 |
| DisplayPort version |
1.2a |
| Headphone outputs |
1 |
| HDCP |
Yes |
| HDCP version |
1.4 |
| Ergonomics |
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Height adjustment |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Wall mountable |
Yes |
| Cable lock slot type |
Kensington |
| Adjustable height (max) |
13 cm |
| Pivot |
Yes |
| Pivot angle |
-90 - 90° |
| Swivelling |
Yes |
| Swivel angle range |
-45 - 45° |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 20° |
| Other features |
| Compliance certificates |
CB, CE, UKCA |
| Certification |
CB/CE |
| Design |
| Market positioning |
Business |
| Product colour |
Black |
| Housing material |
Plastic |
| Performance |
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| VESA Adaptive Sync support |
Yes |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| Multimedia |
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
| RMS rated power |
4 W |
| Packaging data |
| Package width |
600 mm |
| Package depth |
125 mm |
| Package height |
508 mm |
| Package weight |
6.36 kg |
| Package type |
Box |
| Packaging content |
| Stand included |
Yes |
| Cables included |
HDMI, Power |
| Quick start guide |
Yes |
| Network |
| Wi-Fi |
No |
| Wi-Fi Direct |
No |
| Bluetooth |
No |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Silver, Forest Stewardship Council (FSC) |
Features
MSI Pro MP245PDG E14. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black
Product Description
Embrace Sustainability with PRO MP245PDG E14
The PRO MP245PDG E14 docking monitor features a sharp 23.8" FHD (1920 x 1080) IPS panel with daisy chain support. It includes a USB Type-C dock with 98W power delivery, RJ45 Ethernet and display signal through a single cable.
The Eco-friendly monitor is meticulously designed to meet stringent environmental standards, ensuring a cleaner and greener world.
The daisy chain support enables dual monitors to connect in series with a single cable, minimizing the number of ports needed.
Daisy Chain
Simplify your setup with daisy chain support, enabling dual monitors to connect in series with a single cable, minimizing the number of ports needed. Reduce clutter and enhance your workspace for a smooth, multi-monitor experience.
*NOTE:The Daisy Chain function requires a USB Type-C cable as the video output source. A Display Port cable will be needed to connect the monitors completing the daisy chain.
Docking Monitor
One USB Type-C cable delivers 98W charging, display, data transfer, and Ethernet, simplifying your cables and saving space.
LAN Port
Provides a stable wired internet connection for laptops without a LAN port via the monitor’s built-in LAN port using USB-C.
KVM
The KVM function allows seamless device switching, offering an efficient solution for managing multiple devices from one monitor.
G Sensor
G-sensor technology automatically adjusts screen orientation with movement, enabling seamless switching between landscape and portrait modes for an intuitive, comfortable experience.
Built-in speakers & Webcam
Two built-in speakers (2W), built-in webcam and digital microphone enables a high-quality online conferences, or video editing without requiring external devices.
PIP/PBP Function (PI Software)
Elevate your multitasking capabilities with PRO MP245PDG E14 monitor, featuring advanced Picture-in-Picture (PIP) and Picture-by-Picture (PBP) functionalities. Designed to enhance your workflow and boost productivity, these features allow you to manage multiple tasks seamlessly.
144Hz Game Ready
Experience the full capabilities of a high refresh rate 144 Hz monitor. Enjoy seamless multitasking, ultra-smooth gameplay, and fluid AI-generated visuals. Ideal for creators, gamers, and innovators alike, this level of performance delivers a visual experience that’s both vivid and precise.
HDR Ready can be enabled to provide enhanced contrast.
