Stock Status: 1x unit in stock

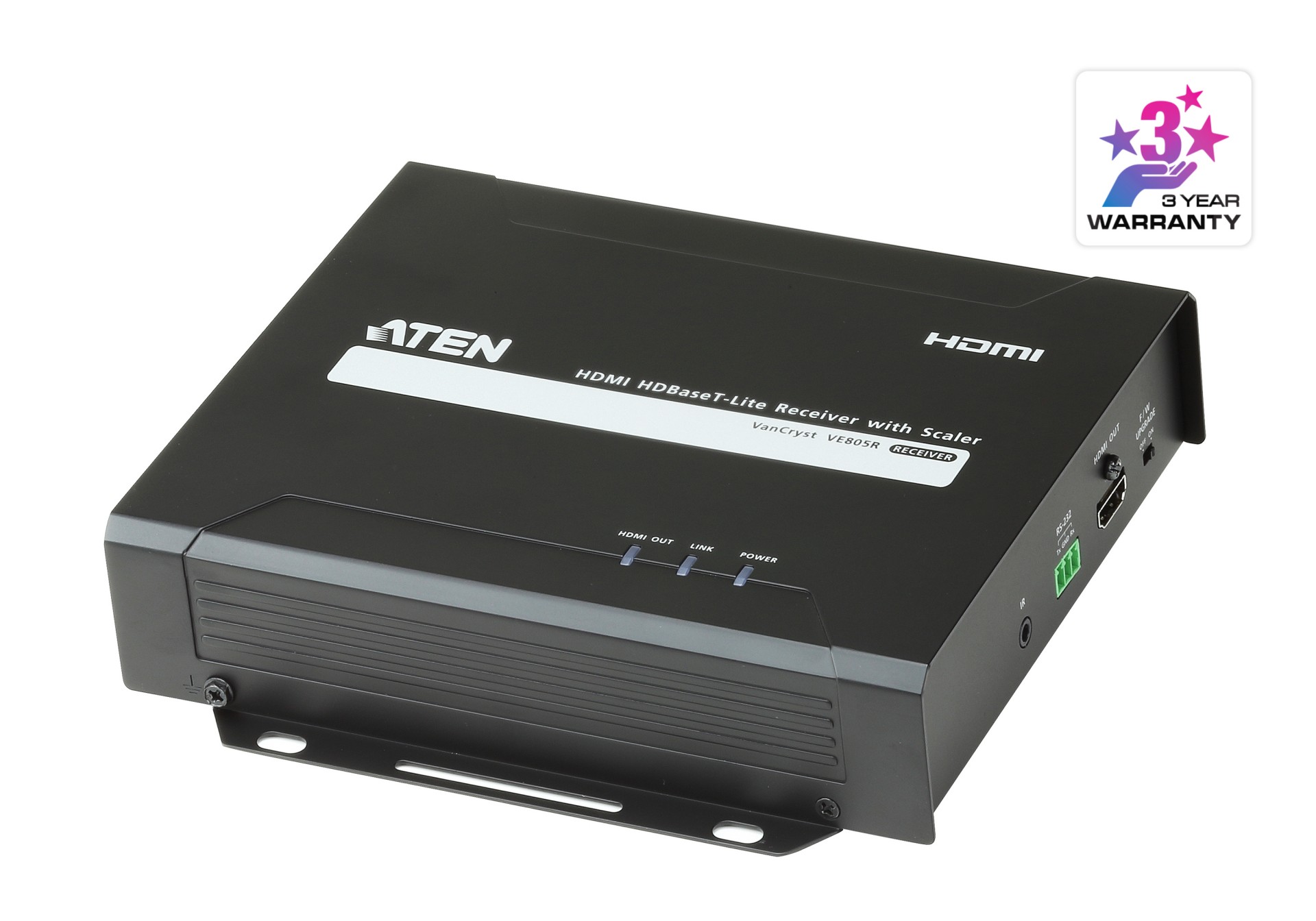

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
Specs
| Ports & interfaces |
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
1.4 |
| RS-232 input ports |
1 |
| Remote (IR) input |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Receiver dimensions (WxDxH) |
169.2 x 181.8 x 42 mm |
| Receiver weight |
830 g |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source type |
DC |
| Operating voltage |
5 V |
| Power consumption (typical) |
9.5 W |
| Features |
| Type |
AV receiver |
| Maximum resolution |
1920 x 1080 pixels |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Maximum transfer distance |
70 m |
| RS-232 pass-through |
Yes |
| Supported video modes |
1080p |
| Bandwidth |
225 MHz |
| On/off switch |
Yes |
| HDCP |
Yes |
| Material |
Metal |
| Wall mountable |
Yes |
| Impedance |
100 Ω |
| HDCP version |
1.4 |
| Product colour |
Black |
Features
ATEN VE805R-AT-E. Type: AV receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Power source type: DC, Operating voltage: 5 V, Power consumption (typical): 9.5 W. Receiver dimensions (WxDxH): 169.2 x 181.8 x 42 mm, Receiver weight: 830 g. Quantity per pack: 1 pc(s)
Product Description
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
