Stock Status: 1x unit in stock
Meticulously powerful signage

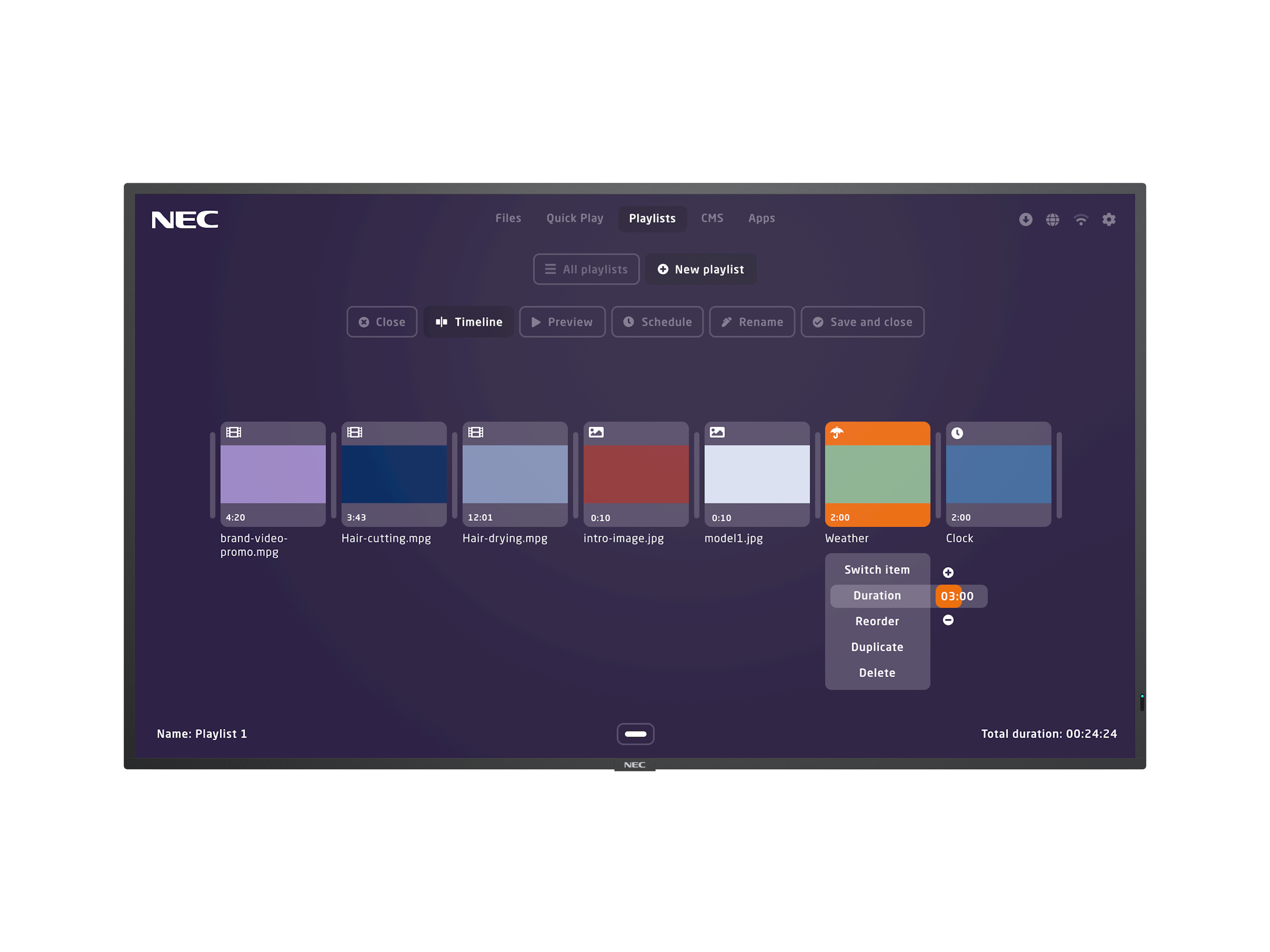

When true-to-life colour rendition is essential, the MultiSync MA Series’ advanced feature set delivers calibrated precision, without compromise. For specialist applications, the wide colour gamut panel, SpectraView engine technology and 8K signal processing, positions the MultiSync MA-MPi4 series at the high end of professional content delivery. Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.
Benefits
- Wide colour gamut – high-performance panel technology delivers a wider spectrum of colours for a superb visual experience
- Intuitive Plug & Play solution – even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences
- Install third party software – expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer
- Everything under control – one single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control.
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Specs
| Weight & dimensions |
| Display width |
968.2 mm |
| Display depth |
67.1 mm |
| Display height |
561 mm |
| Display weight |
18.5 kg |
| Width (with stand) |
1120 mm |
| Depth (with stand) |
203 mm |
| Height (with stand) |
700 mm |
| Weight (with stand) |
23 kg |
| Display |
| Display diagonal |
109.2 cm (43") |
| Display technology |
LCD |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Panel type |
IPS |
| LED backlighting type |
Edge-LED |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.073 billion colours |
| Display diagonal (metric) |
108 cm |
| Horizontal scan range |
26 - 91.1 kHz |
| Vertical scan range |
23 - 86 Hz |
| Native refresh rate |
60 Hz |
| Haze rate |
28% |
| Packaging data |
| Package width |
1120 mm |
| Package depth |
203 mm |
| Package height |
700 mm |
| Package weight |
23 kg |
| Power |
| Power consumption (typical) |
110 W |
| Power consumption (standby) |
2 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
85 kWh |
| Energy consumption (HDR) per 1000 hours |
84 kWh |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
2 |
| DVI port |
No |
| DisplayPorts quantity |
2 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| DisplayPorts in |
2 |
| DisplayPorts out |
1 |
| USB ports quantity |
3 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
100 Mbit/s |
| RS-232 interface |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Design |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
1.56 cm |
| Bezel width (side) |
1.1 cm |
| Mounting type |
Wall |
| Performance |
| Purpose |
Commercial |
| Ambient light sensor |
Yes |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| International Protection (IP) code |
IP5X, IP2X |
| Computer system |
| Built-in processor |
Yes |
| Processor family |
ARM Cortex |
| Processor model |
A72 |
| Processor frequency |
1.5 GHz |
| Internal memory |
32 GB |
| Video formats supported |
AVI, H.265, M4V, MKV, MOV, MP4, MPEG, MPEG2, MPG, VOB, VP8, VP9, WMV |
| Audio formats supported |
AAC, AC3, MP3 |
| Image formats supported |
JPEG, JPG, PNG |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, HDMI |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
Features
NEC MultiSync MA431-MPi4. Display diagonal: 109.2 cm (43"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
Product Description
Meticulously powerful signage
When true-to-life colour rendition is essential, the MultiSync MA Series’ advanced feature set delivers calibrated precision, without compromise. For specialist applications, the wide colour gamut panel, SpectraView engine technology and 8K signal processing, positions the MultiSync MA-MPi4 series at the high end of professional content delivery. Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.
Benefits
- Wide colour gamut – high-performance panel technology delivers a wider spectrum of colours for a superb visual experience
- Intuitive Plug & Play solution – even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences
- Install third party software – expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer
- Everything under control – one single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control.
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
