Stock Status: 1x unit in stock
Functionality you need, at the price you want
A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.
An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.
For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.
Specs
| Weight & dimensions |
| Display width |
726.6 mm |
| Display depth |
67.1 mm |
| Display height |
422.3 mm |
| Display weight |
5.3 kg |
| Display |
| Display diagonal |
81.3 cm (32") |
| Display technology |
LCD |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
400 cd/m² |
| HD type |
Full HD |
| Touchscreen |
No |
| Panel type |
IPS |
| LED backlight |
Yes |
| LED backlighting type |
Direct-LED |
| Native aspect ratio |
16:9 |
| Response time |
9 ms |
| Contrast ratio (typical) |
1100:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.364 x 0.364 mm |
| Active display area (W x H) |
698 x 393 mm |
| Display diagonal (metric) |
80 cm |
| Horizontal scan range |
15 - 136 kHz |
| Vertical scan range |
24 - 75 Hz |
| Native refresh rate |
60 Hz |
| Haze rate |
28% |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
10 W |
| Power |
| Power consumption (typical) |
33 W |
| Power consumption (standby) |
2 W |
| Input voltage |
100-240 V |
| Energy efficiency class (SDR) |
F |
| Energy efficiency class (HDR) |
E |
| Energy consumption (SDR) per 1000 hours |
27 kWh |
| Energy consumption (HDR) per 1000 hours |
27 kWh |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Ports & interfaces |
| HDMI ports quantity |
6 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| HDMI input ports quantity |
3 |
| HDMI output ports quantity |
3 |
| VGA (D-Sub) input ports |
1 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| USB connector type |
USB Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
100 Mbit/s |
| Audio (L/R) out |
1 |
| PC Audio in |
Yes |
| Number of speaker outputs |
1 |
| RS-232 interface |
Yes |
| Remote (IR) input |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
5 - 85% |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Screen shape |
Flat |
| Panel mounting interface |
100 x 100 mm |
| Bezel width (bottom) |
1.39 cm |
| Bezel width (side) |
1.25 cm |
| Bezel width (top) |
1.25 cm |
| Performance |
| Purpose |
Universal |
| Ambient light sensor |
Yes |
| Operating hours (hours/days) |
16/7 |
| Computer system |
| Video formats supported |
MP4, MPG, TS |
| Audio formats supported |
MP3 |
| Image formats supported |
JPG |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, HDMI |
Features

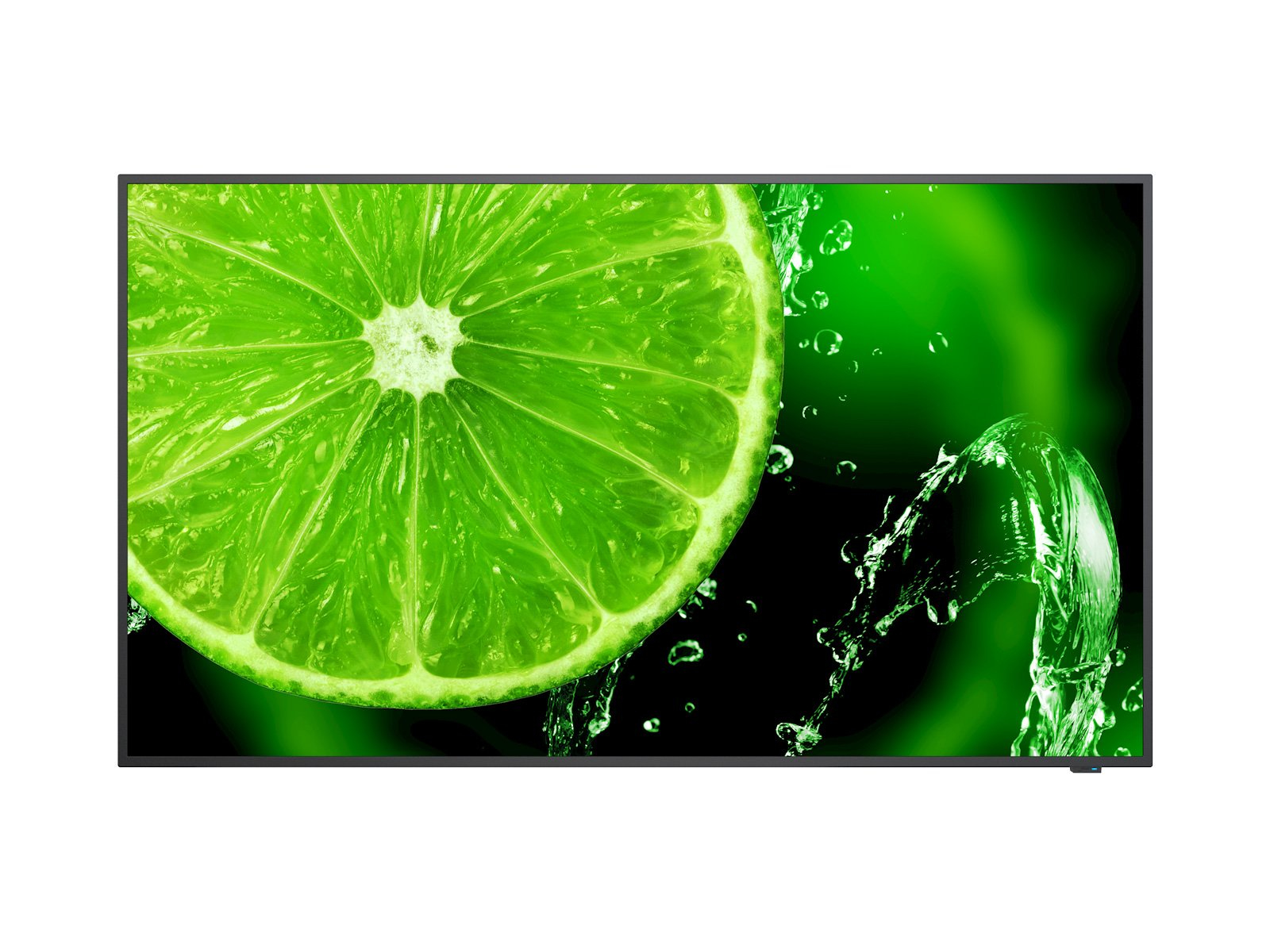

NEC MultiSync E328-2. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD. Operating hours (hours/days): 16/7. Product colour: Black
Product Description
Functionality you need, at the price you want
A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.
An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.
For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.
