Stock Status: 1x unit in stock

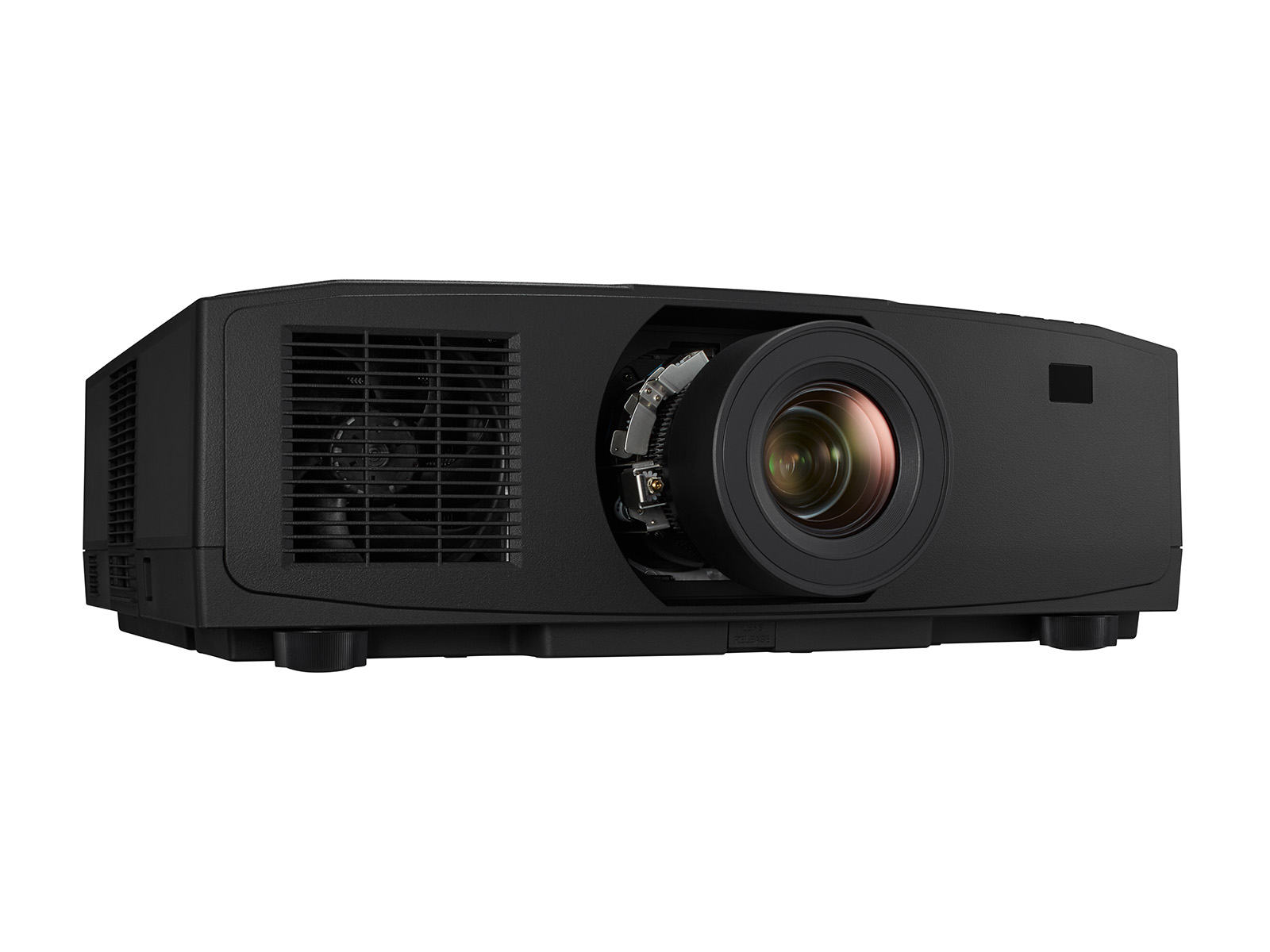

Cost-effective LCD-based laser projector with interchangeable lenses
A highly economical projection solution, the PV710UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.
3LCD technology generates brilliantly vivid colour, which, at 7100 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.
The PV710UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV710UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.
Specs
| Weight & dimensions |
| Weight |
11.2 kg |
| Width |
499 mm |
| Depth |
407 mm |
| Height |
164 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Projector |
| Projector brightness |
7100 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
3000000:1 |
| Native aspect ratio |
16:10 |
| Smart projector |
No |
| Screen size compatibility |
1016 - 12700 mm (40 - 500") |
| Supported aspect ratios |
16:10 |
| Projection distance |
0.7 - 50.9 m |
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-30 - 30° |
| Vertical synchronization (min) |
50000 kHz |
| Vertical synchronization (max) |
120000 kHz |
| Video |
| Analog signal format system |
Not supported |
| Full HD |
No |
| 3D |
No |
| Supported graphics resolutions |
1280 x 768 (WXGA), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Display |
| Built-in display |
No |
| Lens system |
| Focus |
Manual |
| Zoom capability |
Yes |
| Zoom type |
Manual |
| Horizontal lens shift range |
-20 - 20% |
| Vertical lens shift range |
-50 - 10% |
| Power |
| Power source |
AC |
| Power consumption (typical) |
434 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
4 |
| Composite video in |
0 |
| Component video (YPbPr/YCbCr) in |
0 |
| DVI port |
No |
| Audio (L/R) in |
0 |
| Serial interface type |
RS-232 |
| HDMI connector type |
Full-size |
| HDBaseT port |
Yes |
| USB 2.0 ports quantity |
1 |
| USB 2.0 Type-A ports quantity |
1 |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| PC in (D-Sub) |
Yes |
| Networking |
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Remote control type |
IR |
| Cables included |
Power |
| Manual |
Yes |
| Design |
| Product type |
Standard throw projector |
| Market positioning |
Presentation |
| Product colour |
Black |
| Multimedia |
| Built-in speaker(s) |
No |
| Features |
| Noise level |
40 dB |
| Interactive |
No |
| HDCP |
Yes |
| Certification |
CE; EAC; ErP; RoHS; TUEV Type Approved |
| Light source |
| Light source type |
Lamp |
| Service life of light source |
20000 h |
| Light source brightness |
7400 lm |
| Logistics data |
| Quantity per pack |
1 pc(s) |
Features
NEC PV710UL. Projector brightness: 7100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 20000 h, Light source brightness: 7400 lm. Focus: Manual, Zoom type: Manual, Horizontal lens shift range: -20 - 20%. Supported graphics resolutions: 1280 x 768 (WXGA), 1920 x 1200 (WUXGA), 3840 x 2160. Serial interface type: RS-232, HDMI connector type: Full-size
Product Description
Cost-effective LCD-based laser projector with interchangeable lenses
A highly economical projection solution, the PV710UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.
3LCD technology generates brilliantly vivid colour, which, at 7100 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.
The PV710UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV710UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.
