Stock Status: 1x unit in stock

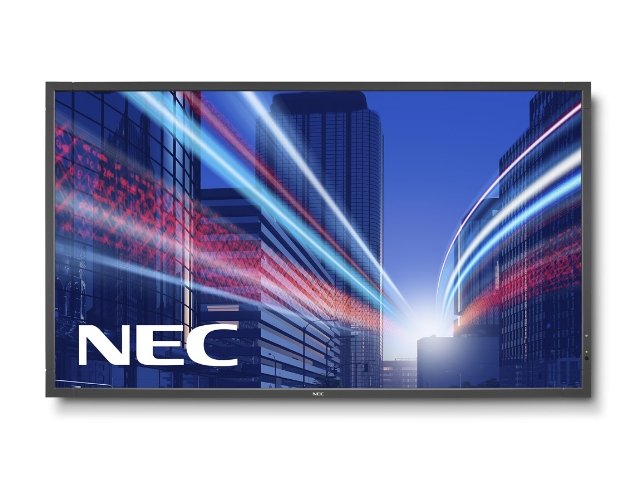

The MultiSync® X474HB delivers what is needed in high brightness environments. It is designed to be installed in shopping windows or in cabinets for outdoor applications offering a brightness of 2000cd/m². New Connectivity and Sensors allow additional creativity in the content displayed and how it is controlled. The unique built-in NFC sensor in combination with NEC’s new Android app reduces installation and maintenance times, especially useful on larger installations. The Human Sensor is aware of proximity based viewer presence and can change brightness, volume, inputs or power the display up or down resulting in added engagement and considerable energy savings over time.
This display is ideal for any heavy duty digital signage application that requires extremely high brightness levels and sunlight proof operation.
BENEFITS
- Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.
- Future Ready with OPS Cable Free Expansion - upgrade the power of your display at any time without the need for external cables or devices.
- Convenient installation and set up with NFC - the built-in near communication field chip allows to pre-configure the display by using an NFC capable device loaded with the NEC Android App.
- Automatically respond to viewer presence - The Human Sensor switches the display from very low to operating brightness or changes inputs when a person enters a proximity zone. This optional feature can also be used for creative signage or minimise unnecessary power use.
- Mission-critical 24/7 ready operation - with reliable, industry grade components and NEC trusted performance.
- Enhanced Ergonomics - thanks to 10-bit S-IPS performance for reliable colour reproduction and a special optical Quarter Lambda Filter to guarantee outdoor readability even through polarized sunglasses.
- Sunlight-proof operation - with highly temperature-resistant LCD panel coating to withstand direct sunlight without blackening effects.
- Special Characteristics - Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; HTTP Server; Image flip; NaViSet Administrator 2; Point Zoom Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; User readable log function; Ambient light sensor; Annual energy consumption: 277 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy efficiency class: D; Human Sensor
Specs
| Weight & dimensions |
| Width |
1084 mm |
| Depth |
147 mm |
| Height |
628 mm |
| Weight |
26.9 kg |
| Display |
| Display diagonal |
119.4 cm (47") |
| Display technology |
LED |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
2000 cd/m² |
| HD type |
Full HD |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Response time |
10 ms |
| Contrast ratio (typical) |
1300:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Active display area (W x H) |
1040 x 585 mm |
| Display diagonal (metric) |
119.29 cm |
| Horizontal scan range |
31.5 - 91.1 kHz |
| Vertical scan range |
50 - 85 Hz |
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Colour gamut |
2% |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Power |
| Power consumption (typical) |
209 W |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| DVI port |
Yes |
| DisplayPorts quantity |
2 |
| USB port |
No |
| Ethernet LAN |
Yes |
| DVI-D ports quantity |
1 |
| VGA (D-Sub) input ports |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Audio (L/R) in |
2 |
| Audio (L/R) out |
1 |
| RS-232C |
Yes |
| Remote (IR) input |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Other features |
| Annual energy consumption |
305 kWh |
| Portrait mode |
Yes |
| Temperature indicator |
Yes |
| Energy efficiency class (old) |
D |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
1.93 cm |
| Bezel width (side) |
1.93 cm |
| Bezel width (top) |
1.93 cm |
| Performance |
| On Screen Display (OSD) |
Yes |
| Ambient light sensor |
Yes |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Certificates |
| Certification |
C-tick; CE; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI |
| Packaging content |
| Remote control included |
Yes |
| Cables included |
AC, DVI |
Features
NEC MultiSync X474HB. Product design: Digital signage flat panel. Display diagonal: 119.4 cm (47"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 2000 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Product colour: Black
Product Description
The MultiSync® X474HB delivers what is needed in high brightness environments. It is designed to be installed in shopping windows or in cabinets for outdoor applications offering a brightness of 2000cd/m². New Connectivity and Sensors allow additional creativity in the content displayed and how it is controlled. The unique built-in NFC sensor in combination with NEC’s new Android app reduces installation and maintenance times, especially useful on larger installations. The Human Sensor is aware of proximity based viewer presence and can change brightness, volume, inputs or power the display up or down resulting in added engagement and considerable energy savings over time.
This display is ideal for any heavy duty digital signage application that requires extremely high brightness levels and sunlight proof operation.
BENEFITS
- Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.
- Future Ready with OPS Cable Free Expansion - upgrade the power of your display at any time without the need for external cables or devices.
- Convenient installation and set up with NFC - the built-in near communication field chip allows to pre-configure the display by using an NFC capable device loaded with the NEC Android App.
- Automatically respond to viewer presence - The Human Sensor switches the display from very low to operating brightness or changes inputs when a person enters a proximity zone. This optional feature can also be used for creative signage or minimise unnecessary power use.
- Mission-critical 24/7 ready operation - with reliable, industry grade components and NEC trusted performance.
- Enhanced Ergonomics - thanks to 10-bit S-IPS performance for reliable colour reproduction and a special optical Quarter Lambda Filter to guarantee outdoor readability even through polarized sunglasses.
- Sunlight-proof operation - with highly temperature-resistant LCD panel coating to withstand direct sunlight without blackening effects.
- Special Characteristics - Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; HTTP Server; Image flip; NaViSet Administrator 2; Point Zoom Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; User readable log function; Ambient light sensor; Annual energy consumption: 277 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy efficiency class: D; Human Sensor
