Stock Status: 1x unit in stock

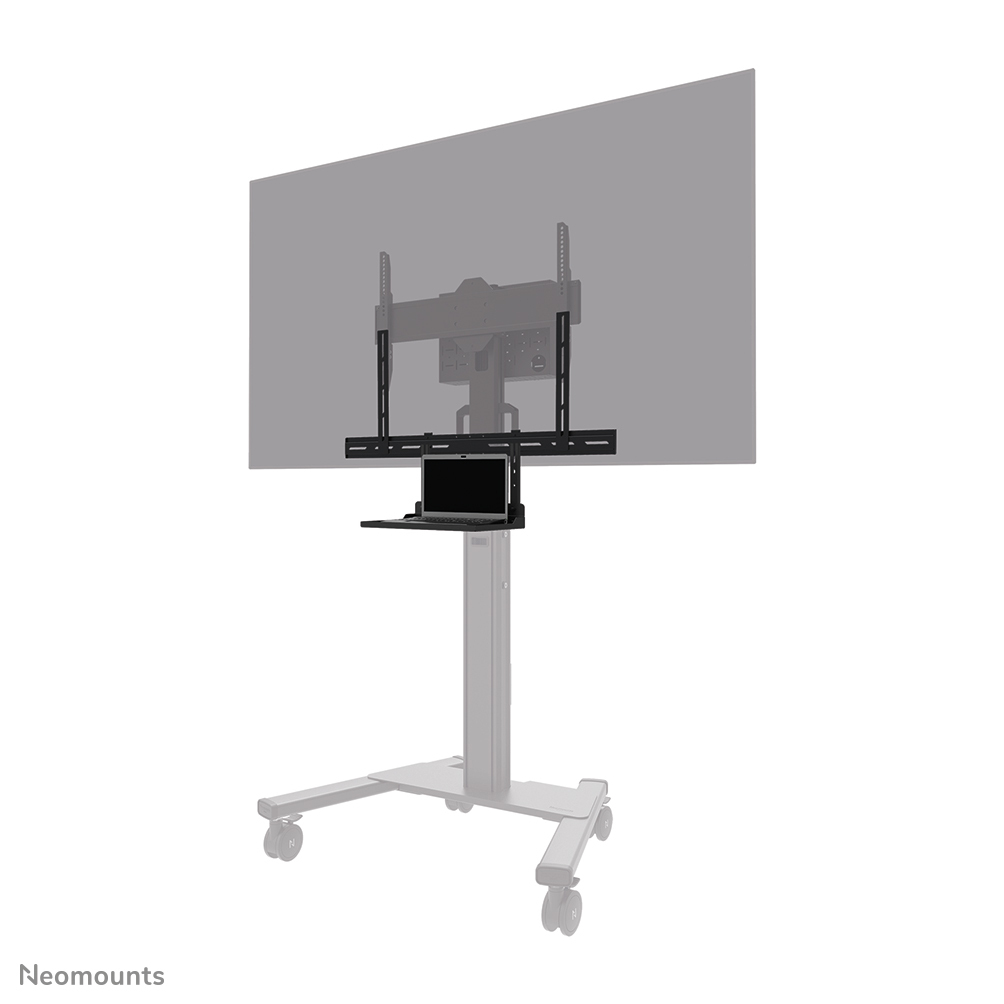

The Neomounts AV45-500BL is a universal laptop shelf kit designed for installation under displays from 43" and larger, supporting VESA hole patterns from 200x200 up to 800x600 mm. The VESA-based design makes the shelf compatible with all VESA-oriented trolleys and wall mounts, ensuring broad applicability across different setups.
Both the shelf support and backplate brackets are height-adjustable, providing maximum flexibility. The AV45-500BL mounting holes accommodate width and height variations, while the VESA frame adjusts in four positions (200/400/600/800). The kit is suitable for use with both wall and floor mounts and has a maximum load capacity of 2,5 kg. Installation is quick and straightforward, with ruler-guided alignment ensuring a precise and seamless fit.
For detailed compatibility with specific models and mounting sizes, please refer to the online manual.
Specs
| Features |
| Product type |
Shelf |
| Panel mounting interface |
200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600 |
| Minimum screen size |
109.2 cm (43") |
| Maximum screen size |
2.79 m (110") |
| Maximum weight capacity |
2.5 kg |
| Number of displays supported |
1 |
| Height adjustment range |
0 - 55 mm |
| Product colour |
Black |
| Housing material |
Steel |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
800 x 600 mm |
| Packaging data |
| Package width |
260 mm |
| Package depth |
932 mm |
| Package height |
79 mm |
| Weight & dimensions |
| Width |
900 mm |
| Depth |
242 mm |
| Height |
640 mm |
| Weight |
5.5 kg |
| Logistics data |
| Master (outer) case net weight |
13.5 kg |
| Master (outer) case width |
255 mm |
| Master (outer) case length |
952 mm |
| Master (outer) case height |
280 mm |
| Master (outer) case gross weight |
18.2 kg |
| Products per master (outer) case |
3 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Technical details |
| Warranty period |
5 year(s) |
| Country of origin |
China |
Features
Neomounts AV45-500BL Laptop shelf kit 43-110" - VESA - max 2,5 kg - universal. Product type: Shelf, Panel mounting interface: 200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x..., Minimum screen size: 109.2 cm (43"). Width: 900 mm, Depth: 242 mm, Height: 640 mm. Package width: 260 mm, Package depth: 932 mm, Package height: 79 mm. Master (outer) case net weight: 13.5 kg, Master (outer) case width: 255 mm, Master (outer) case length: 952 mm
Product Description
The Neomounts AV45-500BL is a universal laptop shelf kit designed for installation under displays from 43" and larger, supporting VESA hole patterns from 200x200 up to 800x600 mm. The VESA-based design makes the shelf compatible with all VESA-oriented trolleys and wall mounts, ensuring broad applicability across different setups.
Both the shelf support and backplate brackets are height-adjustable, providing maximum flexibility. The AV45-500BL mounting holes accommodate width and height variations, while the VESA frame adjusts in four positions (200/400/600/800). The kit is suitable for use with both wall and floor mounts and has a maximum load capacity of 2,5 kg. Installation is quick and straightforward, with ruler-guided alignment ensuring a precise and seamless fit.
For detailed compatibility with specific models and mounting sizes, please refer to the online manual.
