Stock Status: 1x unit in stock

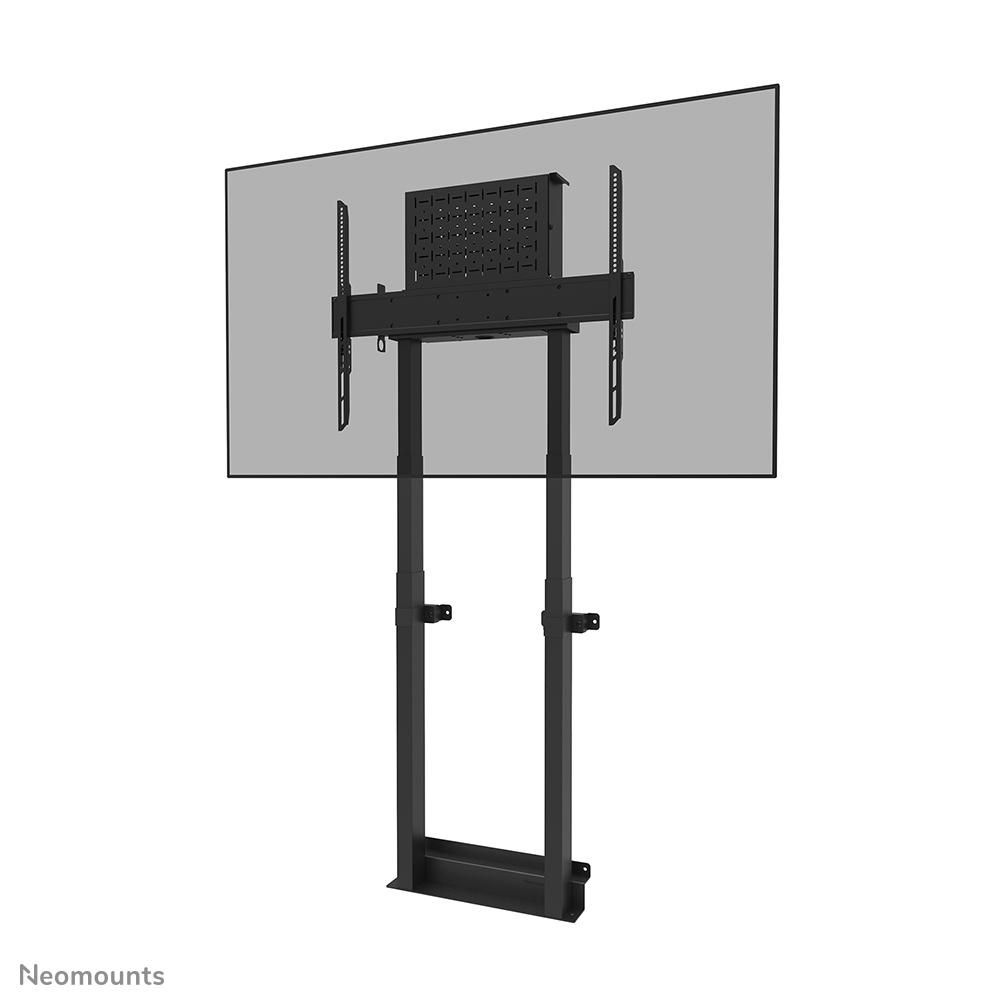

The Neomounts by Newstar WL55-875BL1 is a wall mount for displays up to 100" with a maximum weight capacity of 110 kg. The mount has 65 cm motorized height adjustment (35 mm/second), is operated with a wired remote control and features an anti-collision system for extra safety. A lockable, ventilated hardware compartment with cable opening is included and optional for installation.
The floor plate of the mount, with space for floor baseboards, ensures solid and secure installation. The included cable duct, optional to install, conceal and route cables from wall mount to screen.
The wall mount is packed partially pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included). Additionally, the WL55-875BL1 is compactly packed for optimized transportation and storage.
The AFL-875BL1 videobar & multimedia kit is optionally available and enables the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kit is an adapter for the Logitech Rally Bar (Mini). In addition, the multimedia shelf is suitable for installation of i.a. the Logitech Tap.
Specs
| Weight & dimensions |
| Width |
888 mm |
| Depth |
172 mm |
| Height |
2004 mm |
| Ergonomics |
| Height adjustment |
Y |
| Height adjustment type |
Electric |
| Height adjustment range |
101.9 - 166.9 mm |
| Cable management |
Y |
| Distance to the wall (max) |
17.2 cm |
| Mounting |
| Maximum weight capacity |
110 kg |
| Maximum screen size |
2.54 m (100") |
| Mounting type |
Wall |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
800 x 600 mm |
| Minimum screen size |
94 cm (37") |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 600,600 x 500,680 x 300,800 x |
| Number of displays supported |
1 |
| Other features |
| Country of origin |
China |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Accepts padlock |
Y |
| Power |
| Motorized |
Y |
| Remotely operated |
Y |
| Technical details |
| Warranty period |
5 year(s) |
| Package net weight |
38 kg |
| Packaging data |
| Package width |
604 mm |
| Package depth |
166 mm |
| Package height |
1104 mm |
| Logistics data |
| Master (outer) case net weight |
33.9 kg |
| Harmonized System (HS) code |
HS7326909890 |
| Products per pallet (EU) |
9 pc(s) |
| Master (outer) case width |
604 mm |
| Master (outer) case length |
166 mm |
| Master (outer) case height |
1104 mm |
| Products per master (outer) case |
1 pc(s) |
Features
Neomounts by Newstar motorised wall mount. Maximum weight capacity: 110 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 101.9 - 166.9 mm. Product colour: Black. Remotely operated
Product Description
The Neomounts by Newstar WL55-875BL1 is a wall mount for displays up to 100" with a maximum weight capacity of 110 kg. The mount has 65 cm motorized height adjustment (35 mm/second), is operated with a wired remote control and features an anti-collision system for extra safety. A lockable, ventilated hardware compartment with cable opening is included and optional for installation.
The floor plate of the mount, with space for floor baseboards, ensures solid and secure installation. The included cable duct, optional to install, conceal and route cables from wall mount to screen.
The wall mount is packed partially pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included). Additionally, the WL55-875BL1 is compactly packed for optimized transportation and storage.
The AFL-875BL1 videobar & multimedia kit is optionally available and enables the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kit is an adapter for the Logitech Rally Bar (Mini). In addition, the multimedia shelf is suitable for installation of i.a. the Logitech Tap.
