Stock Status: 1x unit in stock

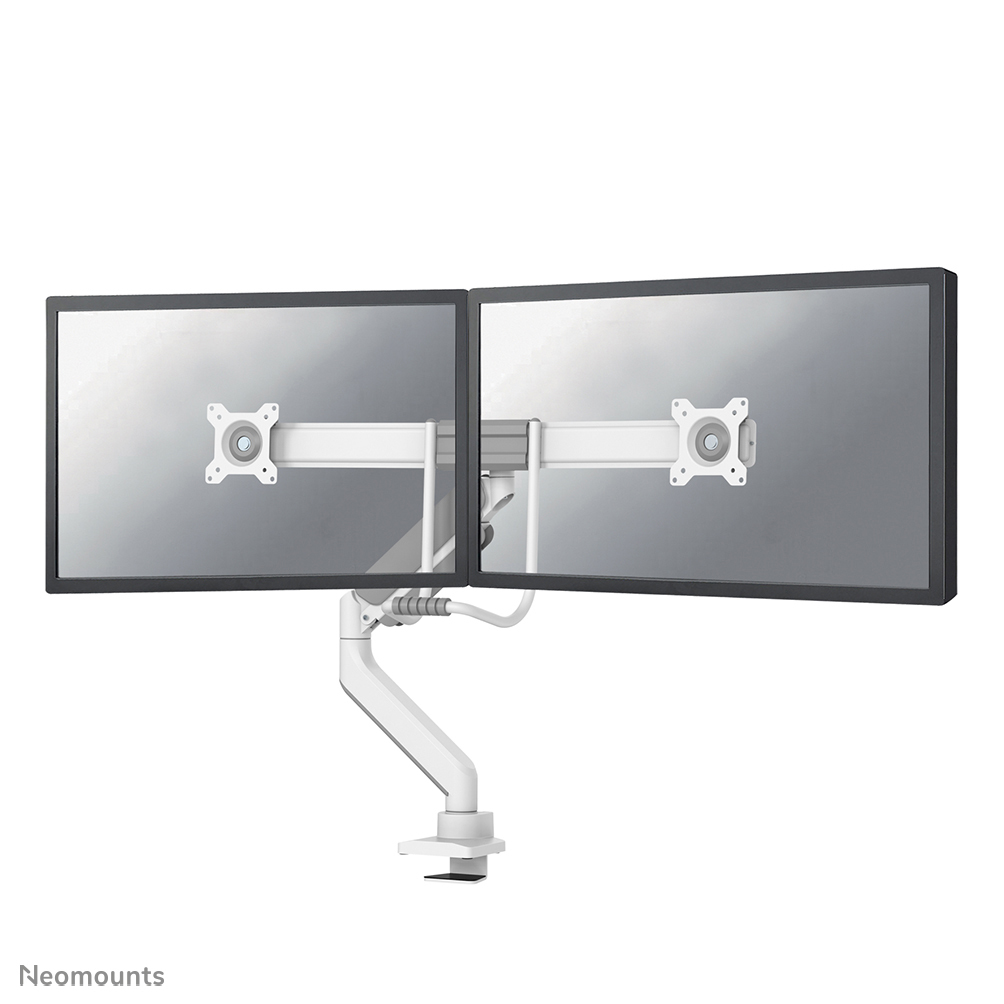

The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position.
The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Specs
| Weight & dimensions |
| Width |
853 mm |
| Depth |
115 mm |
| Height |
646 mm |
| Packaging data |
| Package width |
320 mm |
| Package depth |
152 mm |
| Package height |
445 mm |
| Package weight |
7.9 kg |
| Package net weight |
7.9 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Gas spring |
| Height adjustment range |
0 - 280 mm |
| Adjustable depth |
Yes |
| Depth adjustment range |
0 - 680 mm |
| Tilt adjustment |
Yes |
| Tilt angle range |
-10 - 10° |
| Swivelling |
Yes |
| Swivel angle |
20° |
| Swivel angle range |
-90 - 90° |
| Rotating |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Other features |
| Minimum weight |
1 kg |
| Width adjustment range |
0 - 540 mm |
| Warranty period |
5 year(s) |
| Mounting |
| Maximum weight capacity |
8 kg |
| Maximum screen size |
81.3 cm (32") |
| Mounting type |
Desk |
| Minimum screen size |
43.2 cm (17") |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Number of displays supported |
2 |
| Mounting |
Clamp/Grommet |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Desk thickness (min) |
1 cm |
| Desk thickness (max) |
4.5 cm |
| Design |
| Product colour |
White |
| Housing material |
Steel |
| Logistics data |
| Master (outer) case width |
335 mm |
| Master (outer) case length |
325 mm |
| Master (outer) case height |
460 mm |
| Master (outer) case gross weight |
15.9 kg |
| Products per master (outer) case |
2 pc(s) |
| Country of origin |
China |
| Master (outer) case net weight |
14.3 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
40 pc(s) |
| Packaging content |
| Mounting kit |
Yes |
Features
Neomounts desk monitor arm. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -10 - 10°. Product colour: White
Product Description
The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position.
The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
