Stock Status: 1x unit in stock

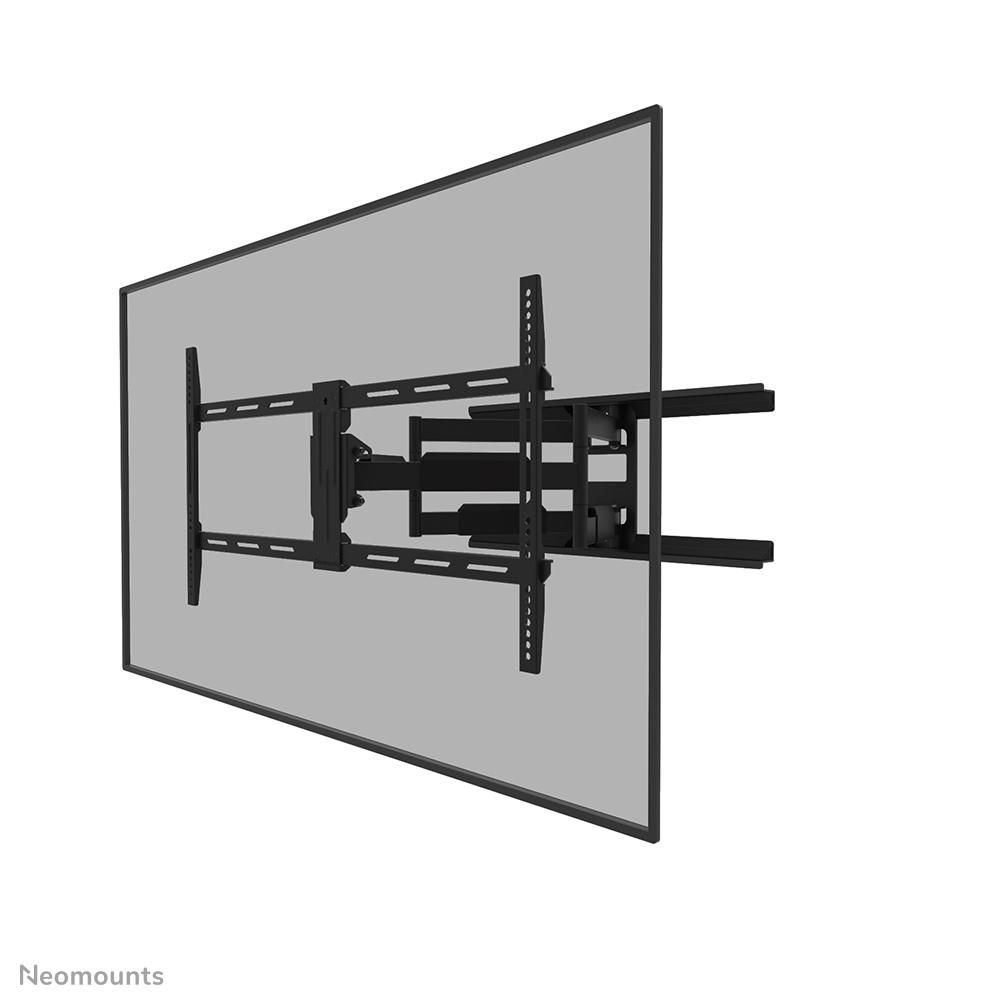

The Neomounts by Newstar WL40-550BL18 is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The WL40-550BL18 has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400 mm.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Specs
| Weight & dimensions |
| Width |
850 mm |
| Depth |
55 mm |
| Height |
436 mm |
| Packaging data |
| Package width |
882 mm |
| Package depth |
340 mm |
| Package height |
65 mm |
| Mounting |
| Maximum weight capacity |
45 kg |
| Maximum screen size |
190.5 cm (75") |
| Mounting type |
Wall |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
800 x 400 mm |
| Minimum screen size |
109.2 cm (43") |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,350 x 350,400 x 200,400 x 400,400 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400 |
| Number of displays supported |
1 |
| Ergonomics |
| Height adjustment |
N |
| Tilt adjustment |
Y |
| Tilt angle range |
-3 - 15° |
| Swivel angle |
54° |
| Cable management |
Y |
| Distance to the wall (max) |
71 cm |
| Distance to the wall (min) |
5.5 cm |
| Other features |
| Country of origin |
China |
| Design |
| Product colour |
Black |
| Technical details |
| Quantity per pack |
1 pc(s) |
| Package net weight |
11.7 kg |
| Packaging content |
| Mounting kit |
Y |
| Logistics data |
| Master (outer) case width |
902 mm |
| Master (outer) case length |
145 mm |
| Master (outer) case height |
360 mm |
| Master (outer) case net weight |
22.1 kg |
| Products per master (outer) case |
2 pc(s) |
| Harmonized System (HS) code |
7326 90 98 90 |
| Products per pallet (EU) |
40 pc(s) |
Features
Neomounts by Newstar tv wall mount. Maximum weight capacity: 45 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -3 - 15°, Distance to the wall (min): 5.5 cm, Distance to the wall (max): 71 cm. Product colour: Black
Product Description
The Neomounts by Newstar WL40-550BL18 is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The WL40-550BL18 has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400 mm.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
