Stock Status: 1x unit in stock

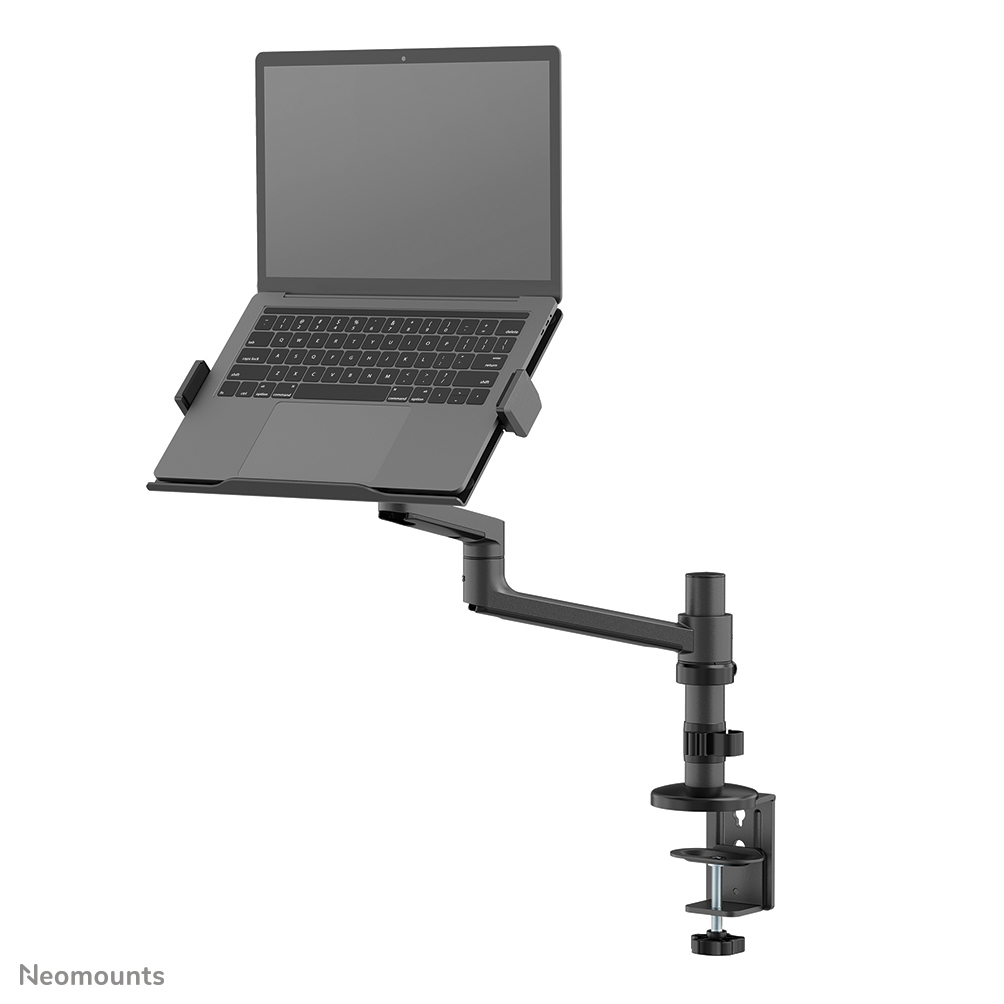

The Neomounts DS20-425BL1 NEXT Lite is a full motion desk mount for laptops up to 17,3" with a maximum weight capacity of 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Specs
| Weight & dimensions |
| Width |
465 mm |
| Depth |
494 mm |
| Height |
641 mm |
| Weight |
3.64 kg |
| Desk thickness (max) |
8 cm |
| Desk thickness (min) |
1 cm |
| Ergonomics |
| Adjustable |
Yes |
| Height adjustment |
Yes |
| Height adjustment range |
180 - 385 mm |
| Width adjustment range |
0 - 413 mm |
| Adjustable depth |
Yes |
| Depth adjustment range |
162 - 494 mm |
| Swivel angle range |
-90 - 90° |
| Tilt angle range |
-30 - 90° |
| Rotating |
Yes |
| Angle of rotation |
360° |
| Distance to the wall (max) |
49.4 cm |
| Distance to the wall (min) |
16.2 cm |
| VESA mounting |
Yes |
| Panel mounting interface |
75 x 75 mm |
| Cable management |
Yes |
| Other features |
| Number of displays supported |
1 |
| Design |
| Product type |
Laptop arm |
| Product colour |
Black |
| Material |
Steel |
| Minimum notebook screen size compatibility |
29.5 cm (11.6") |
| Maximum notebook screen size compatibility |
43.9 cm (17.3") |
| Number of devices supported |
1 |
| Maximum weight capacity |
5 kg |
| Mounting |
Clamp/Grommet |
| Technical details |
| Mounting type |
Desk |
| Country of origin |
China |
| Logistics data |
| Master (outer) case width |
455 mm |
| Master (outer) case length |
320 mm |
| Master (outer) case height |
490 mm |
| Master (outer) case gross weight |
18.5 kg |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case net weight |
14.6 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
56 pc(s) |
| Packaging data |
| Package width |
233 mm |
| Package depth |
150 mm |
| Package height |
442 mm |
| Package weight |
4.4 kg |
| Package type |
Box |
| Package net weight |
4.4 kg |
| Features |
| Lockable |
No |
Features
Neomounts DS20-425BL1 Laptop holder monitor arm 11.6-17.3" - space saving. Product type: Laptop arm, Product colour: Black, Material: Steel. Height adjustment range: 180 - 385 mm, Width adjustment range: 0 - 413 mm, Depth adjustment range: 162 - 494 mm. Width: 465 mm, Depth: 494 mm, Height: 641 mm. Package width: 233 mm, Package depth: 150 mm, Package height: 442 mm. Master (outer) case width: 455 mm, Master (outer) case length: 320 mm, Master (outer) case height: 490 mm
Product Description
The Neomounts DS20-425BL1 NEXT Lite is a full motion desk mount for laptops up to 17,3" with a maximum weight capacity of 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
