Stock Status: 1x unit in stock

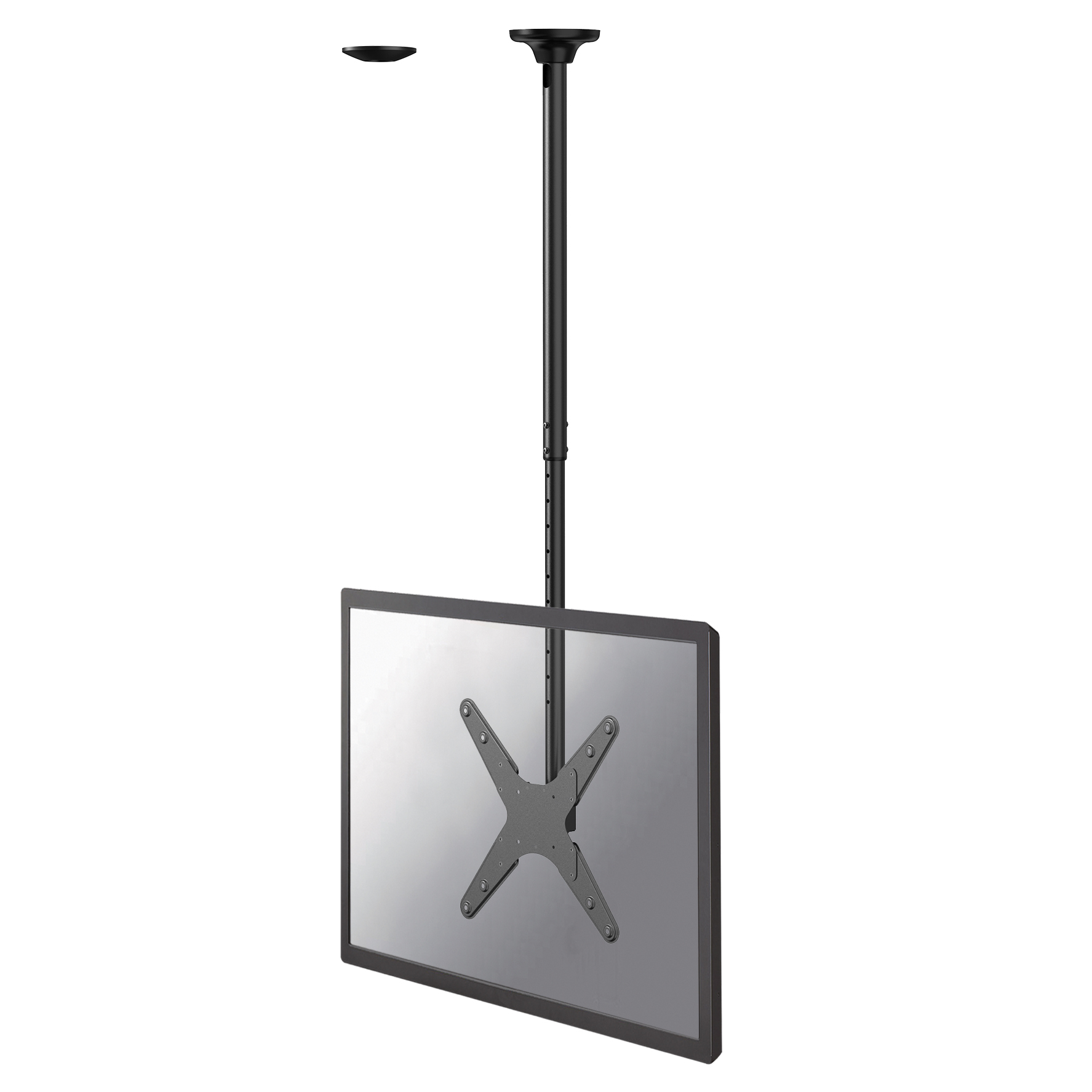

The Neomounts FPMA-C340BLACK is a full motion ceiling mount for flat screens up to 75". The unique tilt (25°), swivel (360°) and rotate technology (6°) allows the mount to change to the best angle for the optimal viewing position.
The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The FPMA-C340BLACK is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. A nifty cable management systems conceals and routes cables from ceiling to screen. The mount comes with an additional cover for installation on suspended ceilings.
* The Neomounts NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK, FPMA-C340BLACK and FPMA-C340DBLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with an extra 107,5 cm.
Specs
| Weight & dimensions |
| Height |
1785 mm |
| Weight |
5.54 kg |
| Packaging data |
| Package width |
250 mm |
| Package depth |
145 mm |
| Package height |
930 mm |
| Package weight |
8.8 kg |
| Mounting |
| Number of displays supported |
1 |
| Maximum weight capacity (per display) |
50 kg |
| Maximum screen size |
190.5 cm (75") |
| Mounting type |
Ceiling |
| Maximum weight capacity |
50 kg |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
400 x 400 mm |
| Minimum screen size |
81.3 cm (32") |
| Panel mounting interface |
100 x 100,150 x 200,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Height adjustment range |
1060 - 1560 mm |
| Tilt adjustment |
Yes |
| Tilt angle range |
-25 - 0° |
| Swivelling |
Yes |
| Swivel angle |
360° |
| Swivel angle range |
-180 - 180° |
| Rotating |
Yes |
| Angle of rotation |
6° |
| Pivot angle |
-3 - 3° |
| Number of pivot points |
1 |
| Tilt angle |
25° |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Technical details |
| Country of origin |
China |
| Package net weight |
12.8 kg |
| Logistics data |
| Master (outer) case width |
310 mm |
| Master (outer) case length |
270 mm |
| Master (outer) case height |
950 mm |
| Master (outer) case gross weight |
17.6 kg |
| Master (outer) case net weight |
17.6 kg |
| Products per master (outer) case |
2 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
30 pc(s) |
Features
Neomounts FPMA-C340BLACK Monitor/TV mount ceiling 32-75" - h 106-156 cm. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 1060 - 1560 mm, Tilt angle range: -25 - 0°, Swivel angle range: -180 - 180°, Angle of rotation: 6°. Product colour: Black
Product Description
The Neomounts FPMA-C340BLACK is a full motion ceiling mount for flat screens up to 75". The unique tilt (25°), swivel (360°) and rotate technology (6°) allows the mount to change to the best angle for the optimal viewing position.
The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The FPMA-C340BLACK is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. A nifty cable management systems conceals and routes cables from ceiling to screen. The mount comes with an additional cover for installation on suspended ceilings.
* The Neomounts NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK, FPMA-C340BLACK and FPMA-C340DBLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with an extra 107,5 cm.
