Stock Status: 1x unit in stock

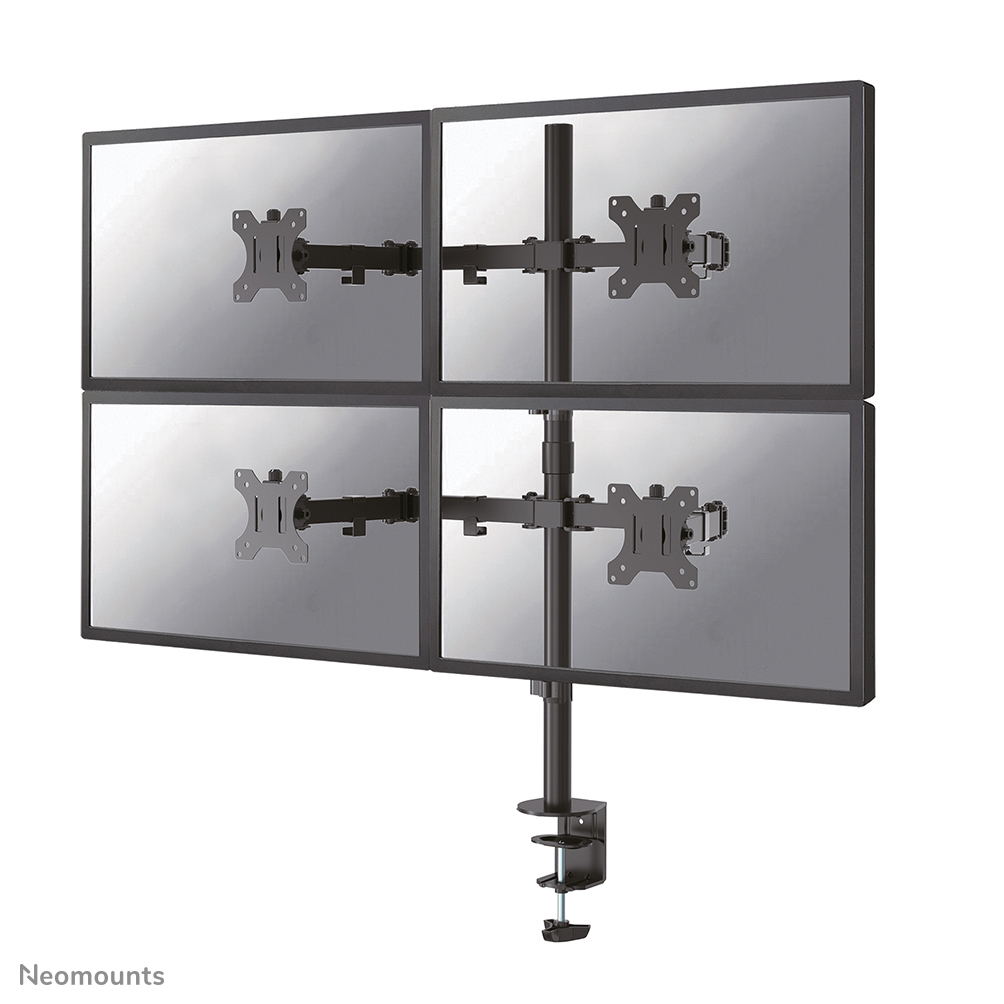

The Neomounts FPMA-D550D4BLACK is a full motion desk mount for four flat screens up to 32" with a maximum weight capacity of 6 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Additionally, the mount features height adjustment (0-85,7 cm) and depth adjustment (0-38,2 cm), to create the perfect work situation. The smart cable management clips ensure orderly routing of the cables. Additionally, the mount features an Easy-release VESA, that allows you to (de)attach the monitors in a wink of an eye.
The FPMA-D550D4BLACK is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The Neomounts FPMA-D550D4BLACK comes with both desk clamp and grommet.
Specs
| Weight & dimensions |
| Width |
913 mm |
| Depth |
148 mm |
| Height |
988 mm |
| Weight |
7.37 kg |
| Packaging data |
| Package width |
185 mm |
| Package depth |
592 mm |
| Package height |
123 mm |
| Package weight |
7.3 kg |
| Package net weight |
7.3 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Height adjustment range |
0 - 857 mm |
| Adjustable depth |
Yes |
| Depth adjustment range |
0 - 382 mm |
| Tilt adjustment |
Yes |
| Tilt angle range |
0 - 90° |
| Swivelling |
Yes |
| Swivel angle |
180° |
| Rotating |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Mounting |
| Number of displays supported |
4 |
| Maximum weight capacity (per display) |
6 kg |
| Maximum screen size |
81.3 cm (32") |
| Mounting type |
Desk |
| Minimum screen size |
33 cm (13") |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Mounting |
Clamp/Grommet |
| Panel mounting interface |
75 x 75 mm |
| Distance to the wall (min) |
1 cm |
| Distance to the wall (max) |
8.8 cm |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Logistics data |
| Master (outer) case width |
200 mm |
| Master (outer) case length |
610 mm |
| Master (outer) case height |
265 mm |
| Master (outer) case gross weight |
15.9 kg |
| Products per master (outer) case |
2 pc(s) |
| Country of origin |
China |
| Master (outer) case net weight |
15 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
70 pc(s) |
Features
Neomounts FPMA-D550D4BLACK Monitor arm 13-32". Mounting: Clamp/Grommet, Minimum screen size: 33 cm (13"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: 0 - 90°. Product colour: Black
Product Description
The Neomounts FPMA-D550D4BLACK is a full motion desk mount for four flat screens up to 32" with a maximum weight capacity of 6 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Additionally, the mount features height adjustment (0-85,7 cm) and depth adjustment (0-38,2 cm), to create the perfect work situation. The smart cable management clips ensure orderly routing of the cables. Additionally, the mount features an Easy-release VESA, that allows you to (de)attach the monitors in a wink of an eye.
The FPMA-D550D4BLACK is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The Neomounts FPMA-D550D4BLACK comes with both desk clamp and grommet.
