Stock Status: 1x unit in stock

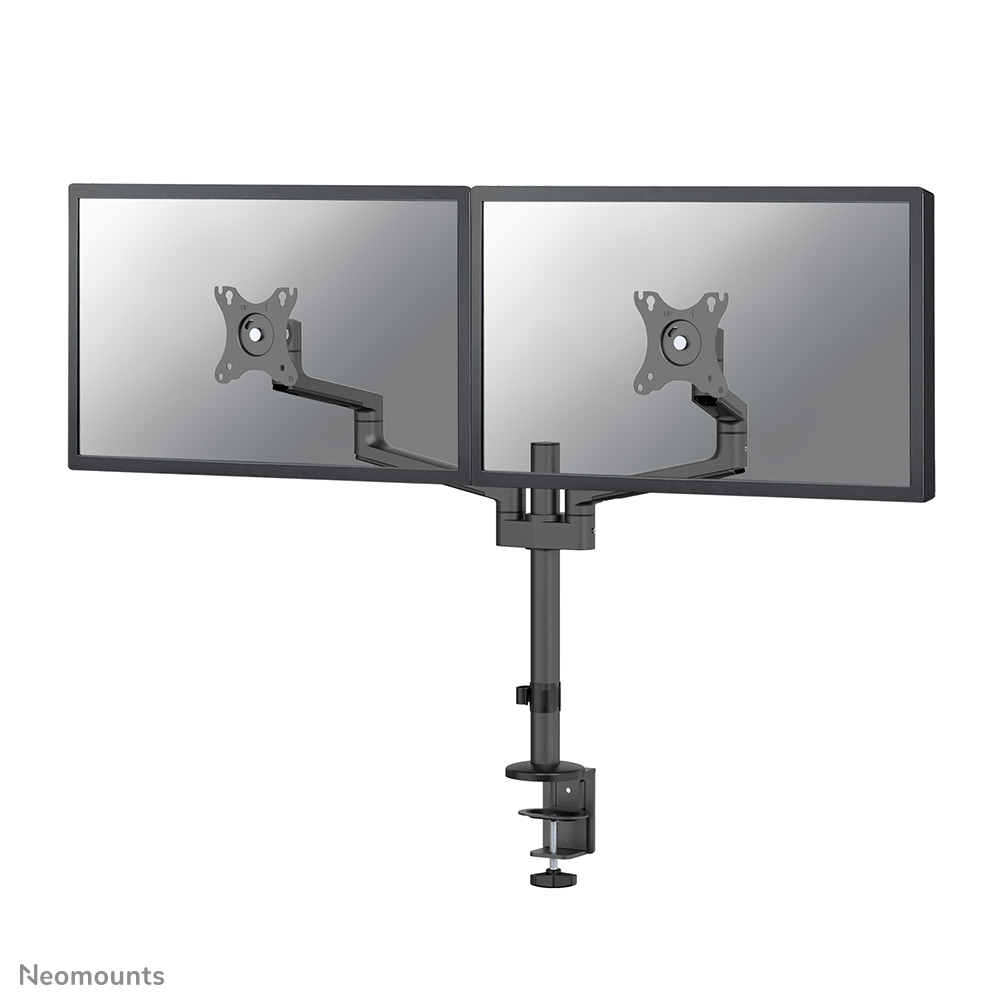

The Neomounts DS60-425BL2 NEXT Lite is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Specs
| Weight & dimensions |
| Width |
888 mm |
| Depth |
460 mm |
| Height |
763 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
210 mm |
| Package depth |
105 mm |
| Package height |
440 mm |
| Package net weight |
4.6 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Height adjustment range |
295 - 607 mm |
| Adjustable depth |
Yes |
| Depth adjustment range |
66 - 398 mm |
| Tilt angle range |
-30 - 90° |
| Swivelling |
Yes |
| Swivel angle range |
-90 - 90° |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Feet |
Yes |
| Feet colour |
Black |
| Other features |
| Width adjustment range |
0 - 332 mm |
| Mounting |
| Maximum weight capacity |
8 kg |
| Maximum screen size |
68.6 cm (27") |
| Mounting type |
Desk |
| Minimum screen size |
43.2 cm (17") |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Number of displays supported |
2 |
| Maximum weight capacity (per display) |
8 kg |
| Mounting |
Clamp/Grommet |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Desk thickness (min) |
1 cm |
| Desk thickness (max) |
8 cm |
| Clamp mount desk thickness (max) |
8 cm |
| Grommet mount desk thickness (max) |
4 cm |
| Distance to the wall (min) |
12.8 cm |
| Distance to the wall (max) |
46 cm |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Orientation |
Landscape/Portrait |
| Accepts padlock |
No |
| Logistics data |
| Master (outer) case width |
220 mm |
| Master (outer) case length |
435 mm |
| Master (outer) case height |
455 mm |
| Master (outer) case gross weight |
18.4 kg |
| Products per master (outer) case |
4 pc(s) |
| Country of origin |
China |
| Master (outer) case net weight |
15.1 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
84 pc(s) |
| Packaging content |
| Clamp included |
Yes |
| VESA mount included |
Yes |
Features
Neomounts desk monitor arm. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -30 - 90°. Product colour: Black
Product Description
The Neomounts DS60-425BL2 NEXT Lite is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
