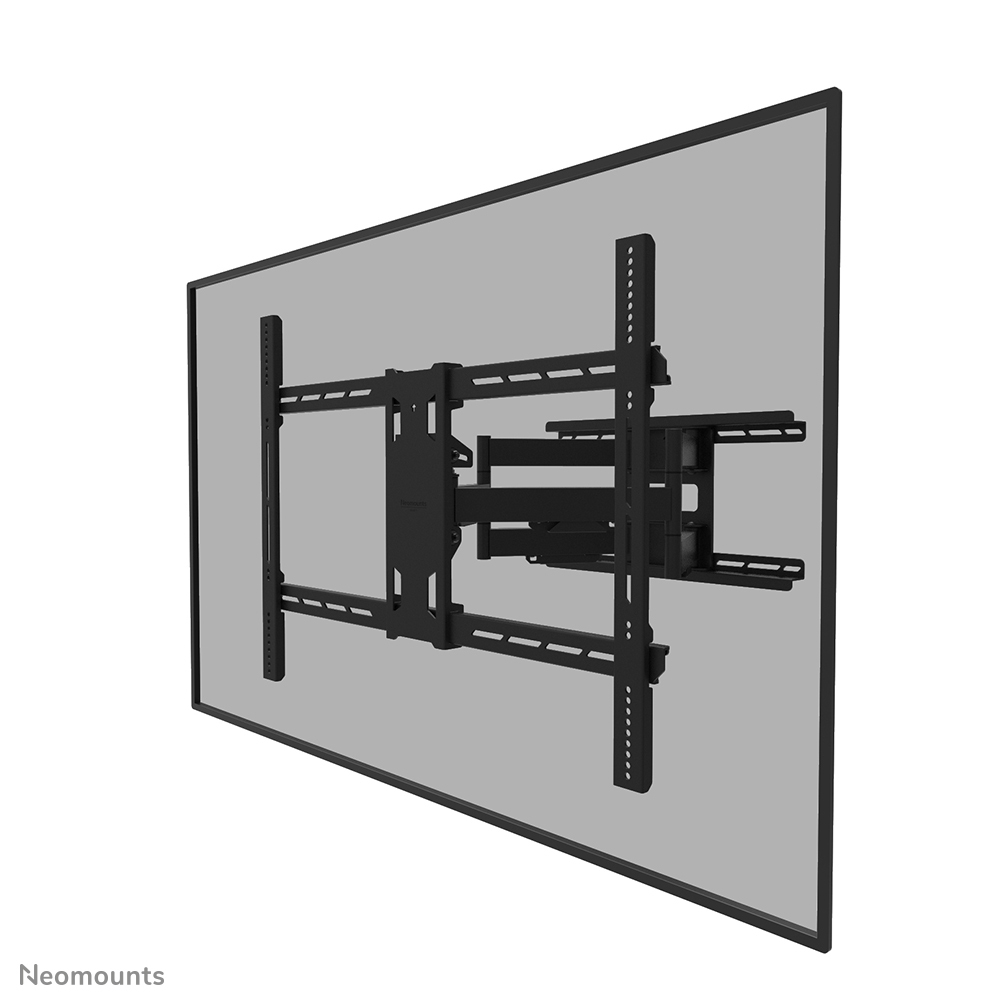

The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
Specs
| Weight & dimensions |
| Width |
880 mm |
| Depth |
82 mm |
| Height |
630 mm |
| Packaging data |
| Package width |
450 mm |
| Package depth |
100 mm |
| Package height |
950 mm |
| Package net weight |
22 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment range |
0 - 10 mm |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 15° |
| Swivelling |
Yes |
| Swivel angle range |
-45 - 45° |
| Rotating |
Yes |
| Angle of rotation |
6° |
| Pivot angle |
-3 - 3° |
| Cable management |
Yes |
| Other features |
| Warranty period |
5 year(s) |
| Mounting |
| Maximum weight capacity |
125 kg |
| Maximum screen size |
2.79 m (110") |
| Mounting type |
Wall |
| Minimum screen size |
139.7 cm (55") |
| Minimum VESA mount |
300 x 200 mm |
| Maximum VESA mount |
800 x 600 mm |
| Number of displays supported |
1 |
| Suitable for TV |
Yes |
| Panel mounting interface |
300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600 |
| Distance to the wall (min) |
8.2 cm |
| Distance to the wall (max) |
70.3 cm |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Accepts padlock |
No |
| Logistics data |
| Master (outer) case width |
450 mm |
| Master (outer) case length |
100 mm |
| Master (outer) case height |
950 mm |
| Master (outer) case gross weight |
22 kg |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Master (outer) case net weight |
20.4 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
20 pc(s) |
| Packaging content |
| Mounting kit |
Yes |
Features
Neomounts heavy duty TV wall mount. Maximum weight capacity: 125 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.79 m (110"), Minimum VESA mount: 300 x 200 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment, Swivel angle range: -45 - 45°, Tilt angle range: -5 - 15°. Product colour: Black
Product Description
The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
