Stock Status: 1x unit in stock

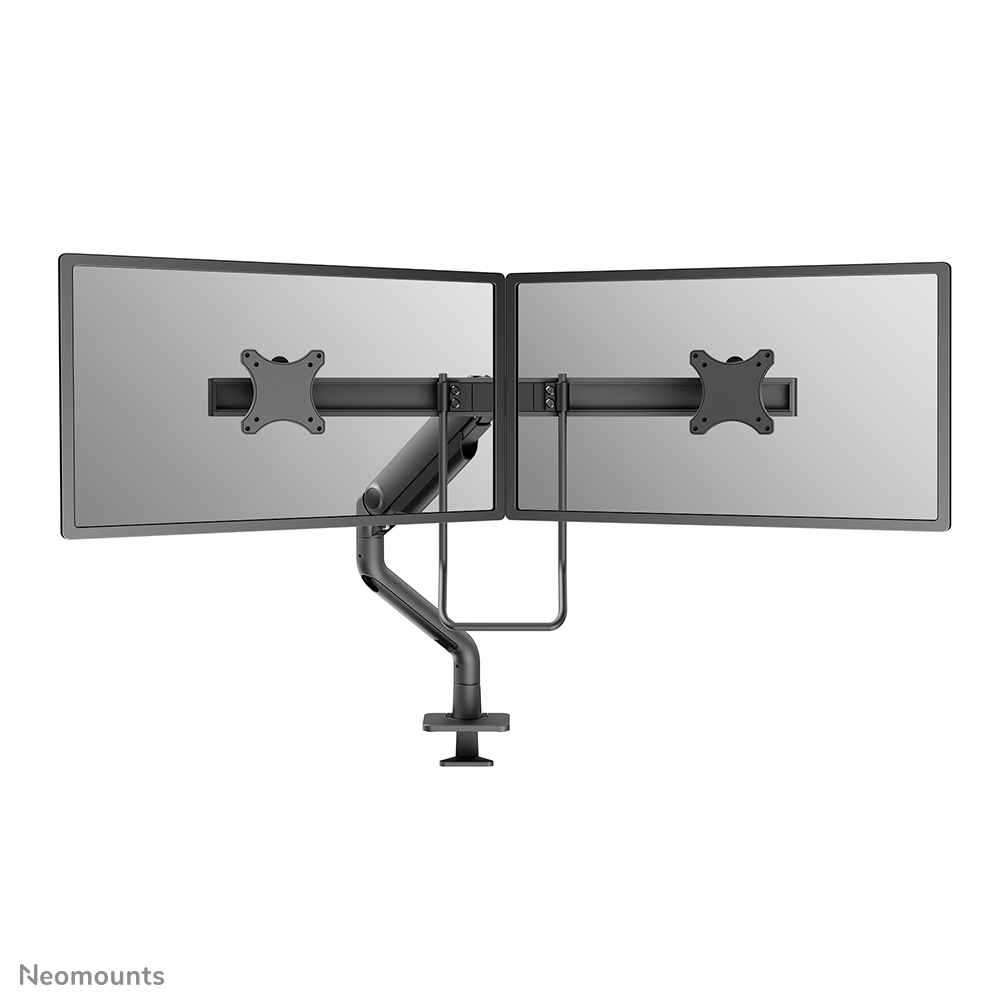

The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.
The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper.The NEXT One products have an extended warranty period of 10-years.
Specs
| Weight & dimensions |
| Width |
833 mm |
| Depth |
739 mm |
| Height |
1085 mm |
| Packaging data |
| Package width |
222 mm |
| Package depth |
120 mm |
| Package height |
887 mm |
| Package type |
Box |
| Package net weight |
7.1 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Gas spring |
| Height adjustment range |
191 - 527 mm |
| Adjustable depth |
Yes |
| Depth adjustment range |
173 - 710 mm |
| Tilt adjustment |
Yes |
| Tilt angle range |
-60 - 60° |
| Swivelling |
Yes |
| Swivel angle range |
-90 - 90° |
| Rotating |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Other features |
| Minimum weight |
1 kg |
| Width adjustment range |
0 - 1074 mm |
| Warranty period |
10 year(s) |
| Mounting |
| Maximum weight capacity |
8 kg |
| Maximum screen size |
81.3 cm (32") |
| Mounting type |
Desk |
| Minimum screen size |
43.2 cm (17") |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Number of displays supported |
2 |
| Mounting |
Clamp/Grommet |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Desk thickness (min) |
1 cm |
| Desk thickness (max) |
5.5 cm |
| Clamp mount desk thickness (max) |
5 cm |
| Grommet mount desk thickness (max) |
5.5 cm |
| Distance to the wall (min) |
20.4 cm |
| Distance to the wall (max) |
74.1 cm |
| Design |
| Product colour |
Black |
| Housing material |
Aluminium |
| Easy to install |
Yes |
| Logistics data |
| Master (outer) case width |
240 mm |
| Master (outer) case length |
260 mm |
| Master (outer) case height |
905 mm |
| Master (outer) case gross weight |
14.9 kg |
| Products per master (outer) case |
2 pc(s) |
| Country of origin |
China |
| Master (outer) case net weight |
11.1 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
36 pc(s) |
Features
Neomounts desk monitor arm. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -60 - 60°. Product colour: Black
Product Description
The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.
The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper.The NEXT One products have an extended warranty period of 10-years.
