Stock Status: 1x unit in stock

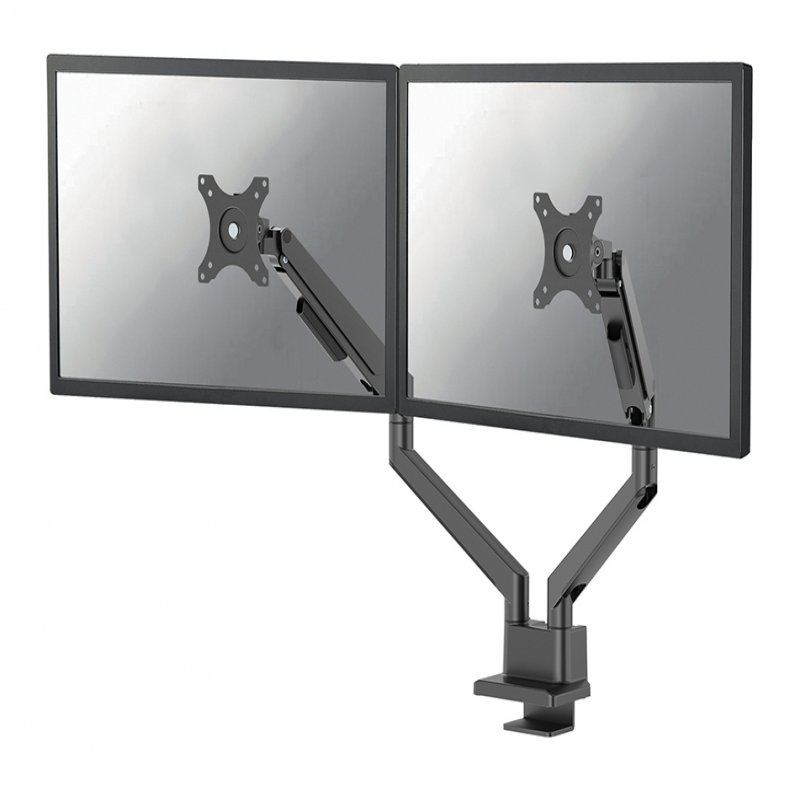

The Neomounts DS70-250BL2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.
The DS70-250BL2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.
The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.
Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
Specs
| Weight & dimensions |
| Width |
114 mm |
| Depth |
580 mm |
| Height |
552 mm |
| Weight |
4.35 kg |
| Packaging data |
| Package width |
192 mm |
| Package depth |
147 mm |
| Package height |
430 mm |
| Package weight |
4.9 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Gas spring |
| Height adjustment range |
215 - 495 mm |
| Adjustable depth |
Yes |
| Depth adjustment range |
70 - 525 mm |
| Width adjustment |
98.4 cm |
| Tilt adjustment |
Yes |
| Tilt angle range |
-45 - 45° |
| Swivelling |
Yes |
| Swivel angle range |
-90 - 90° |
| Rotating |
Yes |
| Angle of rotation |
360° |
| Pivot angle |
-180 - 180° |
| Cable management |
Yes |
| Other features |
| Minimum weight |
1 kg |
| Width adjustment range |
0 - 984 mm |
| Warranty period |
5 year(s) |
| Mounting |
| Number of displays supported |
2 |
| Maximum weight capacity (per display) |
9 kg |
| Maximum screen size |
81.3 cm (32") |
| Mounting type |
Desk |
| Maximum weight capacity |
9 kg |
| Minimum screen size |
43.2 cm (17") |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity (per curved/ultra-wide display) |
8 kg |
| Mounting |
Clamp/Grommet |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Desk thickness (min) |
1 cm |
| Desk thickness (max) |
5 cm |
| Distance to the wall (min) |
12 cm |
| Distance to the wall (max) |
40.4 cm |
| Design |
| Product colour |
Black |
| Housing material |
Aluminium |
| Orientation |
Landscape/Portrait |
| Accepts padlock |
No |
| Logistics data |
| Master (outer) case width |
405 mm |
| Master (outer) case length |
310 mm |
| Master (outer) case height |
445 mm |
| Master (outer) case gross weight |
20.7 kg |
| Products per master (outer) case |
4 pc(s) |
| Country of origin |
China |
| Master (outer) case net weight |
17.4 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
80 pc(s) |
Features
Neomounts DS70-250BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black
Product Description
The Neomounts DS70-250BL2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.
The DS70-250BL2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.
The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.
Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
