Stock Status: 1x unit in stock

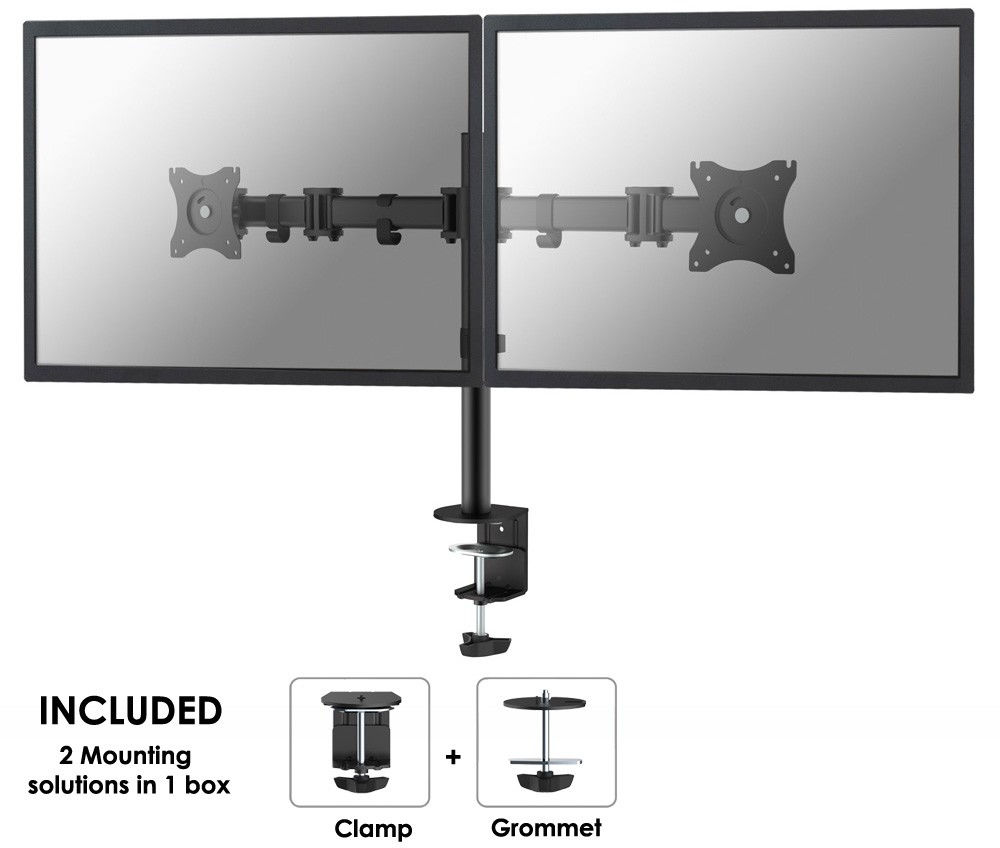

The Neomounts desk mount, model NM-D135DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41,5 centimetres. Depth adjustable from 0 to 42,7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D135DBLACK has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specs
| Weight & dimensions |
| Depth |
427 mm |
| Height |
415 mm |
| Weight |
5 kg |
| Packaging data |
| Package width |
150 mm |
| Package depth |
130 mm |
| Package height |
473 mm |
| Package weight |
4.4 kg |
| Package net weight |
4.44 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Height adjustment range |
0 - 415 mm |
| Depth adjustment range |
0 - 427 mm |
| Tilt adjustment |
Yes |
| Tilt angle range |
0 - 90° |
| Swivelling |
Yes |
| Swivel angle |
180° |
| Swivel angle range |
0 - 180° |
| Rotating |
Yes |
| Angle of rotation |
360° |
| Mounting |
| Number of displays supported |
2 |
| Maximum weight capacity (per display) |
8 kg |
| Maximum screen size |
68.6 cm (27") |
| Mounting type |
Desk |
| Maximum weight capacity |
8 kg |
| Minimum screen size |
25.4 cm (10") |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Mounting |
Clamp/Grommet |
| Panel mounting interface |
75 x 75 mm |
| Desk thickness (min) |
1 cm |
| Desk thickness (max) |
9 cm |
| Distance to the wall (min) |
4 cm |
| Distance to the wall (max) |
43 cm |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Logistics data |
| Master (outer) case width |
495 mm |
| Master (outer) case length |
315 mm |
| Master (outer) case height |
270 mm |
| Master (outer) case gross weight |
20.1 kg |
| Products per master (outer) case |
4 pc(s) |
| Country of origin |
China |
| Master (outer) case net weight |
17.8 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
120 pc(s) |
Features
Neomounts NM-D135DBLACK Monitor arm 10-27". Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 90°. Product colour: Black
Product Description
The Neomounts desk mount, model NM-D135DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41,5 centimetres. Depth adjustable from 0 to 42,7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D135DBLACK has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
