Stock Status: 1x unit in stock

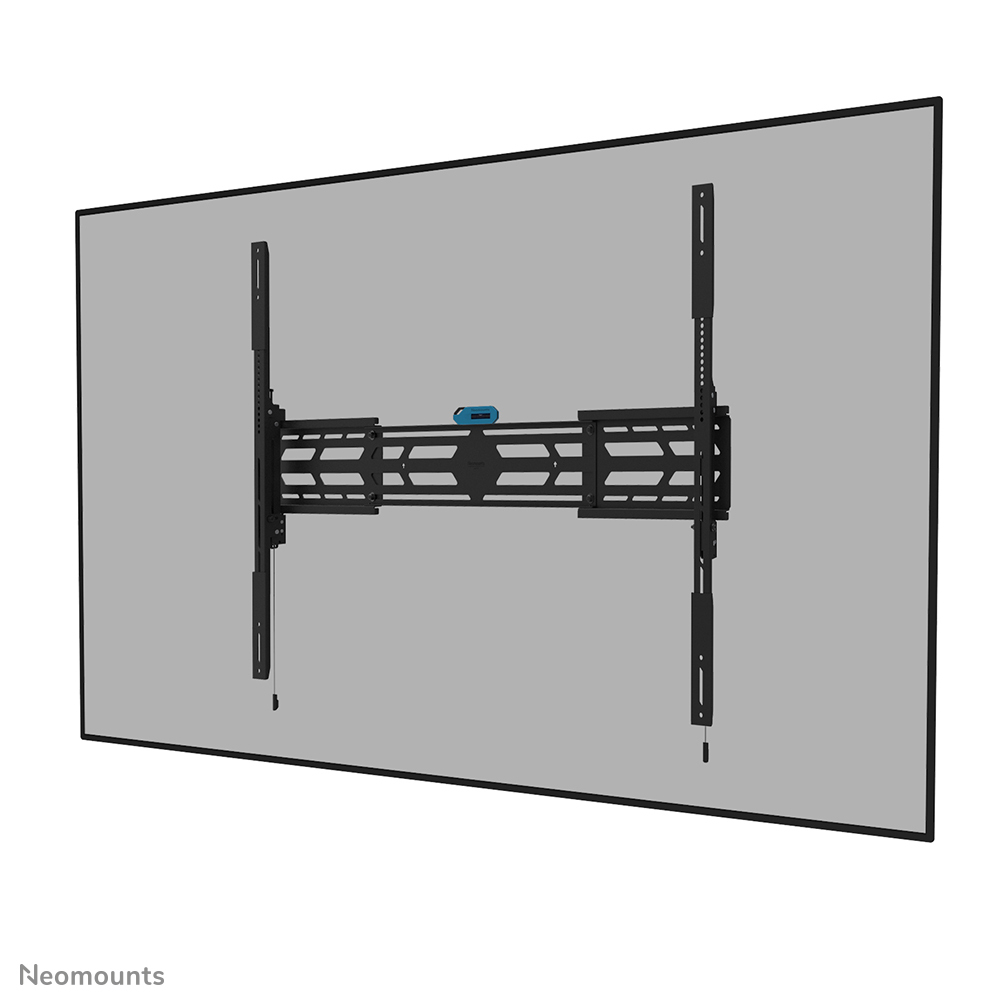

The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.
The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Specs
| Weight & dimensions |
| Width |
1600 mm |
| Depth |
67 mm |
| Height |
936 mm |
| Packaging data |
| Package width |
222 mm |
| Package depth |
98 mm |
| Package height |
918 mm |
| Package weight |
11.7 kg |
| Package net weight |
11.7 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment range |
0 - 20 mm |
| Angle of rotation |
6° |
| Pivot angle |
-3 - 3° |
| Other features |
| Width adjustment range |
893 - 1600 mm |
| Warranty period |
5 year(s) |
| Mounting |
| Maximum weight capacity |
160 kg |
| Maximum screen size |
2.79 m (110") |
| Mounting type |
Wall |
| Minimum screen size |
139.7 cm (55") |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
1500 x 900 mm |
| Number of displays supported |
1 |
| Suitable for TV |
Yes |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,300 x 900,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,460 x 640,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x |
| Distance to the wall (max) |
6.7 cm |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Orientation |
Landscape/Portrait |
| Accepts padlock |
Yes |
| Logistics data |
| Master (outer) case width |
211 mm |
| Master (outer) case length |
242 mm |
| Master (outer) case height |
938 mm |
| Master (outer) case gross weight |
23.9 kg |
| Products per master (outer) case |
2 pc(s) |
| Country of origin |
China |
| Master (outer) case net weight |
20.3 kg |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
30 pc(s) |
Features
Neomounts heavy duty TV wall mount. Maximum weight capacity: 160 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.79 m (110"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 1500 x 900 mm. Height adjustment. Product colour: Black
Product Description
The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.
The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
