Stock Status: 1x unit in stock

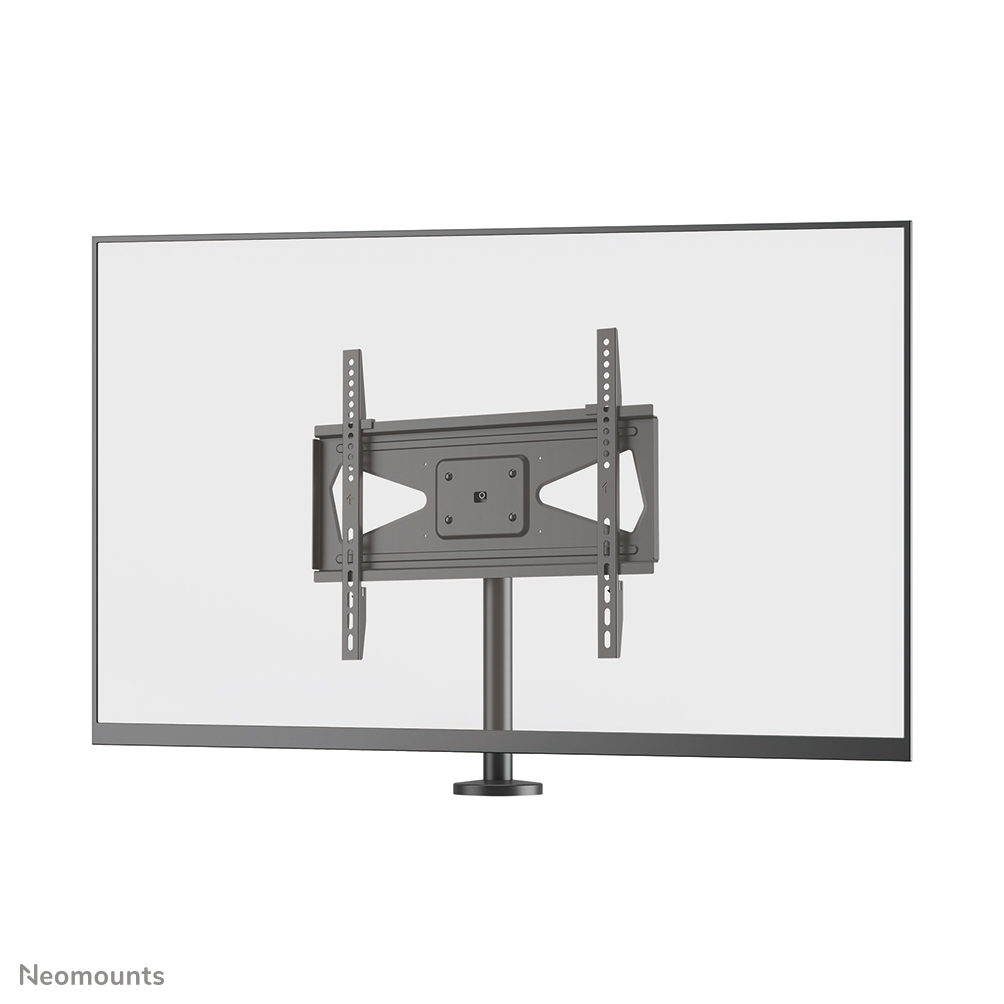

The Neomounts DS42-430BL14 is a bolt-down TV desk mount for screens up to 55" with a weight capacity of 50 kg. The TV mount features a practical swivel option (60°) to easily position the TV in the optimum viewing angle.
The DS42-430BL14 is suitable for screens that meet pattern 100x100 to 400x400 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. Cables can be routed neatly through the rod and table top thanks to the internal cable management. The bolt down base ensures solid installation of the mount to the desk.
Specs
| Weight & dimensions |
| Width |
534 mm |
| Depth |
125 mm |
| Depth (min) |
12.5 cm |
| Depth (max) |
12.5 cm |
| Height |
627 mm |
| Weight |
3.93 kg |
| Packaging data |
| Package width |
230 mm |
| Package depth |
138 mm |
| Package height |
560 mm |
| Package weight |
4.6 kg |
| Mounting |
| Number of displays supported |
1 |
| Maximum weight capacity (per display) |
50 kg |
| Maximum screen size |
139.7 cm (55") |
| Mounting type |
Desk |
| Maximum weight capacity |
50 kg |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
400 x 400 mm |
| Minimum screen size |
81.3 cm (32") |
| Panel mounting interface |
100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400 |
| Ergonomics |
| Swivelling |
Yes |
| Swivel angle range |
-30 - 30° |
| Cable management |
Yes |
| Other features |
| Mounting |
Bolt-through |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Technical details |
| Country of origin |
China |
| Mounting option |
Bolt-down |
| Warranty period |
5 year(s) |
| Logistics data |
| Master (outer) case width |
480 mm |
| Master (outer) case length |
295 mm |
| Master (outer) case height |
580 mm |
| Master (outer) case gross weight |
19.7 kg |
| Master (outer) case net weight |
18.4 kg |
| Products per master (outer) case |
4 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per pallet (EU) |
64 pc(s) |
Features
Neomounts DS42-430BL14 TV stand 32-55"- bolt-down - swivel. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Swivel angle range: -30 - 30°. Product colour: Black
Product Description
The Neomounts DS42-430BL14 is a bolt-down TV desk mount for screens up to 55" with a weight capacity of 50 kg. The TV mount features a practical swivel option (60°) to easily position the TV in the optimum viewing angle.
The DS42-430BL14 is suitable for screens that meet pattern 100x100 to 400x400 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. Cables can be routed neatly through the rod and table top thanks to the internal cable management. The bolt down base ensures solid installation of the mount to the desk.
