Stock Status: 1x unit in stock

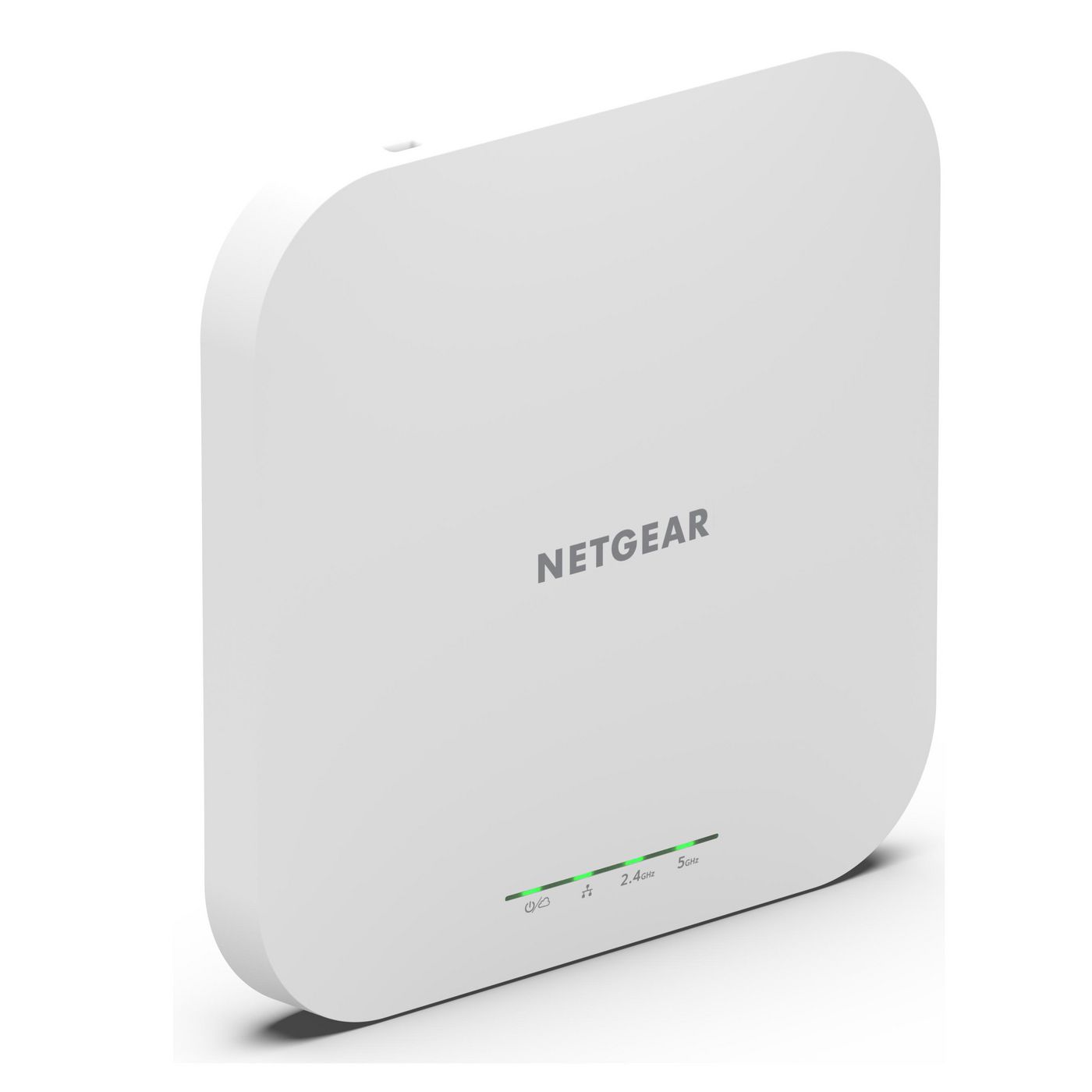

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610 is a wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610 is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come.
The WAX610 is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610 also comes with an intuitive local management GUI as one of the choices. The WAX610 features 2x2 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.
Package Contents
- WAX610 Insight Managed Wireless Access Point
- Wall/ceiling mount kit
- Installation guide
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Width |
160.9 mm |
| Depth |
160.9 mm |
| Height |
33.2 mm |
| Weight |
412 g |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
0 |
| DC-in jack |
Yes |
| Power |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
12 V |
| Input current |
2.5 A |
| Security |
| Security algorithms |
EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3 |
| MAC address filtering |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| Number of SSID supported |
8 |
| Auto Wireless Distribution System (WDS) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Antenna |
| Antenna type |
Internal |
| Antenna gain level (max) |
4.5 dBi |
| Design |
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
LAN, Power, Status |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
600 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Number of users |
250 user(s) |
| Auto MDI/MDI-X |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Spread spectrum method |
OFDM, OFDMA |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Packaging data |
| Package width |
220 mm |
| Package depth |
455 mm |
| Package height |
235 mm |
| Package weight |
3.98 kg |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Mounting kit |
Yes |
Features
NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Access Point (WAX610). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
Product Description
Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610 is a wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610 is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come.
The WAX610 is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610 also comes with an intuitive local management GUI as one of the choices. The WAX610 features 2x2 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.
Package Contents
- WAX610 Insight Managed Wireless Access Point
- Wall/ceiling mount kit
- Installation guide
