Stock Status: 1x unit in stock
Faster, Smarter, More Secure For the AI-Driven Enterprise

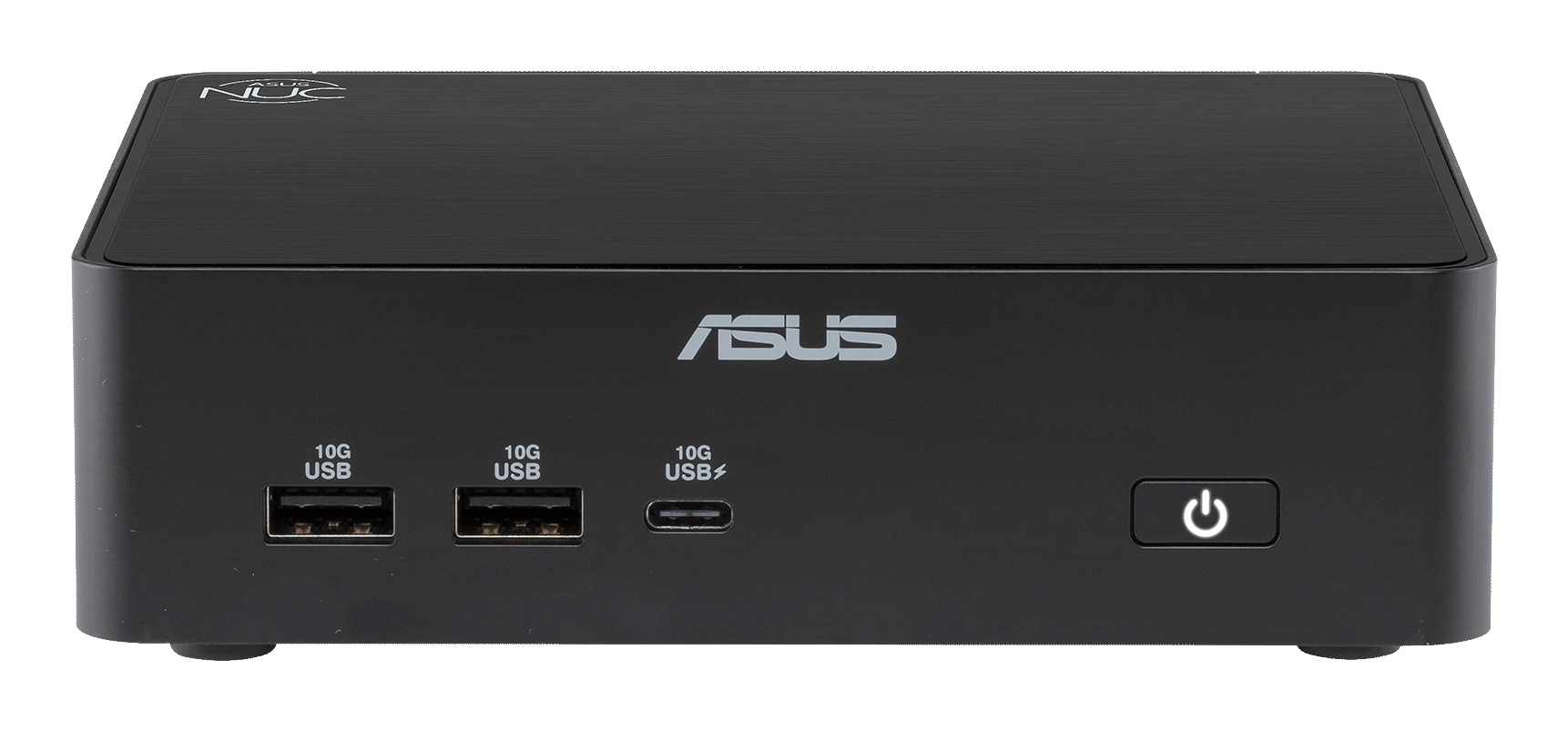

The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Specs
| Processor |
| Built-in processor |
Yes |
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 7 |
| Processor generation |
Intel® Core™ Ultra (Series 3) |
| Processor model |
356H |
| Processor cores |
16 |
| Processor threads |
16 |
| Processor boost frequency |
4.7 GHz |
| Performance cores |
4 |
| Efficient cores |
8 |
| Low Power Efficient-cores |
4 |
| Performance-core Max Turbo Frequency |
4.7 GHz |
| Efficient-core Max Turbo Frequency |
3.5 GHz |
| Low Power Efficient-core Max Turbo Frequency |
3.3 GHz |
| Performance-core base frequency |
1.9 GHz |
| Efficient-core base frequency |
1.5 GHz |
| Low Power Efficient-core Base Frequency |
1500 MHz |
| Processor cache |
18 MB |
| Networking |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
Intel Wi-Fi 7 BE211 |
| LAN controller |
Intel I226-V |
| Bluetooth |
Yes |
| Bluetooth version |
6.0 |
| Ports & interfaces |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| HDMI version |
2.1 |
| Thunderbolt 4 ports quantity |
2 |
| DC-in jack |
Yes |
| Memory |
| Internal memory installed |
No |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
128 GB |
| Memory channels |
Dual-channel |
| Audio |
| Built-in speaker(s) |
No |
| Power |
| Power supply type |
External AC adapter |
| Weight & dimensions |
| Width |
144 mm |
| Depth |
117 mm |
| Height |
42 mm |
| Weight |
910 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
0 - 92% |
| Storage |
| Storage drives installed |
No |
| Supported storage drive types |
SSD |
| Storage drive sizes supported |
M.2 |
| SSD form factor |
M.2 |
| Storage drive interface |
PCI Express |
| Number of storage drives supported |
2 |
| Maximum storage capacity |
8 TB |
| Design |
| Product colour |
Black |
| Cooling type |
Active |
| Product type |
Mini PC barebone |
| On/off switch |
Yes |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| VESA mounting |
Yes |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Graphics |
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| On-board graphics card model |
Intel® Graphics |
Features
ASUS NUC 16 Pro RNUC16GDKU760000. Product type: Mini PC barebone. Number of memory slots: 2, Maximum internal memory: 128 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Maximum storage capacity: 8 TB. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 6.0. Cooling type: Active
Product Description
Faster, Smarter, More Secure For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
