Stock Status: 1x unit in stock

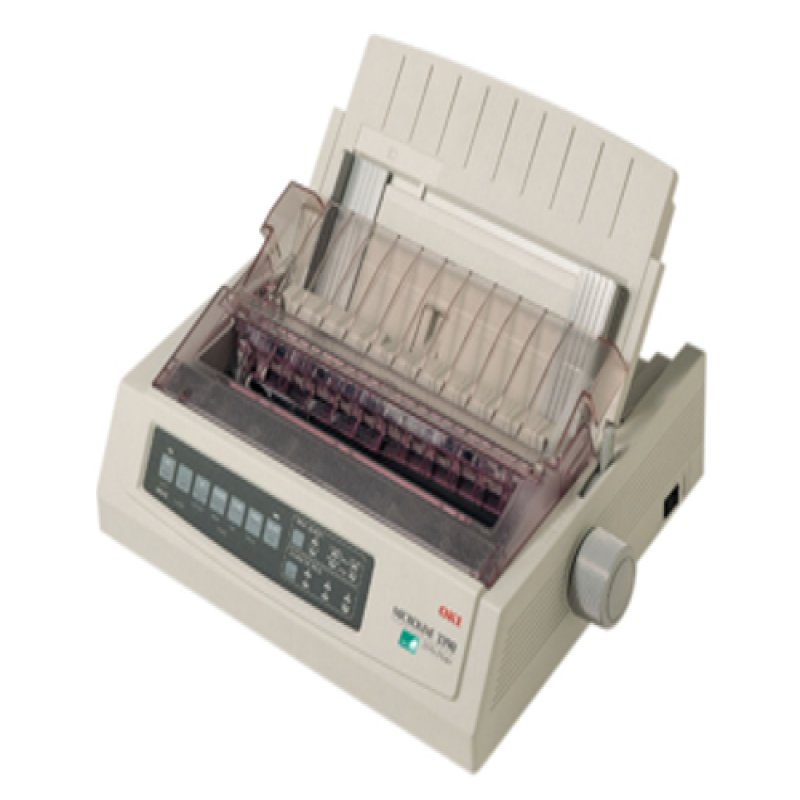

Versatile forms printer with 24 pin print head for improved print quality
- 80 column dot-matrix printer;
- 24 pin printhead with Oki reliability;
- 390 characters per second print speed;
- Multi-part paper handling (original + 3 copies);
- Ideal for general use and printing of invoices, statements, management information etc.
The Microline 3390 narrow and wide carriage printer is designed for users who require excellent quality and flexibility from a single printer. The Microline 3390 is ideal for volume applications requiring high throughput and flexible changing between various print media. High reliability, ease of use and various in-built barcodes makes this printer the ideal tool for industrial, commercial, service, small business and office environments.
Specs
| Technical details |
| Emulations |
LQ, Esc/P2, IBM ProPrinter X24/XL24 |
| Noise level |
57 dB |
| Maximum number of copies |
7 copies |
| Weight & dimensions |
| Width |
398 mm |
| Depth |
345 mm |
| Height |
116 mm |
| Weight |
5.8 kg |
| Printing |
| Maximum print speed |
390 cps |
| Maximum print speed (LQ) |
87 cps |
| Normal print speed |
260 cps |
| Character pitch |
10,12,17.1,20 cpi |
| Character density |
160 cpi |
| Maximum number of copies |
7 copies |
| Built-in barcodes |
1D,Code-128 Codabar Library,EAN13,EAN8,POSTNET,UPC-A,UPC-E |
| Colour |
N |
| Maximum resolution |
360 x 360 DPI |
| Print quality |
| Colour |
N |
| Maximum resolution |
360 x 360 DPI |
| Printing width |
80 characters |
| Paper handling |
| Standard tray media types |
Envelopes,Labels |
| Paper tray media types |
Envelopes, Labels |
| Power |
| Power consumption (typical) |
30.4 W |
| AC input voltage |
220-240 V |
| AC input frequency |
50 - 60 Hz |
| System requirements |
| Windows operating systems supported |
Y |
| Print technology |
| Print head |
24-pin |
| Print direction |
Bi-direction |
| Standard printer languages |
Epson ESC/P2,IBM ProPrinter |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
5 - 95% |
| Print quality |
| Resolution |
360 x 360 pixels |
| Character pitch |
20 cpi |
| Character density |
160 cpi |
| Printing width |
80 characters |
| Paper handling |
| Paper dimensions |
165 x 91 |
| Supported media weight(s) |
45 - 90 g/m² |
| Weight & dimensions |
| Weight |
8.4 kg |
| Power |
| Power requirements |
240V, 50/60 Hz |
| Ports & interfaces |
| Standard interfaces |
Parallel, USB 2.0 |
| Optional connectivity |
Ethernet, Serial (RS-232) |
| Endurance |
| Print head life |
200 million characters |
| Ribbon life |
2 million characters |
| Mean time between failures (MTBF) |
10000 h |
| Print head |
24-pin |
| Print direction |
Bi-directional |
| Sound emission |
| Noise level |
57 dB |
| Memory |
| Buffer size |
128 KB |
| Ports & interfaces |
| Optional connectivity |
Serial (RS-232) |
| Standard interfaces |
USB 2.0, RS-232, RS-422 |
| Endurance |
| Ribbon life |
2000000 million characters |
| Memory |
| Internal memory |
0.064 MB |
| Other features |
| Power requirements |
240V, 50/60 Hz |
| Printing width |
80 characters |
| Dimensions (WxDxH) |
398 x 345 x 116 mm |
| Features |
| Buffer size |
128 KB |
| Sound pressure level (printing) |
57 dB |
| Page description languages |
Epson ESC/P2,IBM ProPrinter |
Features
OKI ML3390eco. Maximum print speed: 390 cps, Maximum resolution: 360 x 360 DPI, Maximum print speed (LQ): 87 cps. Paper tray media types: Envelopes, Labels. Buffer size: 128 KB, Sound pressure level (printing): 57 dB, Page description languages: Epson ESC/P2,IBM ProPrinter. Standard interfaces: Parallel, USB 2.0, Optional connectivity: Ethernet, Serial (RS-232). Print head: 24-pin, Print direction: Bi-directional, Print head life: 200 million characters
Product Description
Versatile forms printer with 24 pin print head for improved print quality
- 80 column dot-matrix printer;
- 24 pin printhead with Oki reliability;
- 390 characters per second print speed;
- Multi-part paper handling (original + 3 copies);
- Ideal for general use and printing of invoices, statements, management information etc.
The Microline 3390 narrow and wide carriage printer is designed for users who require excellent quality and flexibility from a single printer. The Microline 3390 is ideal for volume applications requiring high throughput and flexible changing between various print media. High reliability, ease of use and various in-built barcodes makes this printer the ideal tool for industrial, commercial, service, small business and office environments.
