Stock Status: 1x unit in stock

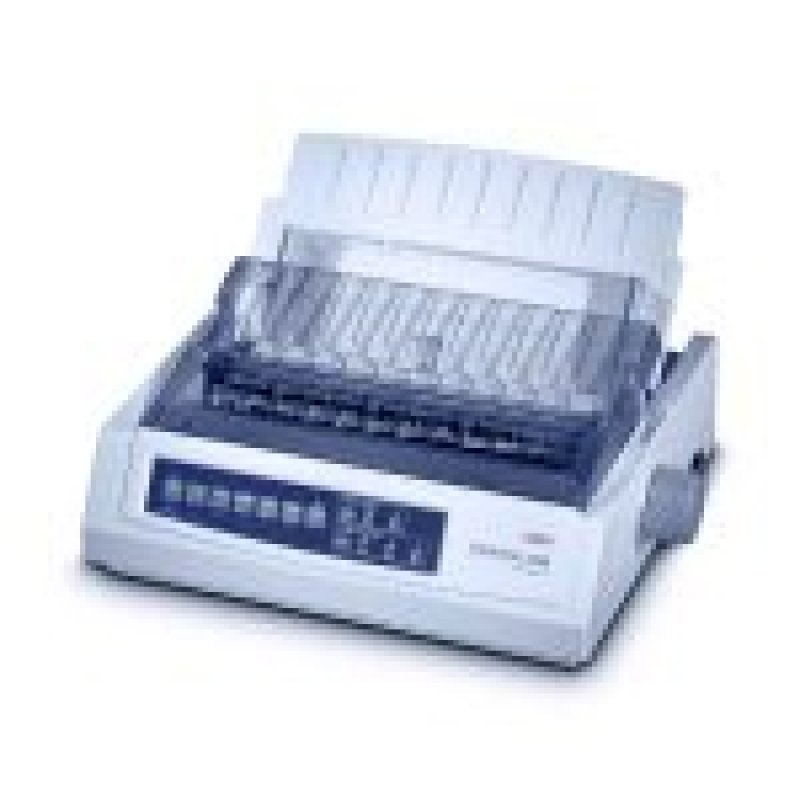

The Microline 3390 narrow and wide carriage printer is designed for users who require excellent quality and flexibility from a single printer. The Microline 3390 is ideal for volume applications requiring high throughput and flexible changing between various print media. High reliability, ease of use and various in-built barcodes makes this printer the ideal tool for industrial, commercial, service, small business and office environments.
- 80 column dot-matrix printer
- High durability 24 pin print head
- Up to 390 characters per second print speed
- Multi-part paper handling (original + 3 copies)
- Emulation: Epson LQ, Esc/P2, IBM ProPrinter X24/XL24
Specs
| Weight & dimensions |
| Weight |
6.9 kg |
| Printing |
| Maximum print speed |
390 cps |
| Maximum print speed (draft) |
260 cps |
| Maximum print speed (LQ) |
104 cps |
| Normal print speed |
312 cps |
| Character pitch |
10,12,15,17.1,20 cpi |
| Maximum number of copies |
4 copies |
| Typestyles supported |
Double height, Double width, Emphasised, Enhanced, Italics, Subscript, Superscript, Underline |
| Bitmap fonts |
Gothic, OCR-B, Orator, Prestige |
| Scalable fonts |
Roman |
| Colour |
N |
| Maximum resolution |
360 x 360 DPI |
| Maximum printing width (columns) |
80 |
| Print quality |
| Colour |
N |
| Maximum resolution |
360 x 360 DPI |
| Maximum printing width (columns) |
80 |
| Paper handling |
| Paper feed |
Pull tractor, Push tractor |
| Cut sheet top margin |
0.5 mm |
| Roll top margin |
2.12 mm |
| Power |
| Input frequency |
50 - 60 Hz |
| Input voltage |
230V |
| AC input voltage |
230 V |
| AC input frequency |
50 - 60 Hz |
| Print technology |
| Print head |
24-pin |
| Ports & interfaces |
| Optional connectivity |
Serial (RS-232) |
| Standard interfaces |
Parallel, USB 2.0 |
| Endurance |
| Print head life |
200 million characters |
| Ribbon life |
2 million characters |
| Mean time between failures (MTBF) |
10000 h |
| Print head |
24-pin |
| Sound emission |
| Noise level |
54 dB |
| Noise level (quiet mode) |
50 dB |
| Memory |
| Buffer size |
128 KB |
| Other features |
| Dimensions (WxDxH) |
398 x 345 x 116 mm |
| Network ready |
N |
| Features |
| Buffer size |
128 KB |
| Sound pressure level (printing) |
54 dB |
| Sound pressure level (quiet mode) |
50 dB |
Features
OKI Microline 3390 ECO Version. Maximum print speed: 390 cps, Maximum resolution: 360 x 360 DPI, Maximum print speed (draft): 260 cps. Paper feed: Pull tractor, Push tractor, Roll top margin: 2.12 mm. Buffer size: 128 KB, Sound pressure level (printing): 54 dB, Sound pressure level (quiet mode): 50 dB. Standard interfaces: Parallel, USB 2.0, Optional connectivity: Serial (RS-232). Print head: 24-pin, Print head life: 200 million characters, Ribbon life: 2 million characters
Product Description
The Microline 3390 narrow and wide carriage printer is designed for users who require excellent quality and flexibility from a single printer. The Microline 3390 is ideal for volume applications requiring high throughput and flexible changing between various print media. High reliability, ease of use and various in-built barcodes makes this printer the ideal tool for industrial, commercial, service, small business and office environments.
- 80 column dot-matrix printer
- High durability 24 pin print head
- Up to 390 characters per second print speed
- Multi-part paper handling (original + 3 copies)
- Emulation: Epson LQ, Esc/P2, IBM ProPrinter X24/XL24
