Stock Status: 1x unit in stock

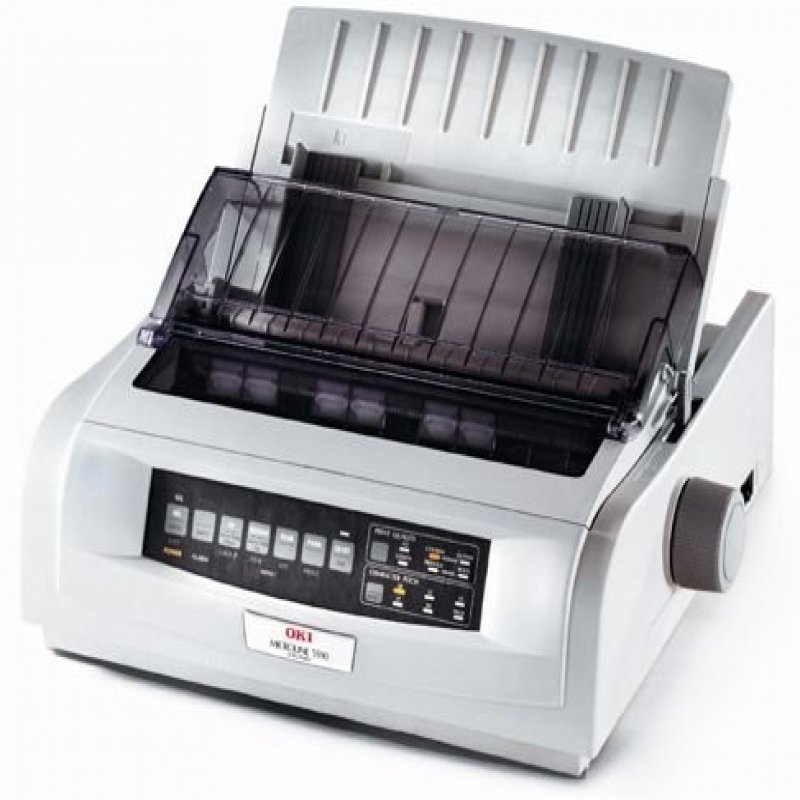

- 9-pin, 80 column dot matrix printer
- Up to 570 characters per second (cps) print speed
- Eco-friendly, with power consuption in sleep mode at just 1.5W
- Capable of printing up to 1 orginal and 5 copies
- 4 million character ribbon life
High speed, high volume, outstanding reliability
The ML5520eco printer is suited to high speed, high volume data and word processing applications where fast throughput and flexible paper management are required.
This 9-pin, narrow carriage, impact printer is engineered to be tough enough for dedicated printing in the most demanding environments. With outstanding reliability, ease-of-use and barcoding facilities and the ability to run twice as long as most printers in their class, they are ideal for supporting forms printing at customer service points in wholesale and service environments.
Precision, Flexibility and Resilience
The ML5520eco can accommodate multipart forms and stock that are up to twice as thick as those that fit our nearest competitor. Their relentless performance comes from OKI’s unique, high durability printhead design; and a light, strong, efficient motor. The long-last rack-and-pinion drive system and a protective, impact-resistance chassis, make it resilient to even the toughest environments.
A patented optical sensor places the printhead for precise output, and the auto-tear feature accurately positions your continuous forms for a clean tear right at the perforation - eliminating wasted forms and facilitating your day-to-day forms printing.
Eco-friendly and cost effective
The ML5520eco has been developed to be eco-friendly at a CarbonZero manufacturing site. With power consumption at just 1.5W in sleep mode, your running costs and energy consumption are kept to a minimum, as well as reducing your carbon footprint.
OKI’s commitment to customers
The OKI brand is one of proven reliability and value. We provide printers that increase our customers’ long-term business performance without impacting their budget.
With almost half a century of experience in the impact printer industry, with OKI you are guaranteed a best-in-class, low cost, reliable and easy to use printer. And, for total peace of mind just register your product and take advantage of our extended three-year warranty at no extra cost.
Specs
| Weight & dimensions |
| Width |
398 mm |
| Depth |
345 mm |
| Height |
120 mm |
| Weight |
5.9 kg |
| Printing |
| Maximum print speed |
570 cps |
| Maximum print speed (draft) |
570 cps |
| Maximum print speed (LQ) |
95 cps |
| Normal print speed |
380 cps |
| Character pitch |
10,12,15,17.1,20 cpi |
| Maximum number of copies |
5 copies |
| Typestyles supported |
Bold, Double height, Double width, Emphasised, Enhanced, Italics, Overscore, Subscript, Superscript, Underline |
| Bitmap fonts |
OCR-B |
| Scalable fonts |
Gothic, Courier |
| Colour |
N |
| Maximum resolution |
240 x 216 DPI |
| Maximum printing width (columns) |
160 |
| Print quality |
| Colour |
N |
| Maximum printing width (columns) |
160 |
| Maximum resolution |
240 x 216 DPI |
| Paper handling |
| Paper feed |
Push tractor |
| Power |
| Voltage tolerance |
10% |
| AC input voltage |
220 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Print technology |
| Print head |
9-pin |
| Ports & interfaces |
| Standard interfaces |
Parallel, RS-232, USB 2.0 |
| Optional connectivity |
Ethernet, Serial (RS-232) |
| Endurance |
| Print head life |
200 million characters |
| Mean time between failures (MTBF) |
20000 h |
| Print head |
9-pin |
| Sound emission |
| Noise level |
56 dB |
| Noise level (quiet mode) |
52 dB |
| Memory |
| Buffer size |
128 KB |
| Certificates |
| Energy Star certified |
Y |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Features |
| Buffer size |
128 KB |
| Sound pressure level (printing) |
56 dB |
| Sound pressure level (quiet mode) |
52 dB |
Features
OKI ML5520eco. Maximum print speed: 570 cps, Maximum resolution: 240 x 216 DPI, Maximum print speed (draft): 570 cps. Paper feed: Push tractor. Buffer size: 128 KB, Sound pressure level (printing): 56 dB, Sound pressure level (quiet mode): 52 dB. Standard interfaces: Parallel, RS-232, USB 2.0, Optional connectivity: Ethernet, Serial (RS-232). Print head: 9-pin, Print head life: 200 million characters, Mean time between failures (MTBF): 20000 h
Product Description
- 9-pin, 80 column dot matrix printer
- Up to 570 characters per second (cps) print speed
- Eco-friendly, with power consuption in sleep mode at just 1.5W
- Capable of printing up to 1 orginal and 5 copies
- 4 million character ribbon life
High speed, high volume, outstanding reliability
The ML5520eco printer is suited to high speed, high volume data and word processing applications where fast throughput and flexible paper management are required.
This 9-pin, narrow carriage, impact printer is engineered to be tough enough for dedicated printing in the most demanding environments. With outstanding reliability, ease-of-use and barcoding facilities and the ability to run twice as long as most printers in their class, they are ideal for supporting forms printing at customer service points in wholesale and service environments.
Precision, Flexibility and Resilience
The ML5520eco can accommodate multipart forms and stock that are up to twice as thick as those that fit our nearest competitor. Their relentless performance comes from OKI’s unique, high durability printhead design; and a light, strong, efficient motor. The long-last rack-and-pinion drive system and a protective, impact-resistance chassis, make it resilient to even the toughest environments.
A patented optical sensor places the printhead for precise output, and the auto-tear feature accurately positions your continuous forms for a clean tear right at the perforation - eliminating wasted forms and facilitating your day-to-day forms printing.
Eco-friendly and cost effective
The ML5520eco has been developed to be eco-friendly at a CarbonZero manufacturing site. With power consumption at just 1.5W in sleep mode, your running costs and energy consumption are kept to a minimum, as well as reducing your carbon footprint.
OKI’s commitment to customers
The OKI brand is one of proven reliability and value. We provide printers that increase our customers’ long-term business performance without impacting their budget.
With almost half a century of experience in the impact printer industry, with OKI you are guaranteed a best-in-class, low cost, reliable and easy to use printer. And, for total peace of mind just register your product and take advantage of our extended three-year warranty at no extra cost.
