Stock Status: 1x unit in stock
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
205.5 mm |
| Depth |
181.5 mm |
| Height |
37.1 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
0 |
| DC-in jack |
Yes |
| Power |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power consumption (typical) |
10.15 W |
| Security |
| Security algorithms |
64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Number of SSID supported |
16 |
| Access Control List (ACL) |
Yes |
| Antenna |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antenna features |
Integrated antenna |
| Antennas quantity |
5 |
| Antenna gain level (max) |
5 dBi |
| Design |
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| On/off switch |
Yes |
| Reset button |
Yes |
| LED indicators |
Power, WLAN |
| Performance |
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| 6 GHz |
No |
| Maximum data transfer rate |
1350 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
450 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Cabling technology |
10/100/1000Base-T(X) |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
VLAN mapping |
| Rate limiting |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Quality of Service (QoS) support |
Yes |
| BeamForming |
Yes |
| Transmitting power (CE) |
23 dBm |
| Transmitting power (FCC) |
24 dBm |
| Packaging data |
| Package width |
228 mm |
| Package depth |
340 mm |
| Package height |
65 mm |
| Package weight |
910 g |
| Package type |
Box |
| Management features |
| Web-based management |
Yes |
| Syslog |
Yes |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| AC adapter included |
Yes |
| PoE adapter included |
Yes |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Mobile network |
| SIM card slot |
No |
| Sustainability |
| Sustainability compliance |
Yes |
Features

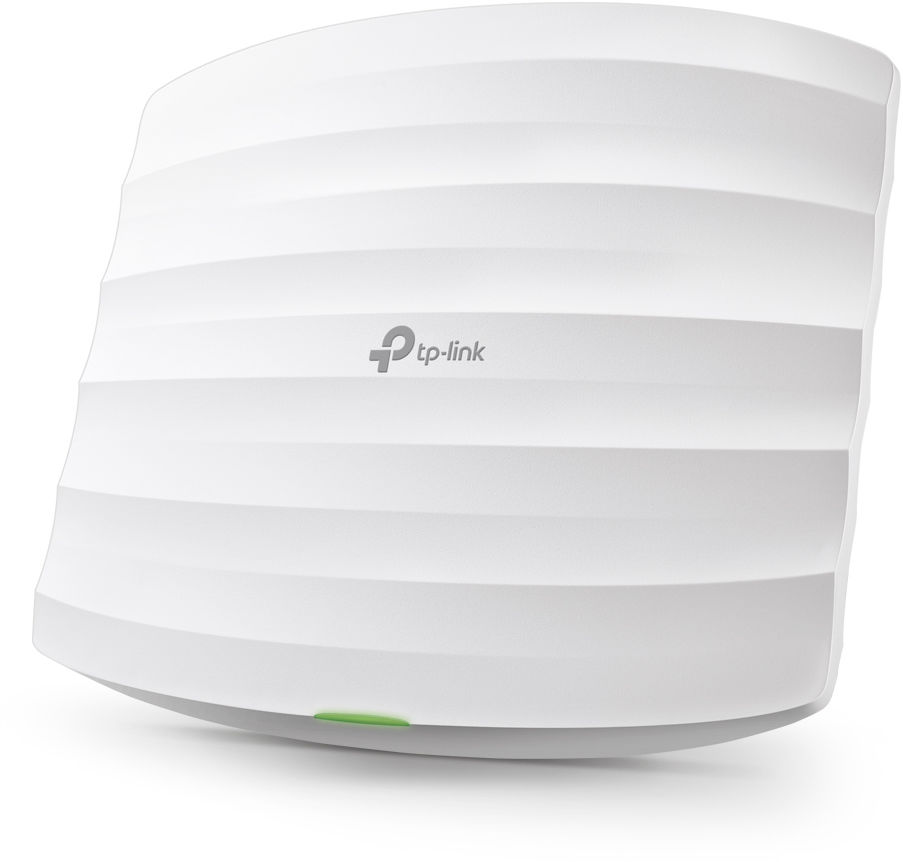

TP-Link Omada EAP225. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1350 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Product Description
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
