Stock Status: 1x unit in stock

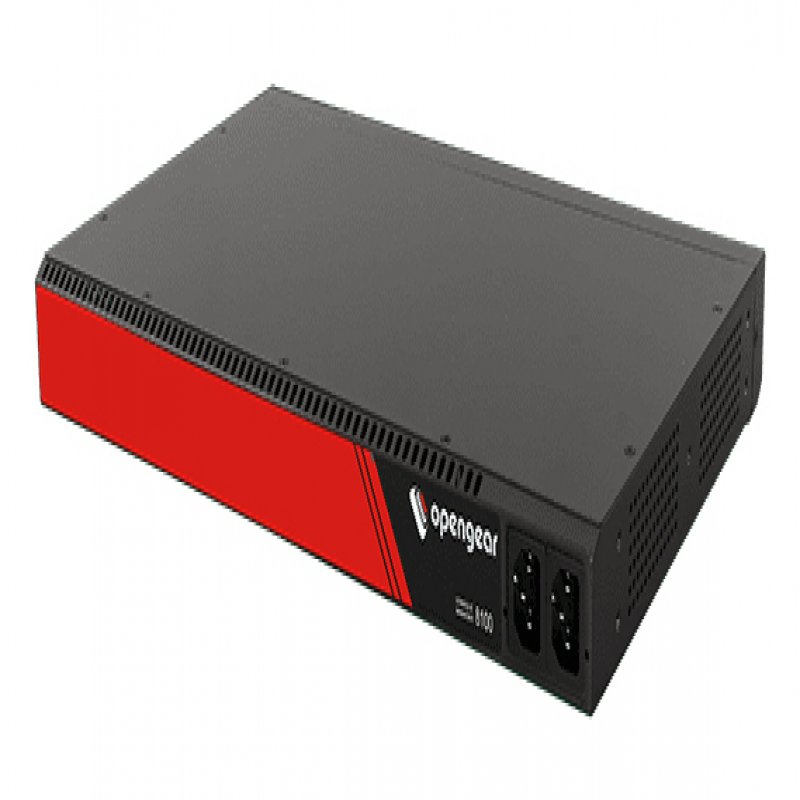

CM8100 Console Server
The CM8100 is Opengear’s newest console manager for data centers and enterprise networks. Building on 18 years of Opengear product innovation and leadership, the CM8100 Console Manager provides up to 48 serial ports, enterprise-grade security using TPM 2.0 module, and independent monitoring using dual power supplies.
Connect 16, 32, or 48 serial console ports with simple straight-through cabling to Cisco®-style serial consoles reliably regardless of the state of your production network.
Host containerized applications to run across any platform or NetOps tools providing more agility and efficiency. Maximize your connectivity and keep data free from slowdowns with Dual Ethernet ports. Manage at scale through Opengear’s Lighthouse Management Software.
Designed and purpose-built energy efficient without compromising performance, the CM8100 requires less power and cooling for a lower total cost of ownership and high reliability.
Specs
| Technical details |
| Rack mounting |
Yes |
| Supported programming languages |
Perl, Python |
| MIB support |
Yes |
| Zero Touch Provisioning (ZTP) |
Yes |
| Web-based management |
Yes |
| Temperature sensor |
Yes |
| Product colour |
Black, Red |
| Compliance certificates |
RoHS |
| Security |
| Authentication method |
TACACS+, RADIUS, OpenLDAP |
| Security algorithms |
IPSec, SNMP, SSH |
| Weight & dimensions |
| Dimensions (WxDxH) |
440 x 235 x 44 mm |
| Weight |
4.5 kg |
| Ports & interfaces |
| Console port |
RS-232 |
| Serial ports quantity |
16 |
| Ethernet LAN (RJ-45) ports |
2 |
| AC outlet types |
C14 coupler |
| Power |
| Power source type |
AC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
15 W |
| Number of power supply units |
2 |
| Operational conditions |
| Operating temperature (T-T) |
5 - 50 °C |
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Memory |
| Internal memory |
2000 MB |
| Flash memory |
32000 MB |
| RAM type |
DDR4 |
| Processor |
| Processor family |
Marvel |
| Processor architecture |
ARM Cortex-A9 |
| Processor cores |
2 |
| Processor frequency |
1.6 MHz |
| Networking |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
Features
Opengear CM8116. Authentication method: TACACS+, RADIUS, OpenLDAP, Security algorithms: IPSec, SNMP, SSH. Console port: RS-232, AC outlet types: C14 coupler. Dimensions (WxDxH): 440 x 235 x 44 mm, Weight: 4.5 kg. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Internal memory: 2000 MB, Flash memory: 32000 MB, RAM type: DDR4
Product Description
CM8100 Console Server
The CM8100 is Opengear’s newest console manager for data centers and enterprise networks. Building on 18 years of Opengear product innovation and leadership, the CM8100 Console Manager provides up to 48 serial ports, enterprise-grade security using TPM 2.0 module, and independent monitoring using dual power supplies.
Connect 16, 32, or 48 serial console ports with simple straight-through cabling to Cisco®-style serial consoles reliably regardless of the state of your production network.
Host containerized applications to run across any platform or NetOps tools providing more agility and efficiency. Maximize your connectivity and keep data free from slowdowns with Dual Ethernet ports. Manage at scale through Opengear’s Lighthouse Management Software.
Designed and purpose-built energy efficient without compromising performance, the CM8100 requires less power and cooling for a lower total cost of ownership and high reliability.
