Stock Status: 1x unit in stock
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
Specs
| Other features |
| TBW rating |
100 |
| Weight & dimensions |
| Width |
117.5 mm |
| Depth |
13.5 mm |
| Height |
40 mm |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-45 - 105 °C |
| Operating relative humidity (H-H) |
5 - 98% |
| Storage relative humidity (H-H) |
5 - 98% |
| Operating shock |
1500 G |
| Operating vibration |
16 G |
| Maximum operating altitude |
36576 m |
| Power |
| Operating voltage |
3.3 V |
| Power consumption (read) |
2.84 W |
| Power consumption (idle) |
0.47 W |
| Power consumption (write) |
3.22 W |
| Power consumption (average) |
3.03 W |
| Power consumption (max) |
3.22 W |
| Ports & interfaces |
| USB connector |
USB Type-C |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| Wi-Fi |
No |
| Thunderbolt technology |
No |
| Data transfer rate |
640 Gbit/s |
| Solid state drive |
| SSD capacity |
1 TB |
| NVMe |
Yes |
| Read speed |
2100 MB/s |
| Write speed |
1900 MB/s |
| SSD form factor |
M.2 |
| Interface |
PCI Express 3.0 |
| Memory type |
3D TLC |
| Random read (4KB) |
179000 IOPS |
| Random write (4KB) |
102000 IOPS |
| Access time |
0.2 ms |
| Features |
| Product colour |
Aluminium, Grey |
| Housing material |
Aluminium, Plastic |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mean time between failures (MTBF) |
1000000 h |
| Compliance certificates |
RoHS |
| Packaging data |
| Package type |
Blister |
| Security |
| Hardware encryption |
No |
| Password protection |
No |
| TRIM support |
Yes |
| S.M.A.R.T. support |
Yes |
Features

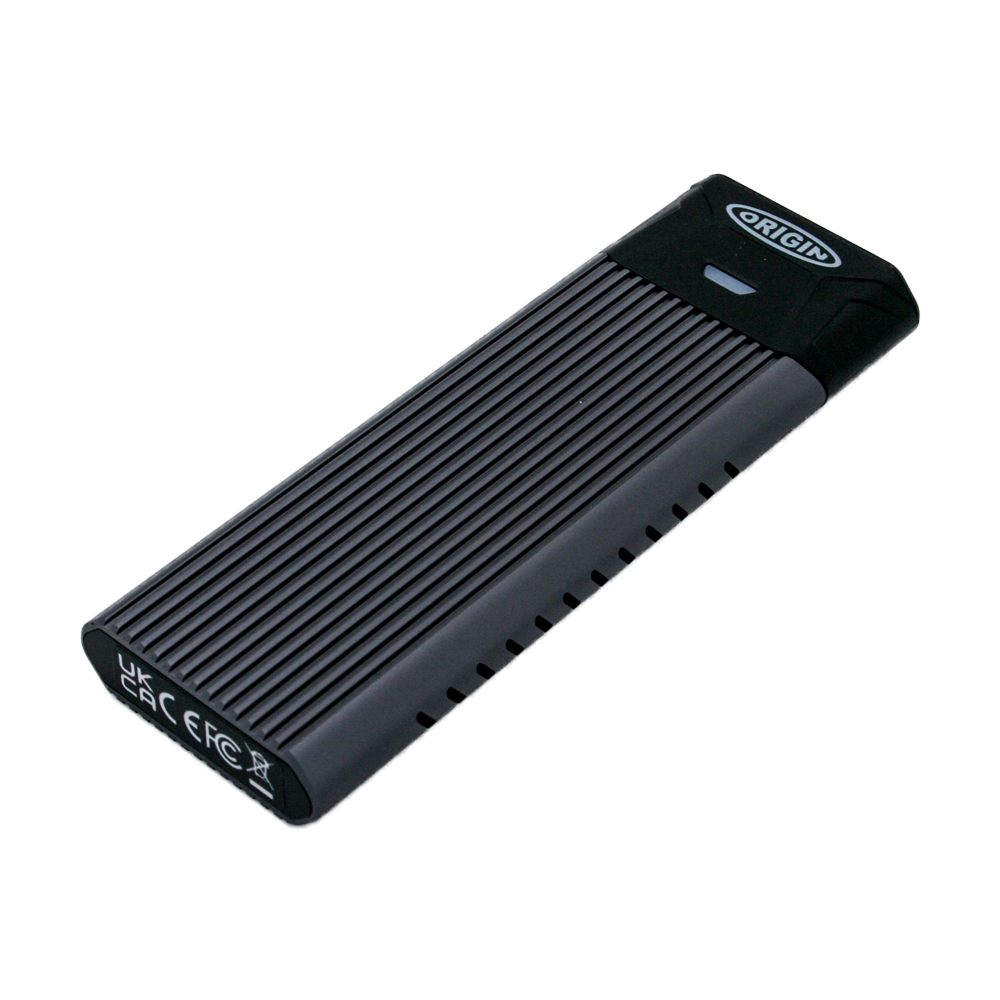

Origin Storage 1TB External NVME USB C SSD with C-C & C-A Cable. SSD capacity: 1 TB, SSD form factor: M.2. USB connector: USB Type-C, USB version: 3.2 Gen 2 (3.1 Gen 2). Read speed: 2100 MB/s, Write speed: 1900 MB/s. Data transfer rate: 640 Gbit/s. Product colour: Aluminium, Grey
Product Description
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
