Stock Status: 1x unit in stock

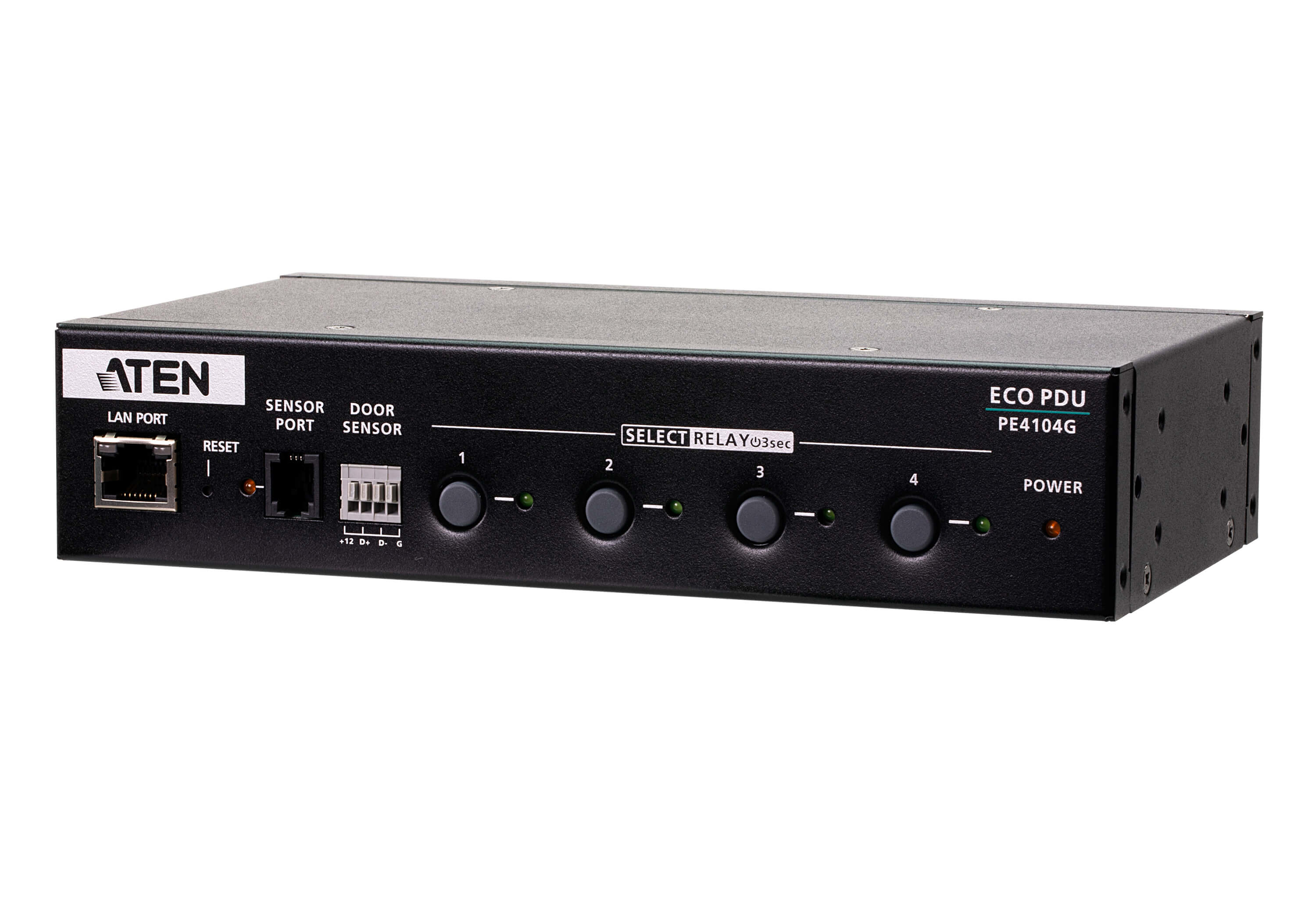

Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.
The PE4104G features the remote power control function, allowing you to control devices attached to the PDU at the PDU device level from practically any location via a TCP/IP connection. The power sequence design eliminates the risks for a power inrush to guarantee reliable operation and protects the overall system health. With the support for eco DC software, it provides an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and reboot the device in case any equipment lock-up occurs. The administrators can switch on/off or set a delay time for each power outlet or individual power outlets group whenever, wherever.
The PE4104G boasts a slim, compact form factor and supports desk mount as well as rack mount, ensuring easy installation in confined spaces. It is a smart power control box tailored for hospitality or retail applications, such as digital signages and video walls, for edge computing devices, including routers, servers and cameras, or for any data center environments where there is no need to keep the servers powered on at all times.
Specs
| Weight & dimensions |
| Width |
200 mm |
| Depth |
115 mm |
| Height |
44 mm |
| Weight |
900 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Nominal input voltage |
100-240 V |
| Maximum current |
10 A |
| Ports & interfaces |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Ethernet LAN (RJ-45) ports |
1 |
| Packaging content |
| Cables included |
AC |
| Manual |
Yes |
| Rack mount kit |
Yes |
| Design |
| Rack capacity |
1U |
| Product colour |
Black |
| Features |
| Reset button |
Yes |
| LED indicators |
Yes |
| Cable length |
3 m |
| Certification |
| Compliance certificates |
CE |
| Certification |
CE-EMC
CE-LVD |
Features
ATEN PE4104G. Rack capacity: 1U, Product colour: Black. AC outlets quantity: 4 AC outlet(s), AC outlet types: C13 coupler, Power plug: C14 coupler. Cable length: 3 m. Nominal input voltage: 100-240 V, Maximum current: 10 A. Compliance certificates: CE, Certification: CE-EMC CE-LVD
Product Description
Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.
The PE4104G features the remote power control function, allowing you to control devices attached to the PDU at the PDU device level from practically any location via a TCP/IP connection. The power sequence design eliminates the risks for a power inrush to guarantee reliable operation and protects the overall system health. With the support for eco DC software, it provides an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and reboot the device in case any equipment lock-up occurs. The administrators can switch on/off or set a delay time for each power outlet or individual power outlets group whenever, wherever.
The PE4104G boasts a slim, compact form factor and supports desk mount as well as rack mount, ensuring easy installation in confined spaces. It is a smart power control box tailored for hospitality or retail applications, such as digital signages and video walls, for edge computing devices, including routers, servers and cameras, or for any data center environments where there is no need to keep the servers powered on at all times.
