Stock Status: 1x unit in stock

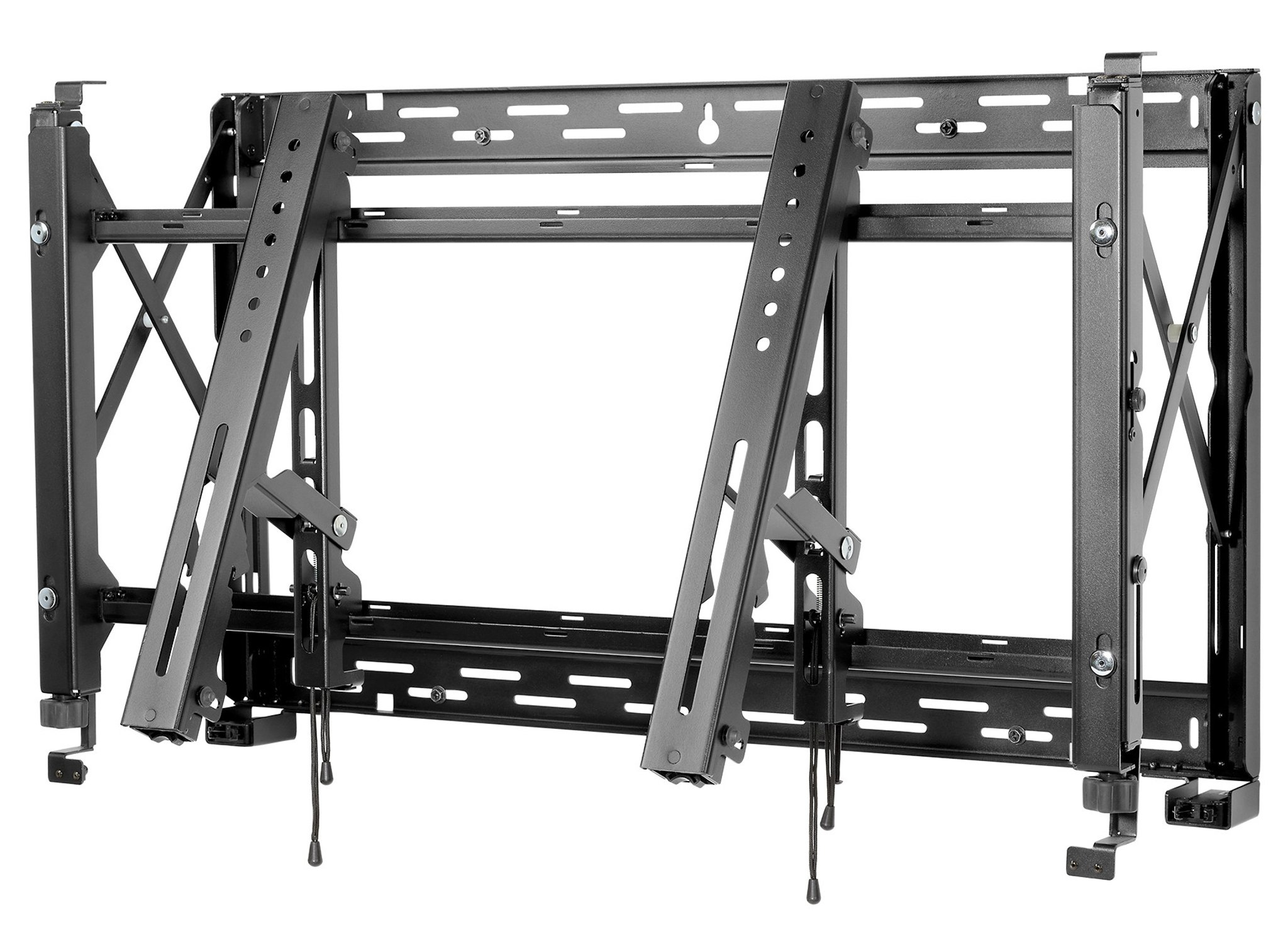

Video walls should be easy to configure, quick to install, and a snap to maintain. The DS-VW765-LQR Full-Service Video Wall Mount with a Quick Release from Peerless-AV is designed for quick service access in recessed video wall applications. It provides versatility demanded by installers. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR has a no-tool-required micro-adjustment feature and provides easy-access to any display, creating the ideal video wall. The custom wall plate spacers eliminate guesswork and on-site installation calculations and measurements, reducing installation time and cost. This innovative design, combined with a ready-to-install mount, makes this the fastest video wall installation. Loaded with time saving features, this Full-Service Video Mount is the ultimate video wall mounting solution.
Features
- Quick release pop out mechanism provides convenient display access in recessed applications
- Quick release can be disabled with a locking screw to prevent unintentional pop-outs
- Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick release to activate with gentle force
- Modular mount for unlimited video wall display configurations
- Custom wall plate spacers eliminate the guesswork and on-site installation calculations
- Tool-less micro-adjustments at 8 points allows the mount to overcome uneven walls to create a seamless video wall display
- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs make display-to-display cabling simple
Specs
| Weight & dimensions |
| Width |
904 mm |
| Depth |
97 mm |
| Depth (max) |
29.1 cm |
| Height |
543 mm |
| Weight |
14.8 kg |
| Ergonomics |
| Distance to the wall (min) |
7.8 cm |
| Distance to the wall (max) |
9.7 cm |
| Mounting |
| Maximum weight capacity |
56.8 kg |
| Maximum screen size |
165.1 cm (65") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
600 x 400 mm |
| Minimum screen size |
116.8 cm (46") |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 200,600 x 400 |
| Number of displays supported |
1 |
| Design |
| Product colour |
Black |
| Packaging content |
| Mounting kit |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging data |
| Package width |
943 mm |
| Package depth |
108 mm |
| Package height |
594 mm |
| Package weight |
17.6 kg |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
Features
Peerless DS-VW765-LQR. Maximum weight capacity: 56.8 kg, Minimum screen size: 116.8 cm (46"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Product colour: Black
Product Description
Video walls should be easy to configure, quick to install, and a snap to maintain. The DS-VW765-LQR Full-Service Video Wall Mount with a Quick Release from Peerless-AV is designed for quick service access in recessed video wall applications. It provides versatility demanded by installers. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR has a no-tool-required micro-adjustment feature and provides easy-access to any display, creating the ideal video wall. The custom wall plate spacers eliminate guesswork and on-site installation calculations and measurements, reducing installation time and cost. This innovative design, combined with a ready-to-install mount, makes this the fastest video wall installation. Loaded with time saving features, this Full-Service Video Mount is the ultimate video wall mounting solution.
Features
- Quick release pop out mechanism provides convenient display access in recessed applications
- Quick release can be disabled with a locking screw to prevent unintentional pop-outs
- Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick release to activate with gentle force
- Modular mount for unlimited video wall display configurations
- Custom wall plate spacers eliminate the guesswork and on-site installation calculations
- Tool-less micro-adjustments at 8 points allows the mount to overcome uneven walls to create a seamless video wall display
- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs make display-to-display cabling simple
