Stock Status: 1x unit in stock

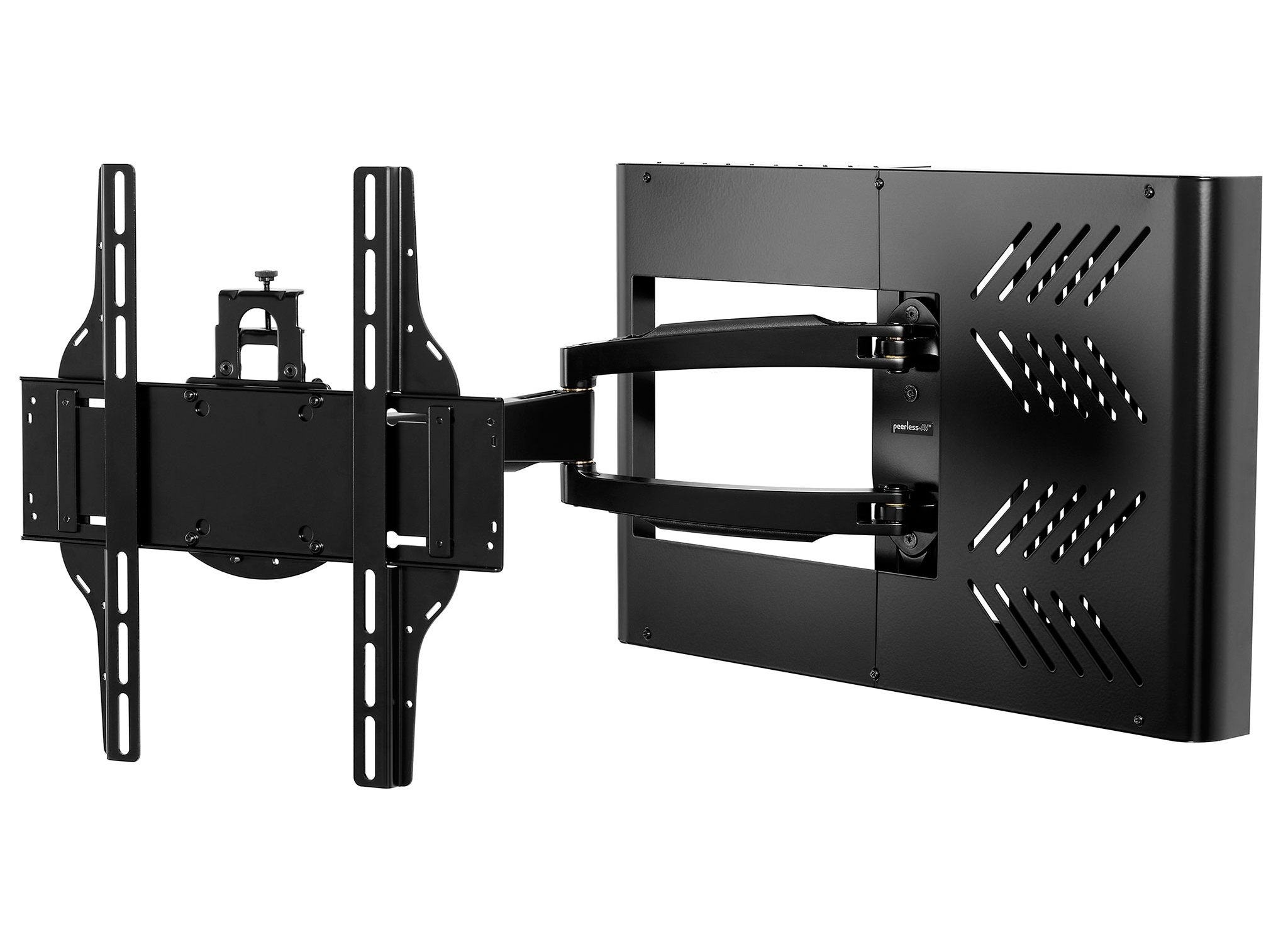

The Hospitality Wall Arm Mount with Set Top Box (STB) Enclosure was designed with theHospitality market in mind, offering installation flexibility and an aesthetically pleasingsolution for cable management and electronic storage. This articulating wall mount canbe installed easily on single and dual metal studs, wood or concrete and comes completewith attachment hardware. The enclosure provides a secure, vented storage area forelectronics to avoid the mess of tangled cables and exposed cable boxes in guest rooms/public areas. For maintenance purposes, simply remove the tamper resistant screws andthe enclosure covers can easily be removed, allowing for quick access to the STB withoutdisturbing the TV or mount itself. Additionally, the mount's open wall plate design allowsfor easy access to the wall or junction box.
Specs
| Weight & dimensions |
| Width |
584 mm |
| Depth (min) |
10.1 cm |
| Depth (max) |
56.4 cm |
| Height |
425 mm |
| Weight |
9.5 kg |
| Packaging data |
| Package width |
724 mm |
| Package depth |
127 mm |
| Package height |
483 mm |
| Package weight |
11.3 kg |
| Mounting |
| Number of displays supported |
1 |
| Maximum screen size |
139.7 cm (55") |
| Mounting type |
Wall |
| Maximum weight capacity |
36 kg |
| Minimum VESA mount |
100 x 200 mm |
| Maximum VESA mount |
400 x 400 mm |
| Minimum screen size |
109.2 cm (43") |
| Panel mounting interface |
100 x 200,400 x 400 mm |
| Ergonomics |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 15° |
| Swivel angle range |
-90 - 90° |
| Pivot angle |
-90 - 90° |
| Cable management |
Yes |
| Distance to the wall (max) |
56.4 cm |
| Distance to the wall (min) |
10.1 cm |
| Design |
| Product colour |
Black |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
Features
Peerless HA746-STB. Maximum weight capacity: 36 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 200 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -5 - 15°, Swivel angle range: -90 - 90°, Distance to the wall (min): 10.1 cm, Distance to the wall (max): 56.4 cm. Product colour: Black
Product Description
The Hospitality Wall Arm Mount with Set Top Box (STB) Enclosure was designed with theHospitality market in mind, offering installation flexibility and an aesthetically pleasingsolution for cable management and electronic storage. This articulating wall mount canbe installed easily on single and dual metal studs, wood or concrete and comes completewith attachment hardware. The enclosure provides a secure, vented storage area forelectronics to avoid the mess of tangled cables and exposed cable boxes in guest rooms/public areas. For maintenance purposes, simply remove the tamper resistant screws andthe enclosure covers can easily be removed, allowing for quick access to the STB withoutdisturbing the TV or mount itself. Additionally, the mount's open wall plate design allowsfor easy access to the wall or junction box.
