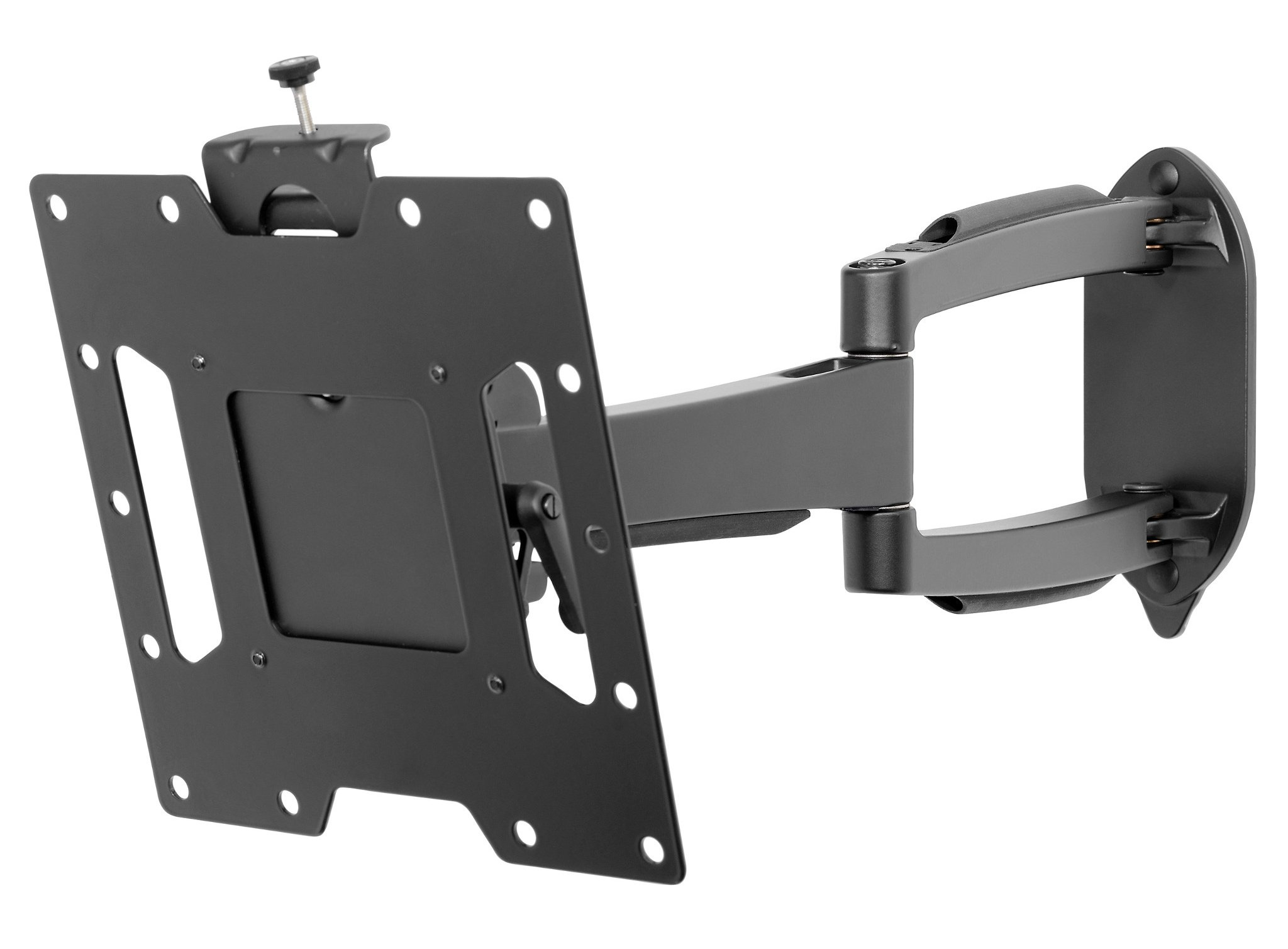

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
Specs
| Weight & dimensions |
| Width |
364 mm |
| Depth (min) |
7.7 cm |
| Depth (max) |
55.4 cm |
| Height |
258 mm |
| Weight |
3.3 kg |
| Packaging data |
| Package width |
387 mm |
| Package depth |
292 mm |
| Package height |
106 mm |
| Package weight |
4.24 kg |
| Package type |
Box |
| Mounting |
| Maximum weight capacity |
36 kg |
| Maximum screen size |
109.2 cm (43") |
| Mounting type |
Wall |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
200 x 200 mm |
| Minimum screen size |
55.9 cm (22") |
| Panel mounting interface |
100 x 100,200 x 100,200 x 200 |
| Number of displays supported |
1 |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Height adjustment range |
0 - 13 mm |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 15° |
| Pivot angle |
0 - 90° |
| Cable management |
Yes |
| Easy to adjust |
Yes |
| Distance to the wall (max) |
55.4 cm |
| Distance to the wall (min) |
7.7 cm |
| Design |
| Product colour |
Black |
| Certification |
UL/TUV |
| Technical details |
| Easy to install |
Yes |
| Orientation |
Landscape/Portrait |
| Packaging content |
| Manual |
Yes |
| Mounting kit |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
Features
Peerless SA740P. Maximum weight capacity: 36 kg, Minimum screen size: 55.9 cm (22"), Maximum screen size: 109.2 cm (43"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 0 - 13 mm, Tilt angle range: -5 - 15°, Distance to the wall (min): 7.7 cm, Distance to the wall (max): 55.4 cm. Product colour: Black
Product Description
The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
