Stock Status: 1x unit in stock

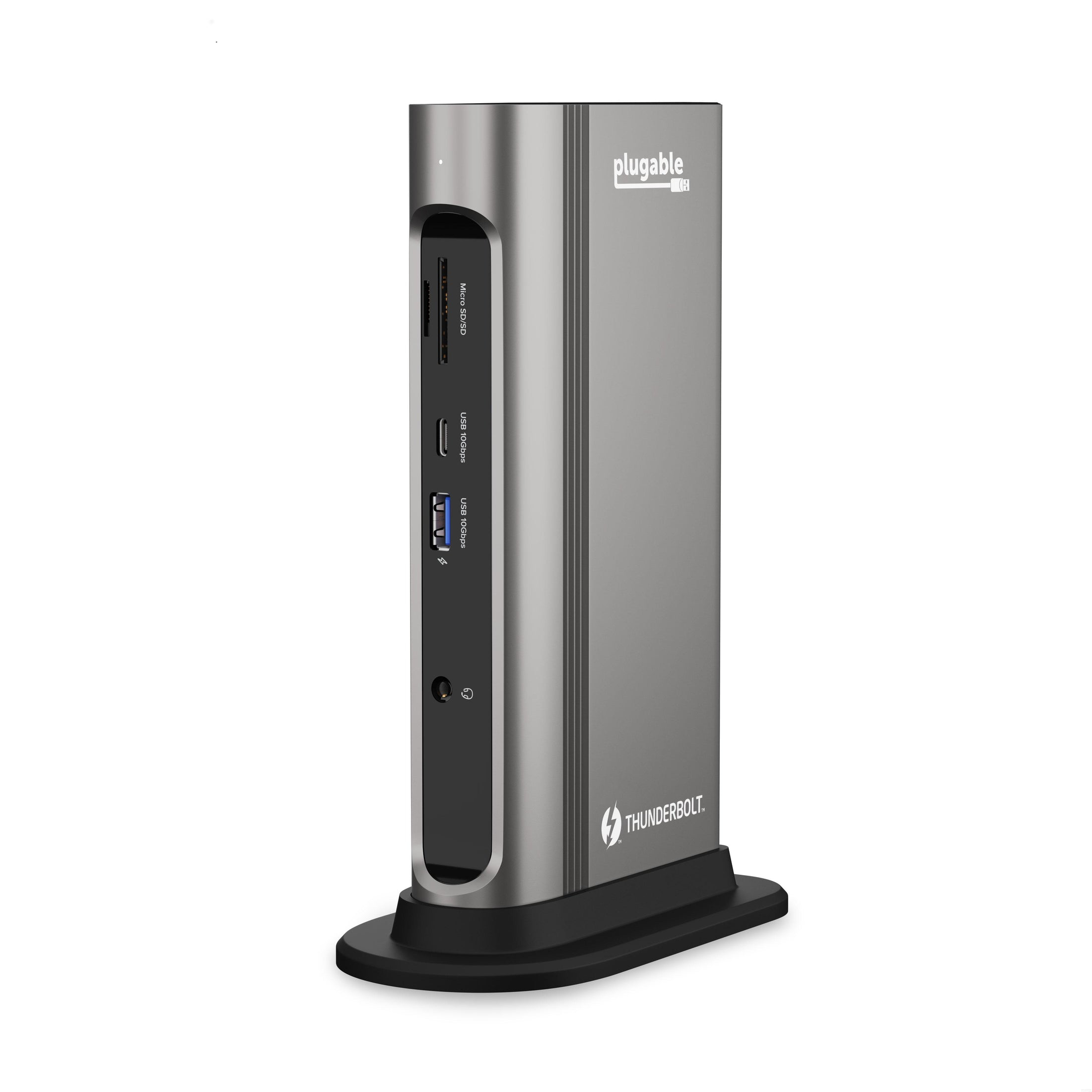

Plugable's Thunderbolt 3 and USB-C Dual Display Dock with 100W Host Charging (TBT3-UDZ)
The TBT3-UDZ is Plugable’s most versatile, powerful and accessible docking station yet. Its unique, exclusive design allows users to connect up to two 4K displays using either HDMI or DisplayPort without the need of external adapters - the first Thunderbolt 3 docking station to offer this flexibility of display types. Using the Intel Titan Ridge chipset and Plugable's custom design, the TBT3-UDZ delivers a combination of more port options, fastest charging up to 100W, and widest PC and Mac compatibility of any dock on the market.
- Up to 100W Power Delivery to host (96W Certified)
- 2x DisplayPort and 2x HDMI ports (for a total of two displays)
- 7x USB ports: 1x USB-C 10Gbps port, 1x USB 10Gbps port, 5x USB 5Gbps ports
- 1x SD card slot
- 1x MicroSD card slot
- 1x Gigabit Ethernet port
- 1x Combination audio input/output jack
With this dock, we set out to solve customer pain points that users have been dealing with for a long time now. These include the difference between Thunderbolt 3 and USB-C, which have identical looking ports, HDMI versus DisplayPort, USB-C or USB-A peripheral ports, and the different levels of charging wattage offered. The TBT3-UDZ eliminates any confusion between these different types of technologies by offering a simplified solution that answers these questions for you.
DisplayPort and HDMI
Plugable's unique design allows users to connect up to two additional 4K displays with your port of choice using either HDMI or DisplayPort without the need of external adapters.
This is the first Thunderbolt 3 docking station to offer this flexibility of display types. Made to adapt to the user's setup, the TBT3-UDZ is unparalleled in flexibility.
Vertical and Horizontal
The horizontal or vertical design of the TBT3-UDZ goes against the grain of other docking stations. Fit the dock in any space standing up or lying flat so there's more room for monitors and peripherals, while keeping a productive and clean workspace.
The dock includes a sturdy, detachable base for vertical orientation, which ensures a stable, sturdy setup no matter how many cables you connect.
Thunderbolt 3 and USB-C
The TBT3-UDZ is built upon the latest Intel Titan Ridge chipset, enabling the widest compatibility with Thunderbolt 3 and USB-C laptops on the market. Thunderbolt 4 laptops are also supported.
Its dual connectivity removes frustrations from having to pick a docking station for either type of laptop while delivering unrivaled performance.
100W Charging
The TBT3-UDZ’s 100W* Power Delivery is the highest charging wattage to be implemented in any universal Thunderbolt 3 docking station. With Apple now releasing notebooks with 96W chargers, such as the Intel based 16” MacBook Pro, the TBT3-UDZ is the best docking station to pair with these devices for unrivaled performance.
Charge your laptop at noticeably faster speeds - so you’ll have one less thing to think about and you can say goodbye to your other power supply.
Dual 4K Displays
Expand your workspace with 40Gbps Thunderbolt speeds and drive any combination of two DisplayPort or HDMI monitors.
Flexible Connectivity
The docking station features 14 ports making it one of the most comprehensive docking stations available, ideal for the most demanding of professions that require multiple inputs and peripherals.
With a mix of five USB 3.0 (5Gbps), one USB-A (10Gbps) and one USB-C (10Gbps) ports, you’ll be able to connect your phone or USB flash drive to the easily accessible front USB and USB-C ports, then connect other USB peripherals such as a keyboard or mouse to the back of the dock.
Specs
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 3 |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| HDMI ports quantity |
2 |
| Headphone outputs |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.0 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.2 |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| HDCP |
Yes |
| Power |
| Compatible power plug types |
EU |
| USB cable length |
0.8 m |
| Packaging content |
| Cables included |
AC, Thunderbolt |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Stand included |
Yes |
| Other features |
| Chipset |
Realtek RTL8153, Genesys Logic GL3226 |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Copper ethernet cabling technology |
1000BASE-T |
| Wake-on-LAN ready |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Performance |
| Product colour |
Black |
| Card reader integrated |
Yes |
| Compatible memory cards |
MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate |
40 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
4096 x 2160 pixels |
| Number of displays supported |
2 |
| Maximum refresh rate |
60 Hz |
| Cable lock slot |
Yes |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported |
No |
Features
Plugable Technologies USB-C Dock 14-in-1 with Thunderbolt 3 Certification, Up To 96W Charging, Dual Monitor - Compatible with Mac and Windows, 2X DisplayPort and HDMI 2.0, 7X USB, Ethernet, Audio, Micro SD/SD. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T. Product colour: Black, Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, Data transfer rate: 40 Gbit/s. Compatible power plug types: EU, USB cable length: 0.8 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3...
Product Description
Plugable's Thunderbolt 3 and USB-C Dual Display Dock with 100W Host Charging (TBT3-UDZ)
The TBT3-UDZ is Plugable’s most versatile, powerful and accessible docking station yet. Its unique, exclusive design allows users to connect up to two 4K displays using either HDMI or DisplayPort without the need of external adapters - the first Thunderbolt 3 docking station to offer this flexibility of display types. Using the Intel Titan Ridge chipset and Plugable's custom design, the TBT3-UDZ delivers a combination of more port options, fastest charging up to 100W, and widest PC and Mac compatibility of any dock on the market.
- Up to 100W Power Delivery to host (96W Certified)
- 2x DisplayPort and 2x HDMI ports (for a total of two displays)
- 7x USB ports: 1x USB-C 10Gbps port, 1x USB 10Gbps port, 5x USB 5Gbps ports
- 1x SD card slot
- 1x MicroSD card slot
- 1x Gigabit Ethernet port
- 1x Combination audio input/output jack
With this dock, we set out to solve customer pain points that users have been dealing with for a long time now. These include the difference between Thunderbolt 3 and USB-C, which have identical looking ports, HDMI versus DisplayPort, USB-C or USB-A peripheral ports, and the different levels of charging wattage offered. The TBT3-UDZ eliminates any confusion between these different types of technologies by offering a simplified solution that answers these questions for you.
DisplayPort and HDMI
Plugable's unique design allows users to connect up to two additional 4K displays with your port of choice using either HDMI or DisplayPort without the need of external adapters.
This is the first Thunderbolt 3 docking station to offer this flexibility of display types. Made to adapt to the user's setup, the TBT3-UDZ is unparalleled in flexibility.
Vertical and Horizontal
The horizontal or vertical design of the TBT3-UDZ goes against the grain of other docking stations. Fit the dock in any space standing up or lying flat so there's more room for monitors and peripherals, while keeping a productive and clean workspace.
The dock includes a sturdy, detachable base for vertical orientation, which ensures a stable, sturdy setup no matter how many cables you connect.
Thunderbolt 3 and USB-C
The TBT3-UDZ is built upon the latest Intel Titan Ridge chipset, enabling the widest compatibility with Thunderbolt 3 and USB-C laptops on the market. Thunderbolt 4 laptops are also supported.
Its dual connectivity removes frustrations from having to pick a docking station for either type of laptop while delivering unrivaled performance.
100W Charging
The TBT3-UDZ’s 100W* Power Delivery is the highest charging wattage to be implemented in any universal Thunderbolt 3 docking station. With Apple now releasing notebooks with 96W chargers, such as the Intel based 16” MacBook Pro, the TBT3-UDZ is the best docking station to pair with these devices for unrivaled performance.
Charge your laptop at noticeably faster speeds - so you’ll have one less thing to think about and you can say goodbye to your other power supply.
Dual 4K Displays
Expand your workspace with 40Gbps Thunderbolt speeds and drive any combination of two DisplayPort or HDMI monitors.
Flexible Connectivity
The docking station features 14 ports making it one of the most comprehensive docking stations available, ideal for the most demanding of professions that require multiple inputs and peripherals.
With a mix of five USB 3.0 (5Gbps), one USB-A (10Gbps) and one USB-C (10Gbps) ports, you’ll be able to connect your phone or USB flash drive to the easily accessible front USB and USB-C ports, then connect other USB peripherals such as a keyboard or mouse to the back of the dock.
