Stock Status: 1x unit in stock

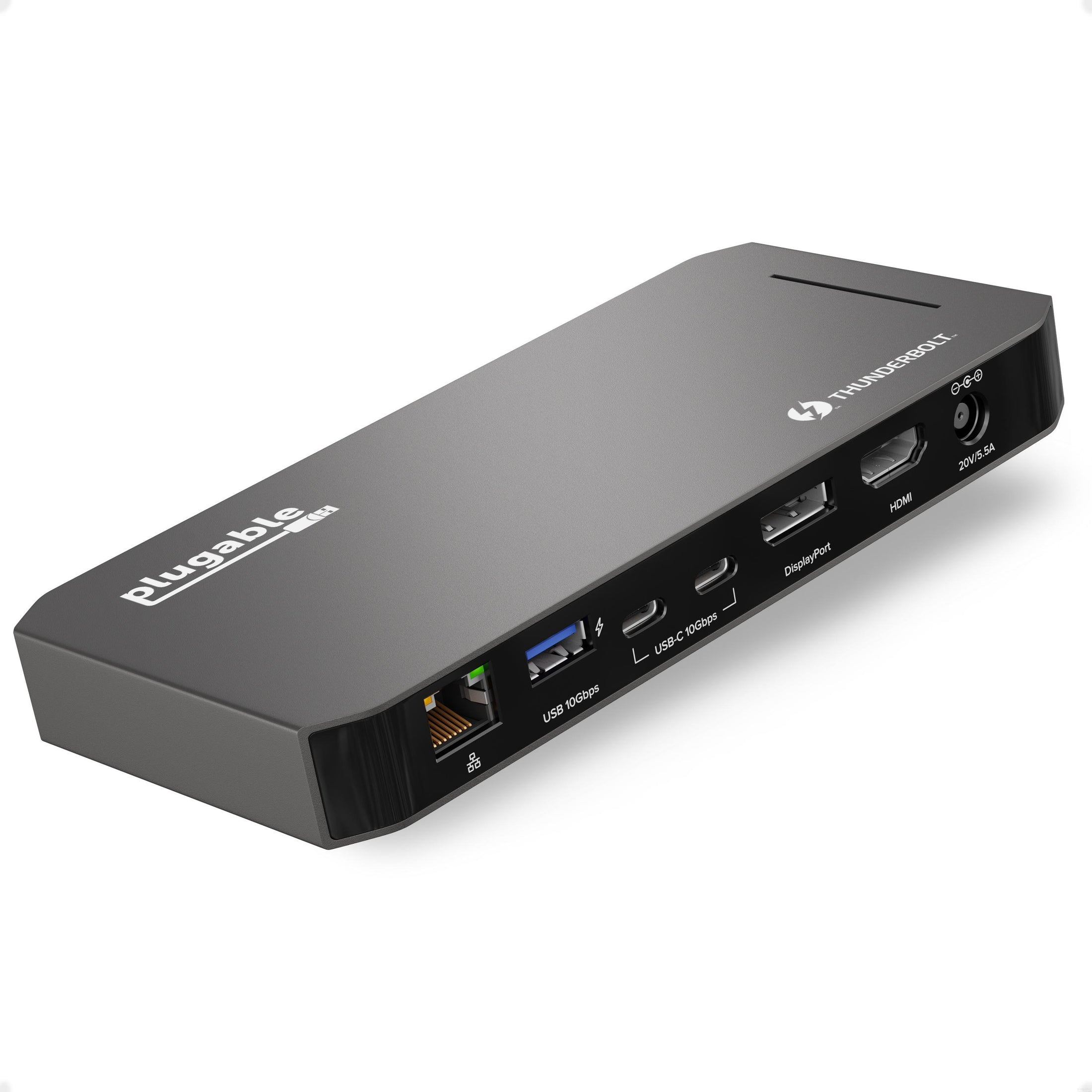

Thunderbolt 3 and USB-C Docking Station with 100W charging
With broad compatibility across Thunderbolt 4, Thunderbolt 3, USB4, and USB-C laptops, up to 100W of charging power, 40Gbps bandwidth, and dual 4K 60Hz video output with Thunderbolt, this flexible dock is a great choice for no-compromise performance and productivity
Extend your display with dual monitors and stay powered all day with fast 100W charging. The TBT3-UDC3 expands your laptop ports further with two USB-C ports that let you transfer large files quickly so even editing 4K video won’t slow things down, three USB-A ports mean your legacy peripherals won’t be left out, and a wired Ethernet connection and a combination headset audio jack lets you stream, listen, talk, and watch on a full battery. This USB C docking station is compatible with most USB-C, USB4 and Thunderbolt 4 laptops of today and with previous generation Thunderbolt 3 laptops.
100W Charging
Charge your laptop at noticeably faster speeds—so you’ll have one less thing to think about and you can say goodbye to your other power supply. This laptop charging station delivers a fast laptop charging rate for certified Thunderbolt devices up to 100W (96W certified), while also safely charging laptops with lower power requirements.
Even laptops with 140W USB-C chargers such as the M1 Pro/Max, M2 Pro/Max, and M3 Pro/Max MacBook Pros can still be charged by the TBT3-UDC3 under typical load.
Dual 4K 60Hz Displays
The TBT3-UDC3 provides full 40Gbps bandwidth so users can extend dual 4K 60Hz displays through 1x HDMI and 1x HDMI/DisplayPort with Thunderbolt and USB4 laptops and dual 1080p 60Hz displays on USB-C laptops.
This Thunderbolt dock is equipped with an HDMI port and a DisplayPort video output to connect to a wider variety of displays.
Have a second HDMI display? We include an additional DisplayPort to HDMI adapter with this laptop docking station, so no need to purchase an additional adapter!
Thunderbolt and USB-C
Using the Intel Titan Ridge chipset, the TBT3-UDC3 provides some of the widest compatibility options in any laptop docking stations.
The Titan Ridge chipset allows Plugable to ensure their docks enjoy some of the widest compatibility options from USB-C to Thunderbolt 4 and USB4. Using this technology, the USB C Dock is also capable of extending dual displays up to 4K 60Hz (not mirrored) with Thunderbolt and USB4 laptops.
When connected to the TBT3-UDC3, M1 / M2 / M3 Base Model MacBooks can only support 1 extended display. M1 Pro/Max, M2 Pro/Max, and M3 Pro/Max MacBook Pros can support up to 2x extended displays.
Specs
| Weight & dimensions |
| Width |
170 mm |
| Depth |
80 mm |
| Height |
20 mm |
| Weight |
320 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 3 |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.0 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| HDCP |
Yes |
| Power |
| Compatible power plug types |
EU |
| Packaging content |
| Cables included |
Thunderbolt |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Interface adapters included |
DisplayPort male - HDMI female |
| Other features |
| Chipset |
Realtek - RTL8153 |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Copper ethernet cabling technology |
1000BASE-T |
| Wake-on-LAN ready |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Performance |
| Product colour |
Black |
| Card reader integrated |
No |
| Data transfer rate |
40 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
4096 x 2160 pixels |
| Maximum refresh rate |
60 Hz |
| LED indicators |
Yes |
Features
Plugable Technologies Thunderbolt Dock, 100W Laptop Charging, Compatible with Mac and Windows, Dual HDMI Docking Station with DisplayPort - Dual Monitor, 2X USB-C, 3X USB 3.0, Gigabit Ethernet, Audio Jack. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T. Product colour: Black, Data transfer rate: 40 Gbit/s, HD type: 4K Ultra HD. Compatible power plug types: EU. Width: 170 mm, Depth: 80 mm, Height: 20 mm
Product Description
Thunderbolt 3 and USB-C Docking Station with 100W charging
With broad compatibility across Thunderbolt 4, Thunderbolt 3, USB4, and USB-C laptops, up to 100W of charging power, 40Gbps bandwidth, and dual 4K 60Hz video output with Thunderbolt, this flexible dock is a great choice for no-compromise performance and productivity
Extend your display with dual monitors and stay powered all day with fast 100W charging. The TBT3-UDC3 expands your laptop ports further with two USB-C ports that let you transfer large files quickly so even editing 4K video won’t slow things down, three USB-A ports mean your legacy peripherals won’t be left out, and a wired Ethernet connection and a combination headset audio jack lets you stream, listen, talk, and watch on a full battery. This USB C docking station is compatible with most USB-C, USB4 and Thunderbolt 4 laptops of today and with previous generation Thunderbolt 3 laptops.
100W Charging
Charge your laptop at noticeably faster speeds—so you’ll have one less thing to think about and you can say goodbye to your other power supply. This laptop charging station delivers a fast laptop charging rate for certified Thunderbolt devices up to 100W (96W certified), while also safely charging laptops with lower power requirements.
Even laptops with 140W USB-C chargers such as the M1 Pro/Max, M2 Pro/Max, and M3 Pro/Max MacBook Pros can still be charged by the TBT3-UDC3 under typical load.
Dual 4K 60Hz Displays
The TBT3-UDC3 provides full 40Gbps bandwidth so users can extend dual 4K 60Hz displays through 1x HDMI and 1x HDMI/DisplayPort with Thunderbolt and USB4 laptops and dual 1080p 60Hz displays on USB-C laptops.
This Thunderbolt dock is equipped with an HDMI port and a DisplayPort video output to connect to a wider variety of displays.
Have a second HDMI display? We include an additional DisplayPort to HDMI adapter with this laptop docking station, so no need to purchase an additional adapter!
Thunderbolt and USB-C
Using the Intel Titan Ridge chipset, the TBT3-UDC3 provides some of the widest compatibility options in any laptop docking stations.
The Titan Ridge chipset allows Plugable to ensure their docks enjoy some of the widest compatibility options from USB-C to Thunderbolt 4 and USB4. Using this technology, the USB C Dock is also capable of extending dual displays up to 4K 60Hz (not mirrored) with Thunderbolt and USB4 laptops.
When connected to the TBT3-UDC3, M1 / M2 / M3 Base Model MacBooks can only support 1 extended display. M1 Pro/Max, M2 Pro/Max, and M3 Pro/Max MacBook Pros can support up to 2x extended displays.
