Stock Status: 1x unit in stock

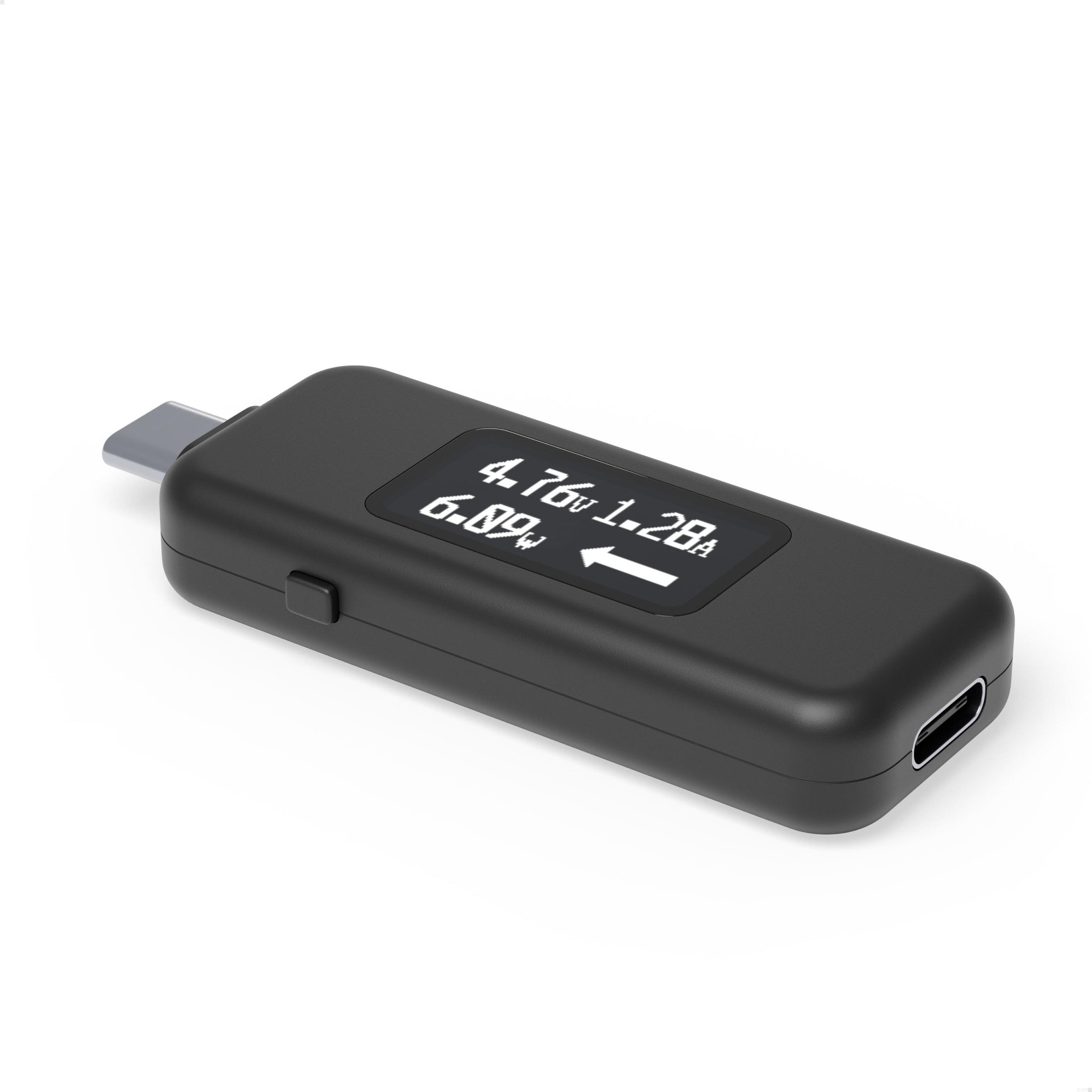

For a multimeter, the Plugable USB-C Amperage and Voltage Tester (USBC-VAMETER3) manages to fit a lot of useful features into a sturdy little package. About the size of a USB flash drive, this bidirectional USB tester allows for full USB data passthrough while it monitors USB-C power and charging, measures voltage and amperage, even visualizes the directional flow of electrical current–all in real time.
Connect the USBC-VAMETER3 inline between a USB-C host system like a laptop, tablet, or cell phone and a charger to use it as a USB voltage meter or power consumption meter. An updated OLED screen means a brighter and easier-to-read display in any lighting conditions, and a new orientation button lets you flip the screen with a click.
How it works:
This meter is a transparent interposer–it should not interfere with the USB data (1.1 through 3.1 Gen 2), USB-C Alternate Mode video, or USB-C charging. The meter can be used in-line with USB-C docking stations, chargers, and other USB-C accessories. The meter is able to achieve this without interfering with normal USB-C operation as it only taps into the power (VBUS) and ground connections to measure values and leaves the data lines untouched.
Common uses:
- Connecting between a USB-C host system like a laptop, tablet, or cell phone and a charger to monitor charge information.
- Connecting between a USB-C host and docking station to monitor charge information.
- Connecting between a USB-C host system and a USB-C bus powered accessory like an external hard drive, flash drive, etc to measure power draw of a device.
- Testing for USB-C port spec compliance such as a VBUS hot condition, voltage drop under load, etc.
Specs
| Weight & dimensions |
| Width |
64 mm |
| Depth |
22.5 mm |
| Features |
| DC output voltage test |
+12V, +5V |
| Power connectors supported |
USB Type-C |
| Built-in display |
Yes |
| Display type |
OLED |
| Backlight display |
Yes |
| Backlight colour |
White |
| Product colour |
Black |
Features
Plugable Technologies USB C Power Meter Tester for Monitoring USB-C Connections up to 240W - Digital Multimeter Tester for USB-C Cables, Laptops, Phones, Chargers - Driverless. DC output voltage test: +12V, +5V, Power connectors supported: USB Type-C, Display type: OLED. Width: 64 mm, Depth: 22.5 mm
Product Description
For a multimeter, the Plugable USB-C Amperage and Voltage Tester (USBC-VAMETER3) manages to fit a lot of useful features into a sturdy little package. About the size of a USB flash drive, this bidirectional USB tester allows for full USB data passthrough while it monitors USB-C power and charging, measures voltage and amperage, even visualizes the directional flow of electrical current–all in real time.
Connect the USBC-VAMETER3 inline between a USB-C host system like a laptop, tablet, or cell phone and a charger to use it as a USB voltage meter or power consumption meter. An updated OLED screen means a brighter and easier-to-read display in any lighting conditions, and a new orientation button lets you flip the screen with a click.
How it works:
This meter is a transparent interposer–it should not interfere with the USB data (1.1 through 3.1 Gen 2), USB-C Alternate Mode video, or USB-C charging. The meter can be used in-line with USB-C docking stations, chargers, and other USB-C accessories. The meter is able to achieve this without interfering with normal USB-C operation as it only taps into the power (VBUS) and ground connections to measure values and leaves the data lines untouched.
Common uses:
- Connecting between a USB-C host system like a laptop, tablet, or cell phone and a charger to monitor charge information.
- Connecting between a USB-C host and docking station to monitor charge information.
- Connecting between a USB-C host system and a USB-C bus powered accessory like an external hard drive, flash drive, etc to measure power draw of a device.
- Testing for USB-C port spec compliance such as a VBUS hot condition, voltage drop under load, etc.
