Stock Status: 1x unit in stock

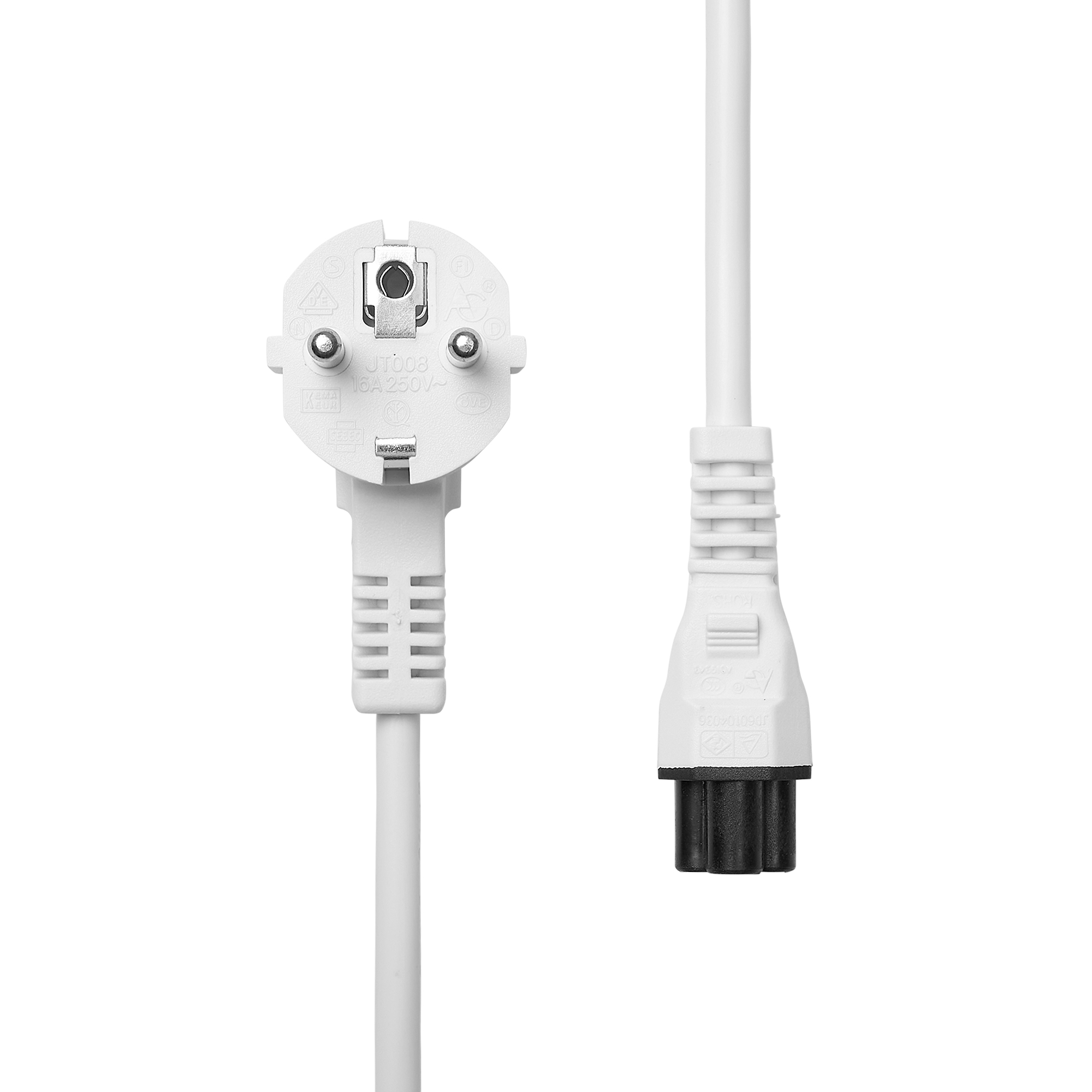

The ProXtend PC-FAC5-001W power cord enables a connection between a male type F (Schuko) connector, and a female C5 connector. The type F (Schuko) connector is angled at 90 degrees, while the C5 connector has a straight form factor.
The type F connectors, also known as Schuko, are most often used within the majority of European countries, Russia, as well as some North African and Malaysian countries.
Specs
| Power |
| Input voltage |
250 V |
| Input current |
2.5 A |
| Operational conditions |
| Operating temperature (T-T) |
-15 - 60 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Features |
| Product colour |
White |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Cable length |
1 m |
| Connector 1 |
Power plug type F |
| Connector 2 |
C5 coupler |
| Connector 1 form factor |
Angled |
| Connector 2 form factor |
Straight |
| Connector 1 lockable |
N |
| Connector 2 lockable |
N |
| Suitable for use in country/location |
Europe |
| Connector angle |
90° |
| Overload protection |
N |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor material |
Copper |
| Cable type |
H05VV-F |
| Number of conductors |
24 |
| Plug and Play |
Y |
| Number of cable cores |
3 |
| Core size |
0.75 mm² |
| Certification |
VDE |
| Other features |
| Country of origin |
China |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Sustainability |
| Sustainability compliance |
Y |
| Sustainability certificates |
Low Voltage Directive (LVD), REACH, RoHS |
Features
ProXtend Angled Type F (Schuko) to C5 Power Cable, White 1m. Cable length: 1 m, Connector 1: Power plug type F, Connector 2: C5 coupler, Cable type: H05VV-F. Input voltage: 250 V, Input current: 2.5 A
Product Description
The ProXtend PC-FAC5-001W power cord enables a connection between a male type F (Schuko) connector, and a female C5 connector. The type F (Schuko) connector is angled at 90 degrees, while the C5 connector has a straight form factor.
The type F connectors, also known as Schuko, are most often used within the majority of European countries, Russia, as well as some North African and Malaysian countries.
