Stock Status: 1x unit in stock

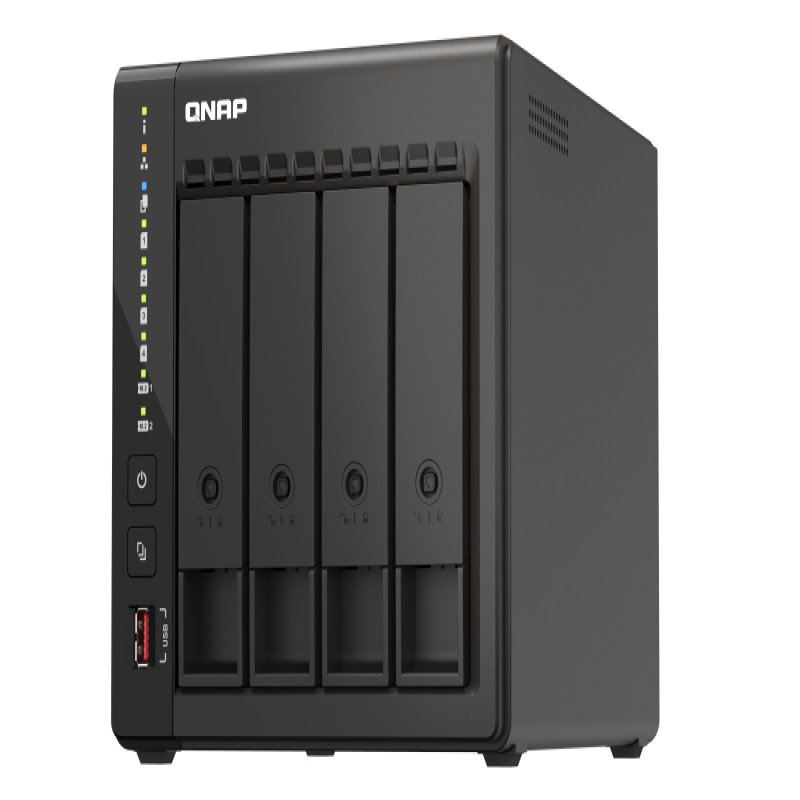

The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-453E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.
Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-453E will be available and supported by QNAP for an extended period, up to 2029.
Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity
Supports USB expansion enclosures (see the compatibility list).
Specs
| Weight & dimensions |
| Width |
180 mm |
| Depth |
235 mm |
| Height |
177 mm |
| Weight |
3 kg |
| Package weight |
4.3 kg |
| Power |
| Power supply unit (PSU) capacity |
90 W |
| Power consumption (max) |
33.88 W |
| Power consumption (sleep) |
15.78 W |
| AC input voltage |
100 - 240 V |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Networking |
| Ethernet LAN |
Y |
| Jumbo frames support |
Y |
| Wake-on-LAN ready |
Y |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port |
Y |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| HDMI ports quantity |
2 |
| HDMI version |
1.4b |
| Memory |
| Internal memory |
8 GB |
| Processor |
| Processor family |
Intel® Celeron® |
| Processor manufacturer |
Intel |
| Processor model |
J6412 |
| Processor frequency |
2.6 GHz |
| Processor cores |
4 |
| Processor threads |
4 |
| Storage |
| Storage drives installed |
N |
| Number of storage drives supported |
6 |
| Installed storage drive type |
N |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, Serial ATA III |
| Storage drive sizes supported |
2.5,3.5,M.2 |
| Number of M.2 (M & B) slots |
2 |
| Packaging content |
| External power adapter |
Y |
| Performance |
| Type |
NAS |
| Buzzer |
Y |
| Reset button |
Y |
| On/off switch |
Y |
| Design |
| Chassis type |
Tower |
| Cooling type |
Active |
| Product colour |
Black |
| Number of fans |
1 fan(s) |
| LED indicators |
LAN, Power, Status |
Features
QNAP TS-453E. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: M.2, Serial ATA III, Storage drive sizes supported: 2.5,3.5,M.2. Processor family: Intel® Celeron®, Processor manufacturer: Intel, Processor model: J6412. Internal memory: 8 GB. HDMI version: 1.4b. Chassis type: Tower, Cooling type: Active, Product colour: Black
Product Description
The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-453E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.
Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-453E will be available and supported by QNAP for an extended period, up to 2029.
Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity
Supports USB expansion enclosures (see the compatibility list).
