Stock Status: 1x unit in stock
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specs
| Weight & dimensions |
| Dimensions (WxDxH) |
56 x 44 x 1791 mm |
| Weight |
6.38 kg |
| Operational conditions |
| Operating temperature (T-T) |
5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Power |
| Nominal input voltage |
400 V |
| Maximum current |
16 A |
| AC input frequency |
50 - 60 Hz |
| Nominal output voltage |
230 V |
| Load capacity |
11040 VA |
| Maximum input current per phase |
16 A |
| Maximum total current draw per phase |
16 A |
| Maximum power |
11000 W |
| Ports & interfaces |
| AC outlets quantity |
42 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |

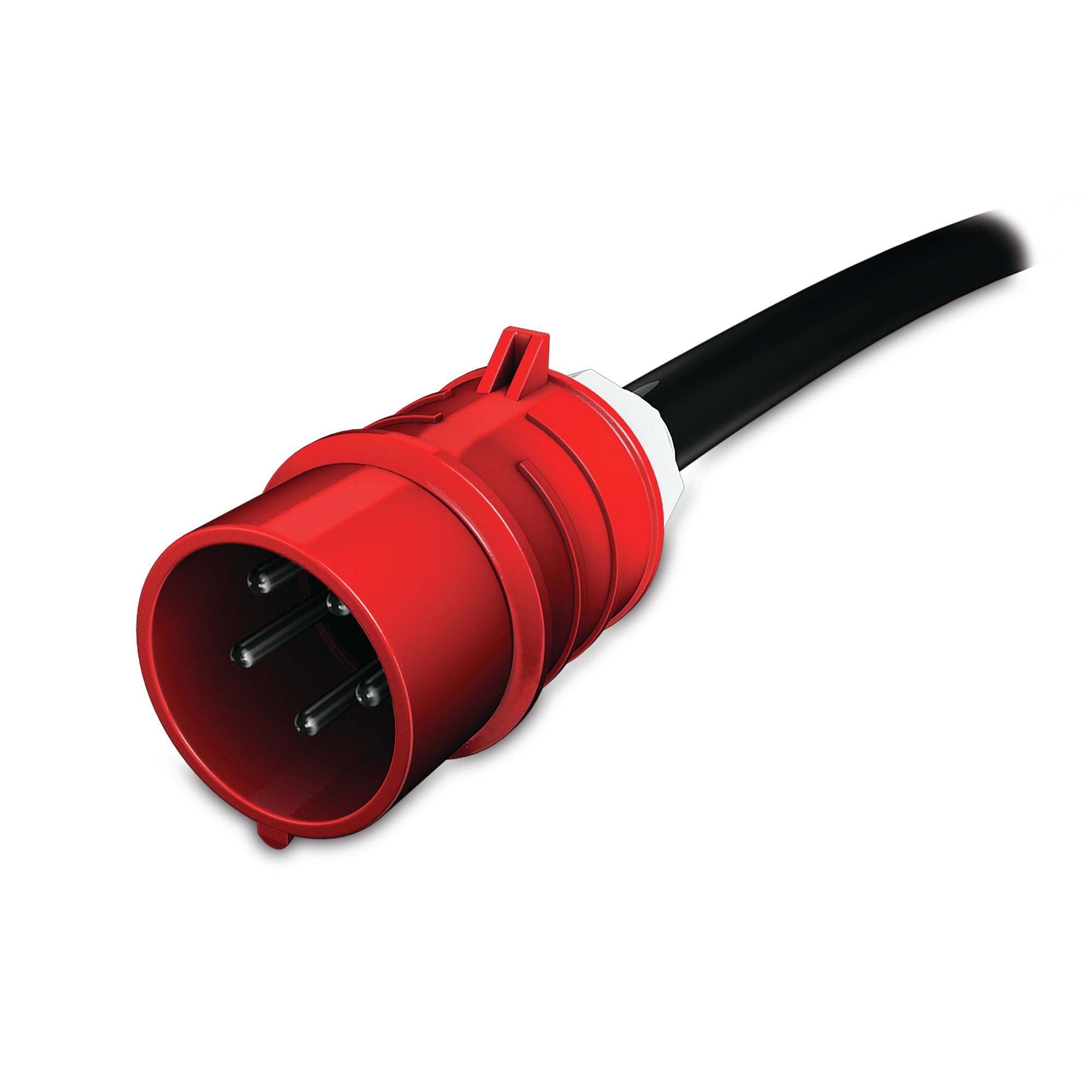

| Power plug |
IEC309 |
| Input connection type |
IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E |
| Output connections |
36x IEC 320 C13
6x IEC 320 C19 |
| Design |
| PDU types |
Metered |
| Rack capacity |
0U |
| Mounting |
Vertical |
| Product colour |
Black |
| Management features |
| Monitoring |
Current, Power, Voltage |
| Features |
| Cable length |
1.83 m |
| Certification |
CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE
RoHS, REACH |
Features
APC AP8881. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 1.83 m, Certification: CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH. Monitoring: Current, Power, Voltage. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
Product Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
