Stock Status: 1x unit in stock

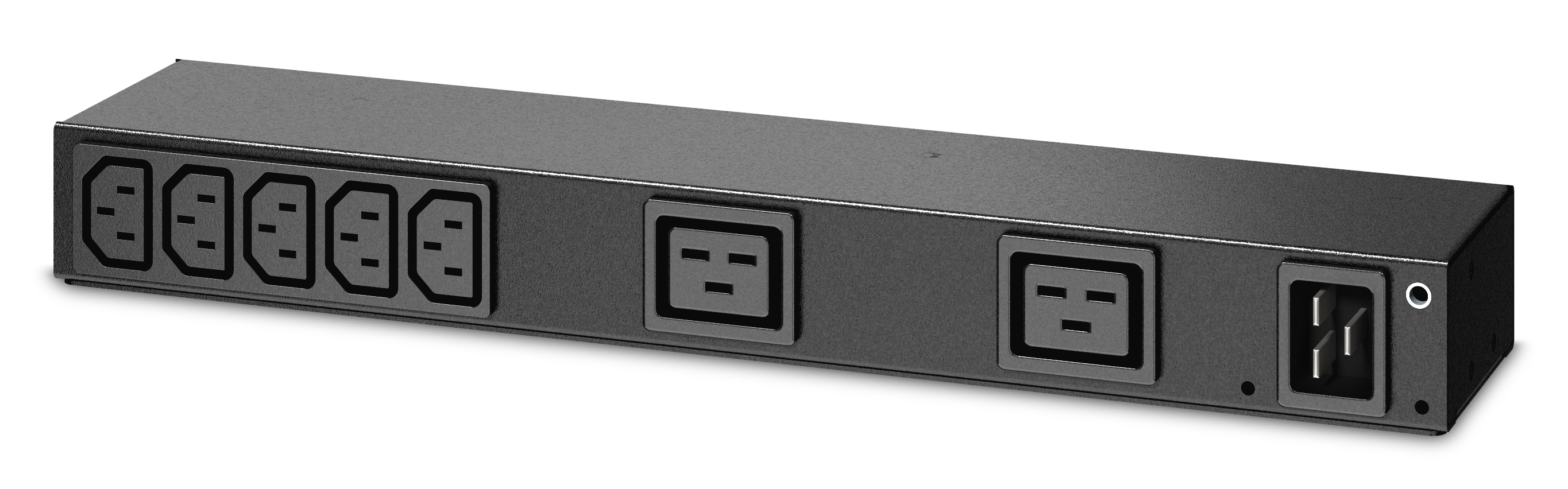

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Specs
| Weight & dimensions |
| Dimensions (WxDxH) |
4.36 x 9.29 x 38.81 mm |
| Weight |
1.56 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-15 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Power |
| Nominal input voltage |
100-240 V |
| Maximum current |
20 A |
| AC input frequency |
50 - 60 Hz |
| Nominal output voltage |
100-240 V |
| Load capacity |
3680 VA |
| Maximum input current per phase |
16 A |
| Maximum power |
3680 W |
| Ports & interfaces |
| AC outlets quantity |
7 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| Design |
| PDU types |
Basic |
| Rack capacity |
0U/1U |
| Type |
Single-phase |
| Mounting |
Horizontal/Vertical |
| Product colour |
Black |
| Technical details |
| Compliance certificates |
RoHS |
| Features |
| Certification |
UL/C-UL, VDE, CE |
Features
APC AP6120A. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 7 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Certification: UL/C-UL, VDE, CE. Nominal input voltage: 100-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 4.36 x 9.29 x 38.81 mm, Weight: 1.56 kg
Product Description
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
