Stock Status: 1x unit in stock
Marketing Features
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Specs
| Weight & dimensions |
| Width |
444 mm |
| Depth |
102 mm |
| Height |
44 mm |
| Weight |
1.73 kg |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Power |
| Nominal input voltage |
208-230 V |
| Maximum current |
15 A |
| AC input frequency |
50 - 60 Hz |
| Nominal output voltage |
208-230 V |
| Load capacity |
2300 VA |
| Maximum input current per phase |
15 A |
| Maximum total current draw per phase |
10 A |
| Maximum power |
2300 W |
| Ports & interfaces |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Input connection type |
IEC-320 C14 |
| Design |
| PDU types |
Metered |
| Rack capacity |
0U/1U |
| Mounting |
Horizontal/Vertical |
| Product colour |
Black |
| Management features |
| Monitoring |
Current, Power, Voltage |
| Features |
| LED indicators |
Yes |
| Cable length |
1.98 m |
| Packaging data |
| Package weight |
2.91 kg |
| Package width |
470 mm |
| Package depth |
337 mm |
| Package height |
64 mm |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
Features

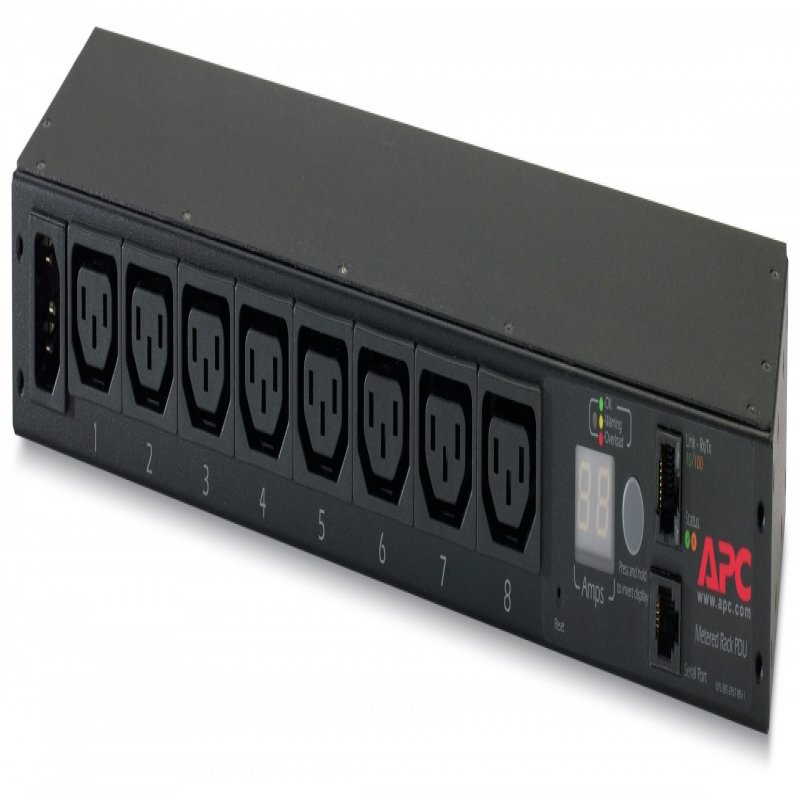

APC AP7820B. PDU types: Metered, Rack capacity: 0U/1U, Mounting: Horizontal/Vertical. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C14 coupler. Cable length: 1.98 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 208-230 V, Maximum current: 15 A, AC input frequency: 50 - 60 Hz
Product Description
Marketing Features
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
