Incredible image quality, flexible connectivity and intuitive user experience, at a touch

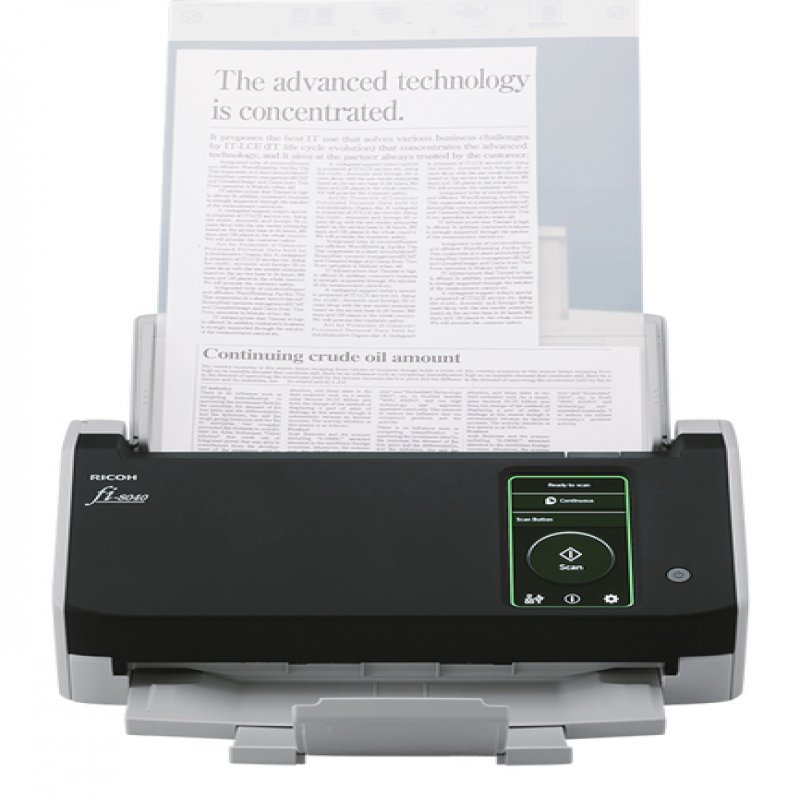

The RICOH fi-8040 is designed for organisations looking for a scanner that combines market-leading image quality, versatile connectivity and an intuitive user experience. Delivering industry-leading OCR accuracy rates, the scanner has multiple options for connecting via a network, or to an individual PC using USB. And its 10.9cm colour touchscreen and DirectScan application, enable PC-less scanning directly to workflows or email addresses, saving both time and effort.
This scanner incorporates our unique Clear Image Capture, producing image quality that exceeds other available technologies. Teamed with our PaperStream IP software, the fi-8040 delivers industry-leading OCR accuracy rates for data capture that you can trust – whilst ensuring your scans are always optimised for faster, low-cost access and storage.
Seamless and versatile connectivity is at the heart of fi-8040. The USB port provides connectivity to an individual PC in the traditional way. But with the fi-8040's LAN capability, you can enjoy complete flexibility with multiple ways to connect to your workflow, even without a PC.
PaperStream IP Net enables a single scanner to serve multiple PCs, and any networked PC to use any scanner on the network. Or, for server-based connectivity, PaperStream NX Manager offers easy integration into your own solutions, so you can send scans seamlessly to any system on your business.
DirectScan technology provides PC-less scanning directly into workflows, sending images straight to destinations such as network folders, FTP locations or multiple pre-programmed email addresses. In addition, Scanner Central Admin provides remote management, saving you time and money when it comes to deploying and maintaining your scanner.
The fi-8040's built-in LCD colour touchscreen provides every user with a highly intuitive experience. The customisable, easy-to-use interface reduces operator time and effort with large, clearly labelled buttons for their most common pre-defined routines – or when scanning to programmed email addresses. The support wizard guides you quickly through tasks and maintenance with on-screen prompts, to maximise operational uptime. And you can batch scan with greater peace-of-mind thanks to the ultra-sonic sensor that immediately pauses and alerts whenever the fi-8040 detects a multi-feed.
This is the scanner that combines an incredibly intuitive user experience with versatile network connectivity and unmatched image quality. It’s the multi-faceted scanning solution your digital transformation demands.
Specs
| Weight & dimensions |
| Width |
292 mm |
| Depth |
157 mm |
| Height |
143 mm |
| Weight |
3.1 kg |
| Ports & interfaces |
| USB port |
Yes |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| Socket connector type |
C7 |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Power |
| Power supply type |
AC |
| Power consumption (typical) |
19 W |
| Power consumption (standby) |
0.15 W |
| AC input frequency |
50/60 Hz |
| Sleep mode |
Yes |
| Input voltage |
100 - 240 V |
| Power consumption (sleep) |
1.9 W |
| Scanning |
| Maximum scan size |
210 x 297 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Duplex scanning |
Yes |
| Output colour depth |
24 bit |
| Output monochrome depth |
8 bit |
| ADF scan speed (colour, A4) |
40 ppm |
| Duplex ADF scan speed (b/w, A4) |
80 ipm |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Paper handling |
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Business Card, Plain paper, Plastic Card, Post Card(JPN) |
| Long-paper mode |
Yes |
| ISO A-series sizes (A0...A9) |
A4, A5, A6 |
| ISO B-series sizes (B0...B9) |
B5, B6 |
| Letter |
Yes |
| Legal |
Yes |
| Card thickness (max) |
0.76 mm |
| Paper tray media weight |
40 - 209 g/m² |
| Input capacity |
| Auto document feeder (ADF) input capacity |
50 sheets |
| Other features |
| Compliance certificates |
RoHS |
| Background colours |
White |
| Design |
| Scanner type |
ADF + Manual feed scanner |
| Built-in display |
Yes |
| Product colour |
Black, Grey |
| Display diagonal |
10.9 cm (4.3") |
| Touchscreen |
Yes |
| Control type |
Touch |
| Packaging content |
| Cables included |
AC, USB |
| AC adapter included |
Yes |
| Packaging content |
ADF paper chute, AC adapter, Setup DVD-ROM |
| Performance |
| Sensor type |
Dual CIS |
| Daily duty cycle (max) |
6000 pages |
| Light source |
RGB LED |
| Scan drivers |
ISIS, SANE, TWAIN |
| Ultrasonic sensor |
Yes |
| Scanner smart software features |
Background purifying, Blank page detection |
| Networking |
| Ethernet LAN |
Yes |
| Logistics data |
| Country of origin |
China |
| Pallet gross length |
101.6 cm |
| Pallet gross width |
121.9 cm |
| Harmonized System (HS) code |
8471607000 |
| Paper packaging weight |
2.4 kg |
| Metal packaging weight |
0 g |
| Wood packaging weight |
0 g |
| Plastic packaging weight |
15 g |
| Products per pallet (air) |
60 pc(s) |
| Products per pallet (sea) |
96 pc(s) |
| Pallet height (sea) |
199 cm |
| Pallet height (air) |
130.4 cm |
| Cardboard packaging weight |
1.2 kg |
| Foil packaging weight |
15 g |
| Polystyrene (EPS/EPP) packaging weight |
200 g |
| Glass packaging weight |
0 g |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
249 mm |
| Package depth |
399 mm |
| Package height |
240 mm |
| Package weight |
4.5 kg |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Sustainability compliance |
Yes |
Features
Ricoh fi-8040. Maximum scan size: 210 x 297 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: ADF + Manual feed scanner, Product colour: Black, Grey, Display diagonal: 10.9 cm (4.3"). Sensor type: Dual CIS, Daily duty cycle (max): 6000 pages, Light source: RGB LED. Auto document feeder (ADF) input capacity: 50 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A4, A5, A6
Product Description
Incredible image quality, flexible connectivity and intuitive user experience, at a touch
The RICOH fi-8040 is designed for organisations looking for a scanner that combines market-leading image quality, versatile connectivity and an intuitive user experience. Delivering industry-leading OCR accuracy rates, the scanner has multiple options for connecting via a network, or to an individual PC using USB. And its 10.9cm colour touchscreen and DirectScan application, enable PC-less scanning directly to workflows or email addresses, saving both time and effort.
This scanner incorporates our unique Clear Image Capture, producing image quality that exceeds other available technologies. Teamed with our PaperStream IP software, the fi-8040 delivers industry-leading OCR accuracy rates for data capture that you can trust – whilst ensuring your scans are always optimised for faster, low-cost access and storage.
Seamless and versatile connectivity is at the heart of fi-8040. The USB port provides connectivity to an individual PC in the traditional way. But with the fi-8040's LAN capability, you can enjoy complete flexibility with multiple ways to connect to your workflow, even without a PC.
PaperStream IP Net enables a single scanner to serve multiple PCs, and any networked PC to use any scanner on the network. Or, for server-based connectivity, PaperStream NX Manager offers easy integration into your own solutions, so you can send scans seamlessly to any system on your business.
DirectScan technology provides PC-less scanning directly into workflows, sending images straight to destinations such as network folders, FTP locations or multiple pre-programmed email addresses. In addition, Scanner Central Admin provides remote management, saving you time and money when it comes to deploying and maintaining your scanner.
The fi-8040's built-in LCD colour touchscreen provides every user with a highly intuitive experience. The customisable, easy-to-use interface reduces operator time and effort with large, clearly labelled buttons for their most common pre-defined routines – or when scanning to programmed email addresses. The support wizard guides you quickly through tasks and maintenance with on-screen prompts, to maximise operational uptime. And you can batch scan with greater peace-of-mind thanks to the ultra-sonic sensor that immediately pauses and alerts whenever the fi-8040 detects a multi-feed.
This is the scanner that combines an incredibly intuitive user experience with versatile network connectivity and unmatched image quality. It’s the multi-faceted scanning solution your digital transformation demands.
