Stock Status: 1x unit in stock

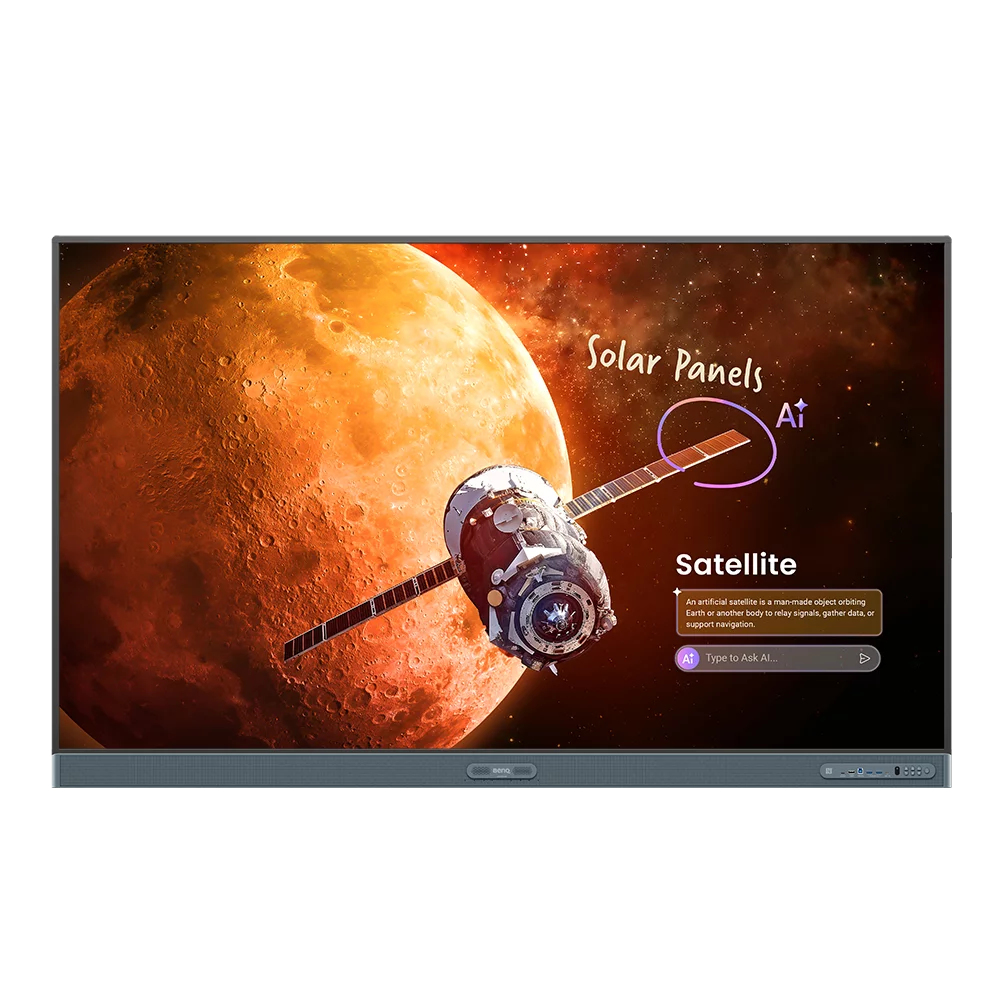

The BenQ Board Pro RP05 is a Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, Ultra Precision IR touch, top-of-the line hardware and software, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
Specs
| Weight & dimensions |
| Width |
1957 mm |
| Height |
1200.6 mm |
| Depth |
130 mm |
| Power |
| Power consumption (typical) |
126.4 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Ports & interfaces |
| Interface |
HDMI |
| USB connector type |
USB Type-A, USB Type-B, USB Type-C |
| HDMI ports quantity |
4 |
| USB Type-C ports quantity |
3 |
| HDMI version |
2.0 |
| HDMI output ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| DisplayPort version |
1.2a |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Line-in |
Yes |
| Line-out |
Yes |
| OPS slot |
1 |
| S/PDIF out port |
Yes |
| Microphone connectivity |
3.5 mm |
| Headphone connectivity |
3.5 mm |
| Audio output |
3 |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| Speaker power |
25 W |
| Built-in subwoofer |
Yes |
| Subwoofer RMS power |
20 W |
| Built-in microphone |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 60% |
| Packaging data |
| Package width |
2110 mm |
| Package depth |
205 mm |
| Package height |
1314 mm |
| Package weight |
55 kg |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Cables included |
HDMI, USB, USB Type-C |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Stylus included |
Yes |
| Number of stylus pens |
2 |
| Ergonomics |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
800 x 600 mm |
| Wall mountable |
Yes |
| Performance |
| Humidity sensor |
Yes |
| Temperature sensor |
Yes |
| PM2.5 sensor |
Yes |
| Number of air ionizers |
1 |
| Motion sensor |
Yes |
| Display |
| Display diagonal |
2.18 m (86") |
| Touchscreen |
Yes |
| Working area |
1895 x 1066 mm |
| Display brightness |
450 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Anti-glare screen |
Yes |
| HD type |
4K Ultra HD |
| Panel type |
IPS |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
1200:1 |
| Contrast ratio (dynamic) |
50000:1 |
| Response time |
8 ms |
| Touch technology |
Multi-touch |
| Touchscreen type |
Infrared |
| Number of simultaneous touchpoints |
50 |
| Touch system response time |
5 ms |
| Colour gamut |
72% |
| Surface material |
Tempered glass |
| Hardness |
9H |
| Logistics data |
| Customs product code (TARIC) |
8528521000 |
| Products per pallet |
5 pc(s) |
| Network |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Near Field Communication (NFC) |
Yes |
| Computer system |
| Operating system installed |
Android |
| Operating system version |
15 |
| Built-in processor |
Yes |
| Processor architecture |
ARM Cortex A78 + ARM Cortex A55 |
| Processor cores |
8 |
| User memory |
64 GB |
| RAM capacity |
16 GB |
| Graphics card family |
ARM |
| Other features |
| Country of origin |
China |
Features
BenQ RP8605. Display diagonal: 2.18 m (86"), Working area: 1895 x 1066 mm, Display brightness: 450 cd/m². Operating system installed: Android, Processor architecture: ARM Cortex A78 + ARM Cortex A55, User memory: 64 GB. Speaker power: 25 W, Subwoofer RMS power: 20 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Interface: HDMI, USB connector type: USB Type-A, USB Type-B, USB Type-C, DisplayPort version: 1.2a
Product Description
The BenQ Board Pro RP05 is a Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, Ultra Precision IR touch, top-of-the line hardware and software, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
