| Weight & dimensions |
| Width |
263.9 mm |
| Depth |
280.8 mm |
| Height |
188.2 mm |
| Power |
| Power supply location |
Built-in |
| Power supply unit (PSU) capacity |
250 W |
| Number of power supply units |
1 |
| Power consumption (typical) |
60.794 W |
| Power consumption (HDD standby) |
41.897 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Fan voltage |
12 V |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Jumbo frames support |
Yes |
| iSCSI support |
Yes |
| Wake-on-LAN ready |
Yes |
| Link aggregation |
Yes |
| Load balancing system |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| WLAN adapter supported |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| PCI Express x4 (Gen 3.x) slots |
2 |
| Memory |
| Internal memory |
8 GB |
| Internal memory type |
DDR4 |
| Maximum RAM supported |
64 GB |
| Memory slots |
2 |
| Memory form factor |
SO-DIMM |
| Flash memory |
5000 MB |
| Processor |
| Processor family |
ZhaoXin KaiXian KX-6000 |
| Processor manufacturer |
ZhaoXin |
| Processor model |
KX-U6580 |
| Processor frequency |
2.5 GHz |
| Processor cores |
8 |
| On-board graphics card model |
ZhaoXin C960 |
| Storage |
| Storage drives installed |
Yes |
| Total installed storage capacity |
36 TB |
| Number of storage drives installed |
6 |
| Number of storage drives supported |
6 |
| Installed storage drive type |
HDD |
| Supported storage drive types |
HDD & SSD |
| Storage drive capacity |
6 TB |
| Storage drive interface |
Serial ATA II, Serial ATA III |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, Serial ATA II, Serial ATA III |
| Storage drive sizes supported |
2.5,3.5,M.2 |
| Number of M.2 (M & B) slots |
2 |
| RAID levels |
0, 1, 5, 6, 10, 50, JBOD |
| Online RAID migration |
Yes |
| Online RAID expansion |
Yes |
| RAID rebuild |
Yes |
| Hot-swap drive bays |
Yes |
| Supported file systems |
FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Bad block scan |
Yes |
| Disk roaming |
Yes |
| Packaging content |
| Cables included |
AC, LAN (RJ-45) |
| Power cables quantity |
1 |
| Number of screws |
36 |
| Performance |
| Type |
NAS |
| Device class |
Small & Medium Business |
| Backup function |
Yes |
| Backup features |
Cloud, USB drive, iSCSI LUN |
| Buzzer |
Yes |
| Multilingual support |
Yes |
| Number of users |
2000 user(s) |
| Noise level |
20.2 dB |
| Third-party support |
Yes |
| Snapshot |
Yes |
| Share folder access right management |
Yes |
| Security algorithms |
256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSL/TLS |
| Access Control List (ACL) |
Yes |
| Reset button |
Yes |
| On/off switch |
Yes |
| Built-in FTP server |
Yes |
| Browser supported |
Safari, Google Chrome, Mozilla Firefox |
| System log |
Yes |
| Hot spare |
Yes |
| Password authentication |
Yes |
| Disk scan |
Yes |
| S.M.A.R.T. support |
Yes |
| Share folder |
AFP, CIFS/SMB, FTP, WebDAV |
| USB copy function |
Yes |
| Design |
| Chassis type |
Tower |
| Cooling type |
Active |
| Product colour |
Black |
| Number of fans |
3 fan(s) |
| Fan diameter |
8 cm |
| LED indicators |
HDD, LAN, SSD, Status, USB |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Logistics data |
| Harmonized System (HS) code |
84714100 |

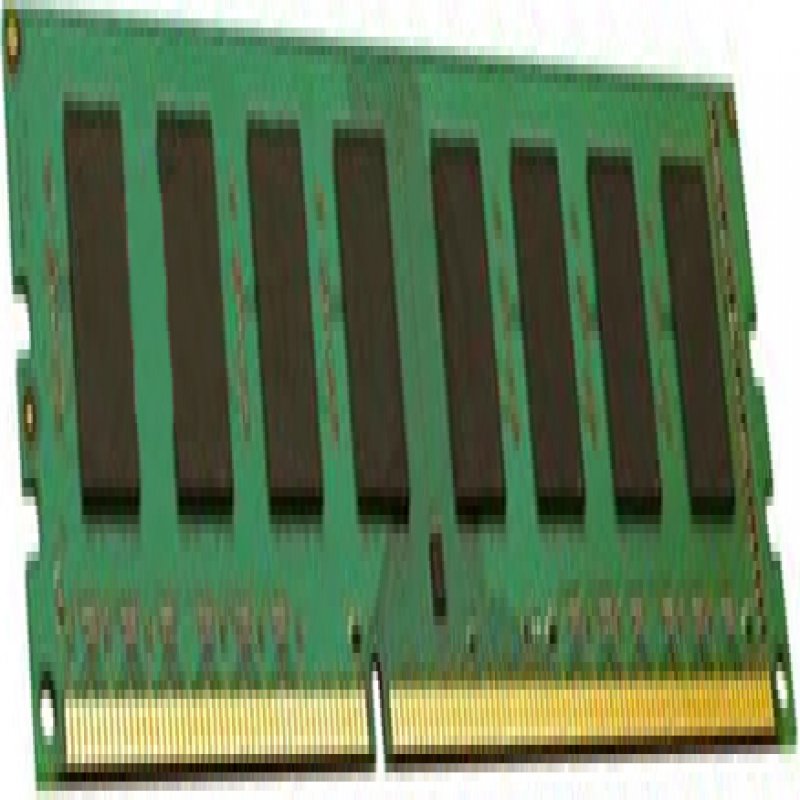

| Features |
| Internal memory |
4 GB |
| Memory layout (modules x size) |
1 x 4 GB |
| Internal memory type |
DDR3 |
| Memory clock speed |
1333 MHz |
| Component for |
PC/Server |
| Memory form factor |
240-pin DIMM |
| ECC |
Y |
| Buffered memory type |
Registered (buffered) |
| CAS latency |
9 |
| Memory ranking |
2 |
| Memory type |
PC3-10600 |
| Software |
| Operating system installed |
QNAP Turbo System |
| Operating system version |
4.5.3 |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Packaging data |
| Package type |
DIMM |
